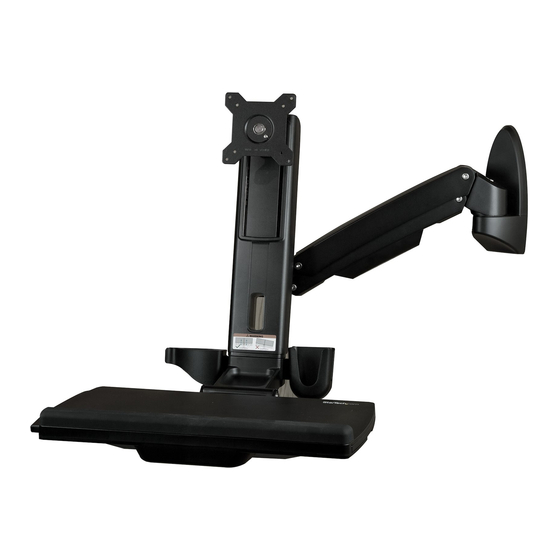

- Page 1 Sit-Stand Desk Wall Mount - Single Monitor *Actual product may vary from photos User Manual SKUs: WALLSTS1 (Black) WALL-WORKSTATION-S (Silver/White) For the latest information and specifications visit www.StarTech.com/WALLSTS1 www.StarTech.com/WALL-WORKSTATION-S Manual Revision: 10/31/2022...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Safety Statements
Säkerhetsåtgärder • Installation och/eller montering får endast göras av behöriga yrkespersoner och enligt gällande lokala förordningar för säkerhet och byggnormer. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Warning Statements
• Se till att du monterar produkten i enlighet med instruktionerna. • Läs hela manualen och se till att du förstår instruktionerna innan du börjar montera och använda produkten. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 • Geef kinderen geen toestemming om op dit apparaat te klimmen of dit product zonder goed toezicht te gebruiken. • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 • 本製品に小さなお子様が乗って遊ばないようにして下さい。 お子様が使用 する際には、 適切な監視を怠らないようにして下さい。 • 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 • 本製品を組み立てる際、 ネジを締めすぎないようにして下さい。 ネジを締め ているうちに手応えを感じたら、 締めるのを止めてください。 • 本製品は、 二人がかりでの組み立てを想定しています。 手助けなしに単独で 組み立てと設置を行わないで下さい。 • バネの弾性反動に注意 ！ 本製品にはスプリング機構が搭載されており、 作動 させるとアセンブリ部品やディスプレイが反動で上方向に大きく動く場合が あります。 スプリングアームを取り扱う際、 またはスプリングアームに近接す To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 7 • A seguito dell’assemblaggio e dell’utilizzo di questo prodotto, assicurarsi che le condizioni e la tenuta delle viti di montaggio siano controllate regolarmente e regolate o sostituite, se necessario. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 8 • Leia todo o manual e certifique-se de que entende as instruções antes de começar a montar e a utilizar este produto. • Não exceda a capacidade de peso deste produto. Sobrecarregar este produto To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 9 • No permita que los niños se suban a este producto o que lo utilicen sin la debida supervisión de un adulto. • El uso de este producto es solo para interiores y no debe utilizarse en To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support viii...
- Page 10 • Achten Sie bei der Montage des Produkts darauf, die Schrauben nicht zu fest anzuziehen. Sobald Sie beim Anziehen der Schrauben auf Widerstand stoßen, stellen Sie das Anziehen ein. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 11 • Nach der Montage und dem Einsatz dieses Produkts muss sichergestellt werden, dass der Zustand und der feste Sitz der Montageschrauben routinemäßig überprüft und bei Bedarf angepasst oder ersetzt werden. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 12: Identify The Hardware Revision
Note: Not all products will have this sticker. If it is missing, the revision is 01. Figure a Depending on the Hardware Revision, the assembly instructions have slight variations that will be detailed on that specific step. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Table Of Contents
IMPORTANT! - Maintenance After Assembly (Hardware Revisions 01 to 02 only) ..... 13 Install the Mouse and Handheld Scanner Holders (Hardware Revision 03 and higher only) ..................14 Attach the Column to the Keyboard Tray ..................15 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 Counterbalance the Weight of the Workstation ................31 Adjust the Monitor Swivel Tension ..................... 32 Extend the Mouse Tray ..........................33 Clean the Keyboard Tray Components ....................34 Warranty Information ................35 Limitation of Liability ................35 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Product Diagram
Product Diagram Keyboard Tray Monitor Arm Mouse and Handheld VESA Monitor Mount Scanner Holders Column Mouse Tray Wall Plate To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 16: Product Dimensions
Product Dimensions Top View 672 mm (26.4 in.) 395 mm (15.5 in.) 1073 mm (42.2 in.) Wall Plate - Side and Rear View 16 mm (0.6 in.) 79 mm (3.1 in.) 13 mm (0.5 in.) 50 mm (2 in.) 7 mm (0.3 in.) -
Page 17: Side View
8 mm to 217 mm 8 mm to 217 mm 449 mm (17.7 in.) (0.3 in. to 8.5 in.) (0.3 in. to 8.5 in.) 668 mm (26.3 in.) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 18: Product Information
Display size up to 27” or 34” for ultrawide (landscape only) • Tools Phillips Head Screwdriver x 1 • Ratchet • ¹/₄ inch Drive • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 19: Package Contents (Hardware Revisions 03 And Higher)
Package Contents (Hardware Revision 03 and higher) VESA Monitor Keyboard Tray Monitor Arm Column Mount Qty: 1 Qty: 1 Qty: 1 Qty: 1 M4 x 10 mm Adhesive Strip M6 x 8 mm Wall Plate Screws Screw Qty: 2 Qty: 1 Qty: 4 Qty: 1 M8 x 30 mm... - Page 20 2.5 mm Hex Key 5 mm Hex Key Screws Qty: 1 Qty: 1 Qty: 1 Qty: 2 Mouse and Handheld Scanner Holders User Manual Qty: 1 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 21: Package Contents (Hardware Revision 01 And 02 Only)
Package Contents (Hardware Revisions 01 and 02 only) VESA Monitor Keyboard Tray Monitor Arm Column Mount Qty: 1 Qty: 1 Qty: 1 Qty: 1 M4 x 10 mm Adhesive Strip M6 x 8 mm Wall Plate Screws Screw Qty: 2 Qty: 1 Qty: 4 Qty: 1... - Page 22 Qty: 1 Qty: 1 Qty: 4 6 mm Hex Key User Manual 2.5 mm Hex Key 5 mm Hex Key Qty: 1 Qty: 1 Qty: 1 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 23: Installation
Caution! Attaching the wall plate to the wall requires two people. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 24 (Optional - for mounting into concrete) Insert the Concrete Anchors ( x 4) into the Screw Holes ( x 4). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 25: Attach The Monitor Arm To The Wall Plate (Hardware Revisions 01 And 02 Only)
Note: Installation steps on page 12. Users of Hardware Revision 03 and higher continue to Page 6 mm Hex Key Monitor Arm M8 x 20 mm Metal Plastic Washer Wall Figure 2 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 26: Attach The Monitor Arm To The Wall Plate (Hardware Revision 03 And Higher)
03 and higher) through the Washers and into the Mounting Peg, located on the Wall Plate, and tighten, using the 6 mm Hex Key. (Figure 2 and Figure 2a) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 27: Important! - Maintenance After Assembly (Hardware Revisions 01 To 02 Only)
Periodic inspection of this M8 x 20mm Screw is required. If the M8 x 20mm Screw has loosened due to frequent movement, tighten the M8 x 20 mm Screw using the 6 mm Hex Key. (Figure c) Figure c To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 28: Install The Mouse And Handheld Scanner Holders Hardware Revision 03 And Higher Only
Back of the Keyboard Tray using the M3 x 8 mm Screws (x 2) and a Phillips Head Screwdriver. Continue to Page 13. (Figure b) Keyboard Tray Mouse and Handheld M3 x 8 mm Scanner Holders Screws Figure b To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 29: Attach The Column To The Keyboard Tray
Insert the M6 x 12 mm Screws (x 4) through the Assembly Holes, located in the Keyboard Tray, and into the Column and tighten, using the 5 mm Hex Key. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 30: Attach The Column To The Monitor Arm
Column. (Figure 4) Note: Do not tighten the M6 x 10 mm Screw and ensure 4 to 5 mm of space is left between the Plate and the Screw. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 31 Hook the M6 x 10 mm Screw, attached to the Column, into the Key-Shaped Hole, located at the top of the Plate on the Monitor Arm. (Figure 5) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 32 Insert the second and third M6 x 10 mm Screws into the holes, located on the Plate on the Monitor Arm and tighten, using the 5 mm Hex Key. (Figure 6) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 33: Attach The Vesa Monitor Mount To A Monitor
Note: If using an ultrawide monitor, refrain from rotating to the portrait position. The sides of the monitor could collide with the Keyboard Tray and damage the monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 34 Monitor Mount and into the Monitor and tighten, using a Phillips Head Screwdriver. (Figure 8) Warning! Do not over-tighten the Screws. If resistance is experienced while tightening the Screws, stop tightening. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 35: Attach The Monitor To The Column
Hook the back of the VESA Monitor Mount onto the Plate, located on the Column. (Figure 9) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 36 Insert the M6 x 8 mm Screw through the Mounting Tab, located on back of the VESA Monitor Mount and into the Plate, located on the Column and tighten, using the 5 mm Hex Key. (Figure 10) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 37 Top Cover Wall Plate Bottom Cover Figure 11 Slide the Top Cover and the Bottom Cover onto the Wall Plate, until each one clicks into place. (Figure 11) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 38: Attach The Adhesive Strip To The Keyboard
Remove the Plastic Backing from the second Adhesive Strip and stick it to the surface of the Keyboard Tray so that it is aligned with the strip located on the Keyboard. (Figure 12) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 39: Route The Cables
Cable Cover off of the Monitor Arm. Caution! Be careful not to snap off the tabs of the Cable Cover during removal. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 40 Route the Cables along the inside of the Cable Cover. (Figure 13) Squeeze the tabs, located at the top of the Cable Cover, and gently slide down and push the Cable Cover into the Monitor Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 41: Operation
Failure to do so may result in property dam- age and/or serious personal injury. Monitor 5 mm Hex Key Figure 14 Disconnect all Cables attached to the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 42: Adjust The Tilt Angle Of The Monitor
2.5 mm Hex Key Figure 15 Adjust the Screw, located in the top of the VESA Monitor • Mount, to increase or decrease the tilt angle of the Monitor. (Figure 15) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 43: Adjust The Tilt Angle Of Keyboard Tray
0° to 90°. (Figure 16) Note: If rotating the Keyboard Tray on a steep angle, place the Mouse in the Mouse and Handheld Scanner Holders to stow it away. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 44: Counterbalance The Weight Of The Monitor
5 mm Hex Key to turn the Screw in the top of the Column to adjust the tension of the One-Touch Height Adjustment Spring. (Figure 17 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 45: Counterbalance The Weight Of The Workstation
Ratchet with the 8 mm Socket to turn the Screw in the hinge of the Monitor Arm to adjust the tension of the One-Touch Height Adjustment Spring. (Figure 18) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 46: Adjust The Monitor Swivel Tension
6 mm Hex Key Adjustment Screw Figure 19 Adjust the Adjustment Screw, located on the base of the Monitor Arm, to increase or decrease the Swivel effort. Figure 19 (Figure 19) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 47: Extend The Mouse Tray
Tray by Pushing it in. In order to extend the Mouse Tray towards one side or the other, the Mouse Tray must be on its initial center position. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 48: Clean The Keyboard Tray Components
Keyboard Tray, and pull the corresponding Extension off the Keyboard Tray. (Figure 22) Clean the Plastic Wrist Rest and Extensions in Warm Water mixed with a Non-abrasive Plastic-safe Cleaner. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 49: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 50 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 51 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 52 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.
