Specification:
Free Speed
Capacity Bolt Size
Max. Torque
Working Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

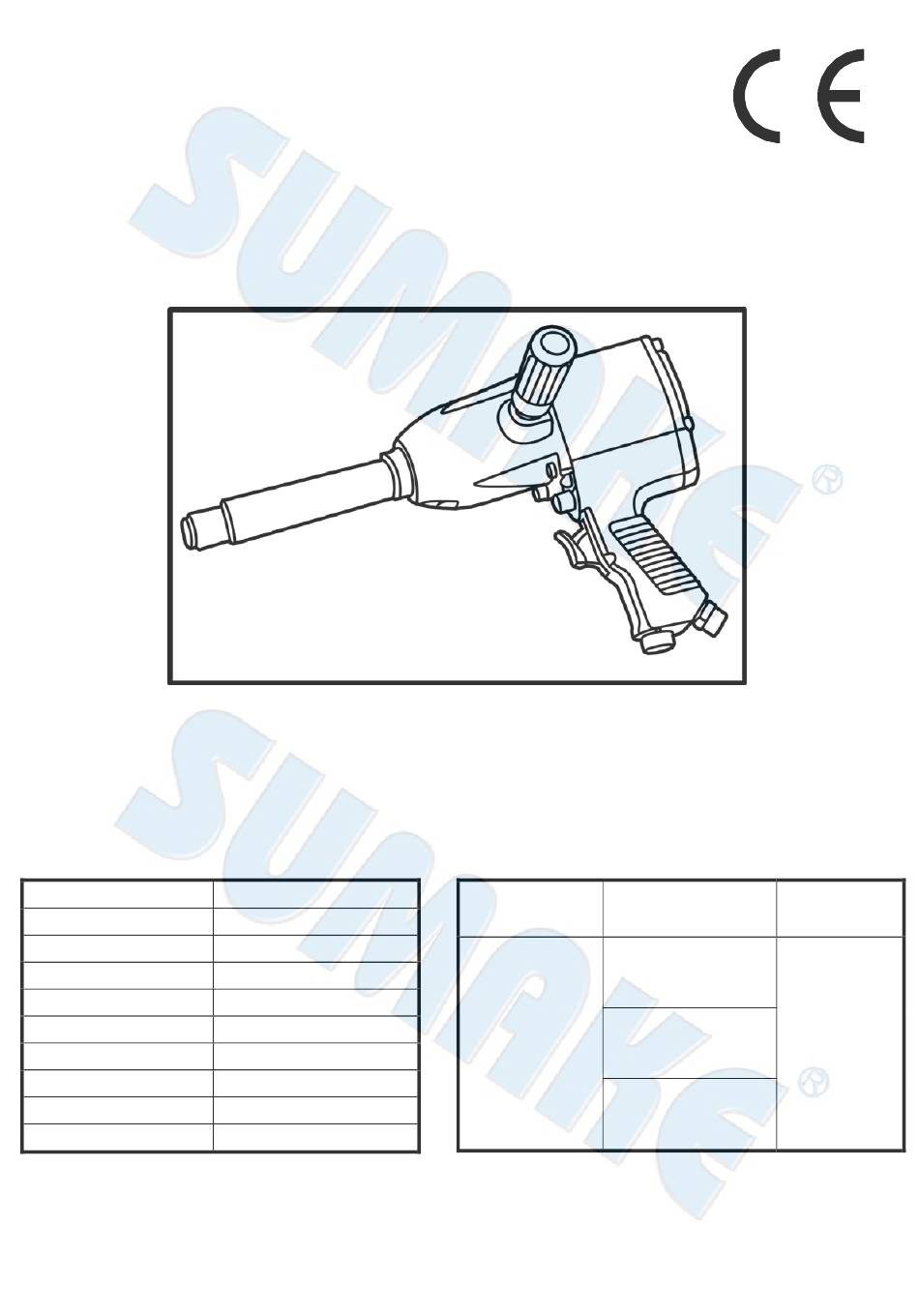

1" Impact Wrench W/6" Anvil
(Pin-Clutch)
ST-5584P-6
3,500 r/min
1-1/2" (M38)
1300 ft-lb (1763 N-m)
900 ft-lb (1220 N-m)
25 CFM (708 L/min)
14" (360 mm)
1/4" (6.35 mm)
1/2" (13 mm)
90 psi (6.3 bar)
12.7 lbs (5.8 kg)
PNEUMATIC TOOLS
Noise and Vibration:
Vibration
EN ISO 28927-2
No Load:
4.5 m/s²
Uncertainty
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
load: 91.8 dB(A)
Sound power level
load: 102.8 dB(A)
Uncertainty
²
K= 3dB
ST-5584P-6-S-1804E-YCF
Remark
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-5584P-6
Summary of Contents for Sumake ST-5584P-6
- Page 1 Air Hose (I.D.) 1/2” (13 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 12.7 lbs (5.8 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-5584P-6-S-1804E-YCF...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 1" IMPACT WRENCH W/6" ANVIL (PIN-CLUTCH) Model/ Serial No.： ST-5584P-6 to which this declaration applies, complies with these normative documents: ... - Page 3 Sumake is a manufacturer and exporter of air largest torque output. tools since established. We have devote all our 1. The power toll shall not be used in potentially Tool 3.3 Rotating Direction...
-
Page 4: Parts List
ST-5584P(-6) 1" IMPACT WRENCH W/2"(6") ANVIL (PIN-CLUTCH) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5584P-01 Oil Seal 5584P-27 Ball Bearing 5584P-02 Screw 5584P-28 Oil Seal 5584P-04 Hammer Case 5584P-29 O-Ring 5584P-05 O-Ring 5584P-30 Front End Plate 5584P-06 Exhaust Deflector 5584P-31 Rotor Blade... -
Page 5: Impact Wrench
IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd. - Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
-
Page 8: Risk Of Injury
General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
