CHAPTER 4– DATA COMMUNICATIONS INTERFACE
4.2.4.2 COM3 – RS232 – PTB Protocol Host Ticket Printer/Data Logger
A Special variant of the ticket printing equipment uses the PTB protocol.
A PTB printer can be connected to the MultiLoad III/RCU III EX Hardware via RS232 on COM3.
MultiLoad III/RCU III
GND
DSR
DCD
37
MultiLoad III/RCU III Hardware - Explosion Proof (EX) Installation Guide
COM 3
RX
CTS
TX
RTS
DTR

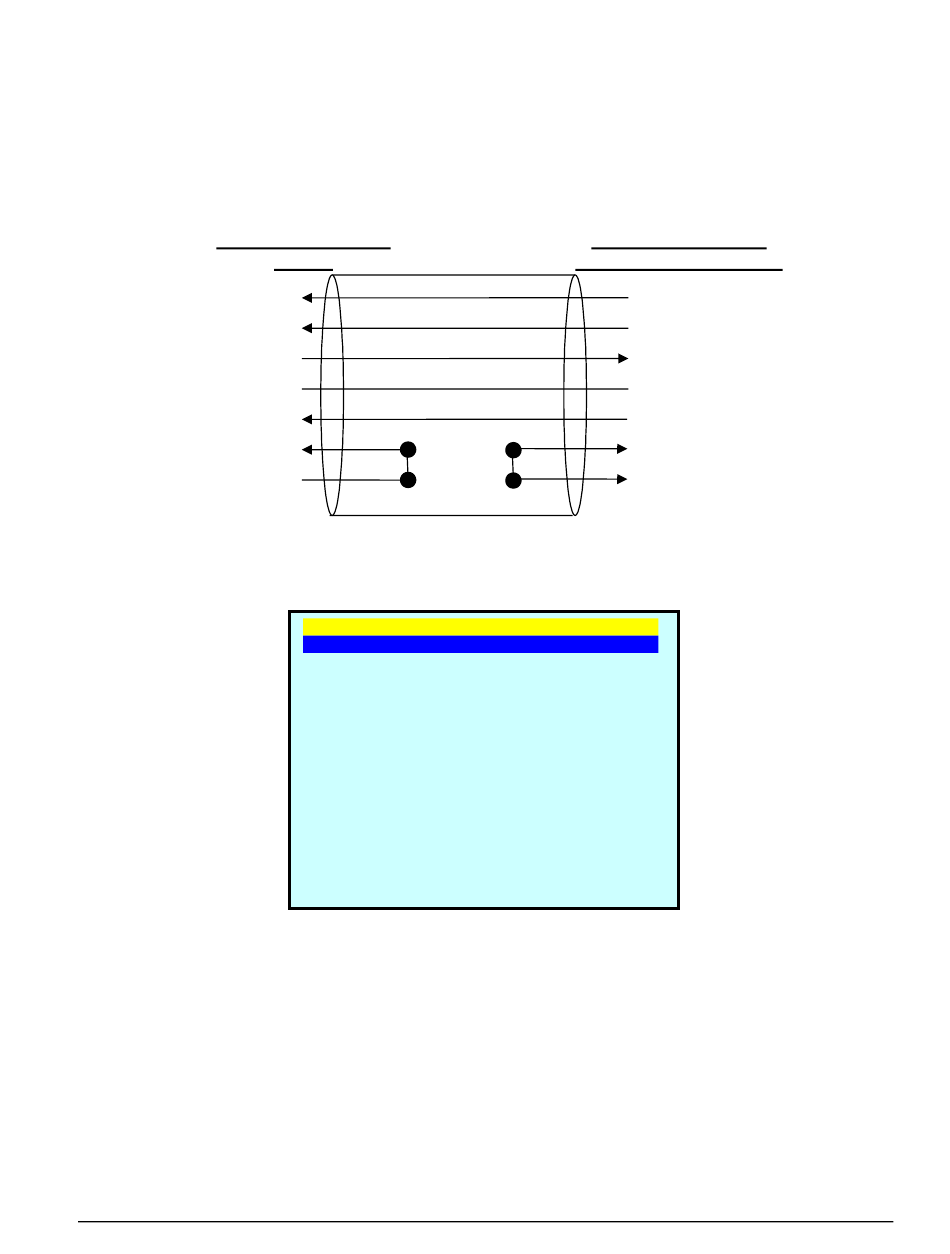

Figure 4.12 PTB Printer Connection with Handshake
COMMUNICATION SETUP COM (3)
Baud Rate:
Parity :
Data Bits :
Stop Bits :
Multidrop
Type :
Down
Figure 4.13
PTB Printer/ Logger
RS232 DB25 Connector
7 Data
1 Stop
Single
PTB
Up Exit Ok
PTB Printer Configuration
2 – TX
20 - DTR
3 – RX
7 – GND
4 – RTS
5 – CTS
6 – DSR
8 – DCD
.
9600
Even
