CHAPTER 3– INSTALLING THE MULTILOAD III/RCUIII EX HARDWARE
Equipment Battery
A battery is installed into the main board for retention of time and date only. This battery should last
more than ten years. This battery can be replaced by the end user but must be replaced with
Matsushita Electric, model BR2032 only. The battery must be installed with the positive battery side
down and the negative battery side up.

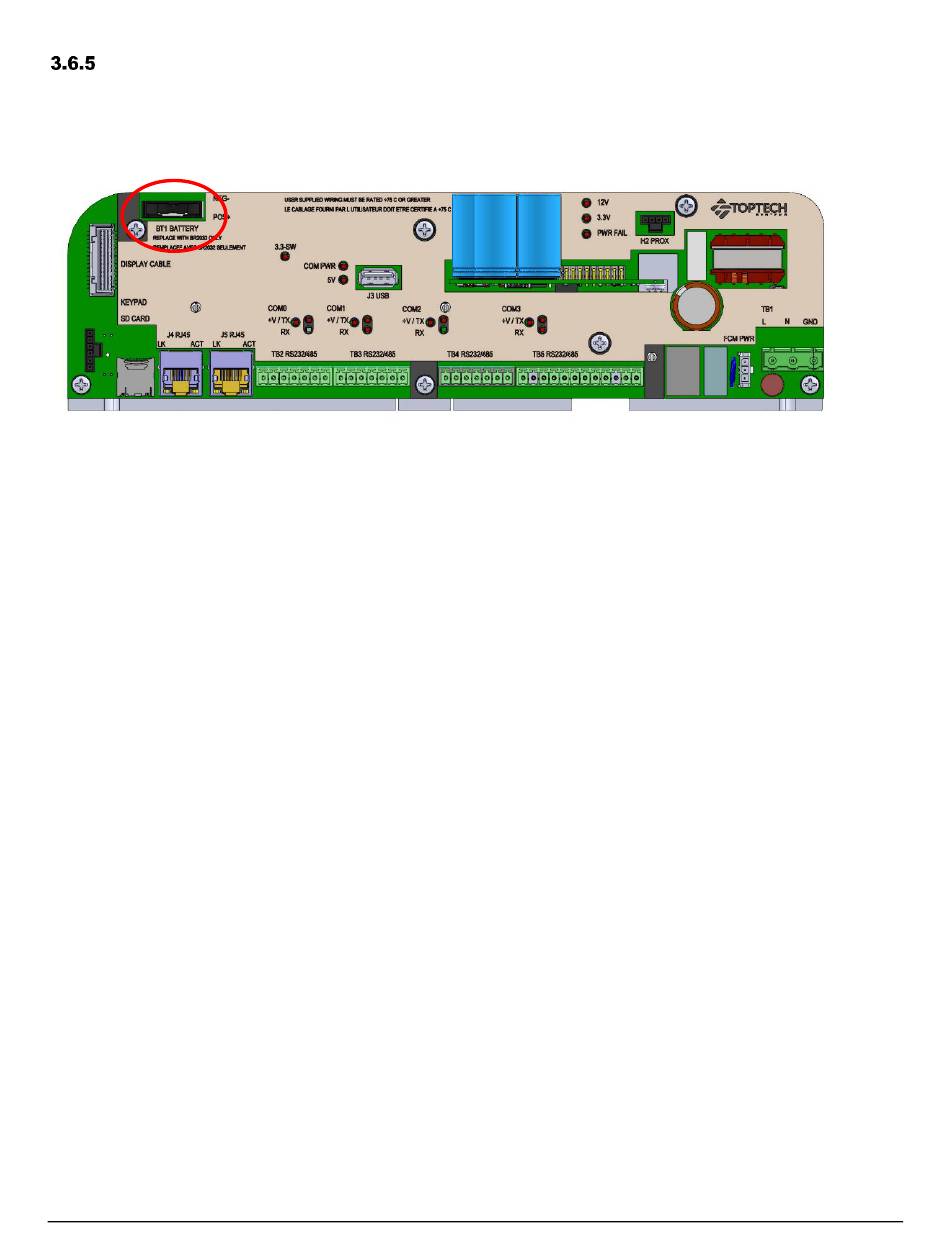

Figure 3.4
MultiLoad III/RCU III EX Hardware Main Board Battery (BT1)
27
MultiLoad III/RCU III Hardware - Explosion Proof (EX) Installation Guide
