Alula RE307 Manual

Resolution Compatibles

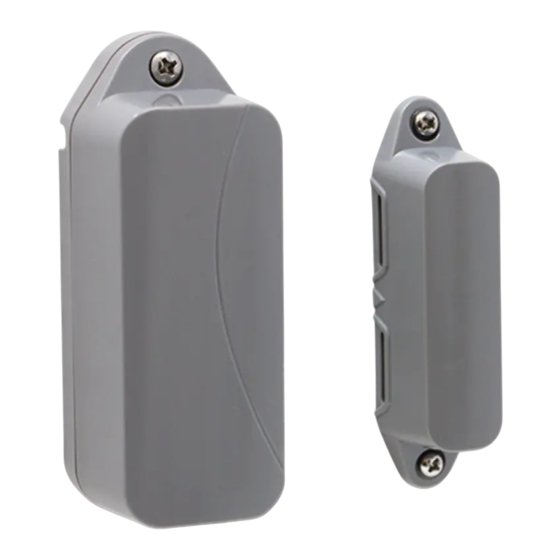

Outdoor Door/Window Sensor
transmitter with industry-leading wireless range and battery
life. It is designed to sense the opening and closing of
gates, sheds, and other outdoor open/close applications.
An alarm signal will be transmitted when the magnet is
pulled away from the sensor, or when an external contact is
opened.
Features
• Industry-leading wireless range and battery life
• Wide magnetic gap distance
• Two built-in external contact zones
• Secure encrypted wireless transmissions
• IP67 waterproof enclosure rating
• 5-year warranty
Enroll
all variants by entering their serial numbers into the
security panel. Alternatively, the sensor can be enrolled in
one of the following ways:
DSC®, Qolsys® and Interlogix® variants are enrolled by
placing the panel into enrollment mode, and then pulling
the battery tab or tampering the device.
Honeywell® and 2GIG® variants are enrolled by placing
the panel into wireless enrollment mode and either
removing the battery tab while holding the tamper, or by
tripping the device three times. These sensors must be
enrolled as a "Loop 2" sensor.
Enrollment of External Contacts
• Interlogix External 1 replaces reed switch if installed.
Interlogix External 2 is enrolled by powering up the
sensor while holding the tamper.
• Honeywell & 2GIG External 1 & 2 should be enrolled
as Loop 1 and Loop 3, respectively. Enroll each
external by tripping it 3 times.
• DSC Externals are enrolled by tripping the desired
external while the device is tampered.
Install
by first attaching the mounting plate and magnet to a
door, window, or fence using screws (provided) or cable ties
(not provided).
Mounting Tips
• Face of mounting plate marked "Flat Mount" is to be
mounted against flat surfaces (e.g. square wood post).
• Face of mounting plate marked "Pole Mount" is to be
mounted against round surfaces (e.g. fence post).
Use the panel installation guide to verify proper system setup.
Outdoor Door/Window Sensor
is a full-featured security
Mounting Screw Holes
Magnet
Alignment Marks
Cover-Securing Screw Hole
