Alula RE359 Manual

Resolution Compatibles

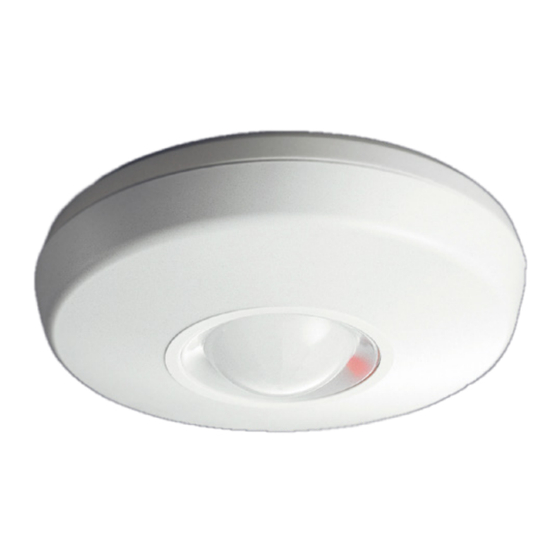

360 PIR Motion Sensor
It is a commercial battery-powered ceiling mount sensor
with a 360 degree detection range.
Features
• 360° detection range with 62 distinct detection zones
• Range up to 40 feet in diameter
• Selectable pulse count 2 or 4
• Designed for commercial applications
• 5 year warranty
Enroll
all variants by entering their serial numbers into the
security panel. Alternatively, the sensor can be enrolled in
one of the following ways:
DSC®, Qolsys® and Interlogix® variants are enrolled by
placing the panel into enrollment mode, and then pulling
the battery tab or tampering the device.
Honeywell® and 2GIG™ variants are enrolled by placing
the panel into wireless enrollment mode and either
removing the battery tab while holding the tamper, or by
tripping the device three times. These sensors must be
enrolled as a "Loop 1" sensor.
Install
by screwing two #8 screws into the ceiling, leaving
1/4 inch of thread exposed. Next, slide the back plate over
the screws and rotate the back plate. Screw the #8 screw
through the wall tamper into the ceiling, ensuring that the
wall tamper screw is attached to something solid. Tighten
all screws until snug. Then, insert the square nut into the
square slit of the cover and start threading the #4 screw into
the side of the cover. Close the cover and conduct a walk
test. After testing, take the unit out of walk test mode and
close the cover again. Finally, finish threading the #4 screw
until it is snug.
Mounting Tips
• Avoid direct sunlight
• Avoid facing directly to AC or heating vents
• Avoid vapor or high humidity
• Avoid curtains, screens, etc. from blocking detection
• Do not install outdoors
Use your panel's installation guide to verify proper system setup.
360 Motion Sensor
alarms when motion is sensed.
