Alula RE610P-OS Install Manual

Occupancy Sensor alarms when motion is sensed or when
the external contact is opened. It is battery powered
and requires no installation tools. A Pyroflex™ sensor
with HighBar™ signal processing allows for industry-
leading pet immunity and catch performance.

Features

• Industry-leading pet immunity and catch performance
• Supports both motion zone and external contact zone
• Mountable on walls or in corners
• 5 year warranty
Enroll by placing the panel into wireless enrollment mode
and then sending an enrollment signal from the motion
sensor. Alternatively, the motion sensor can be enrolled
by scanning its bar code using the Connect+ Installer
app or by entering its 8-character serial number on the
interactive service provider's web portal.
Options for sending an Enrollment Signal
• Remove the battery tab and cover to trip tamper
Install using the included 3M™ VHB™ tape to adhere
the motion sensor on a wall or in a corner. The tape
should be applied to the back when wall mounting or
to the back bevels when corner mounting. Alternatively,
screw-mounting can be done by punching out the screw
mount holes.

Installation Tips

• Mount 7.5 to 9.5 feet from the floor for an optimal
balance between catch performance and pet
immunity.
• Remove the cover and circuit board before trying
to punch out the screw mounting holes.
• Ensure the bug foam stays intact and snug around
the IR sensing element when re-installing the
circuit board.
External Contact
• Use a normally-closed contact because the
motion sensor will transmit an alarm when it sees
the external contact open.
• When enrolling an external contact, use the Add
New Zone on Sensor option using the installer
app or the interactive service provider's web
portal.
• Do not use end-of-line resistors.
Use the panel's installation guide to verify proper system setup.

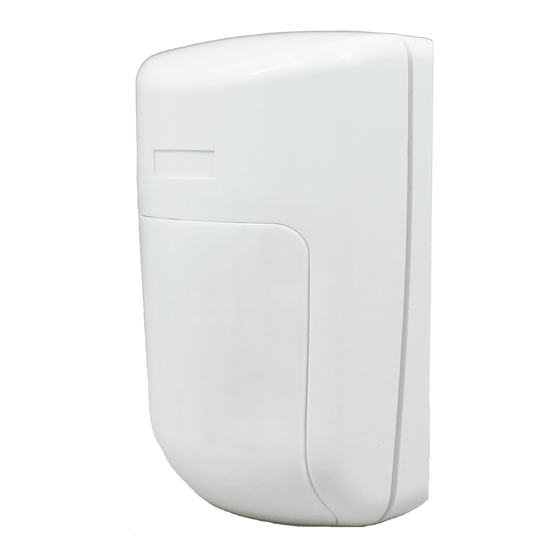

RE610P-OS Indoor Motion Sensor
-Pet Immune Occupancy,
Connect+ Encrypted
™
Mounting Screw Holes
Ceiling
Floor
I
