Alula RE300-5 Quick Start Manual

Resolution Compatibles
The Five Button Fob
remotely control a security system. The buttons can be
configured to arm, disarm, trigger panic alarms, or control
home automation functions.

Features

• Support for 5 button functions
• Low battery indication
• 2 year warranty

Enroll

by placing the panel into wireless enrollment mode
and pressing a fob button. Alternately, the sensor ID
located on the back of the fob can be used to manually
enroll the sensor.

To replace the battery,

the fob and unsnap the back from the cover.

Pro Tips

Optional advanced button commands are sent by
pressing the lights button and another button at
the same time. Advanced button commands are
transmitted on a secondary ID to independently control
two system partitions, trigger different programmable
outputs, and control DSC relay modules. The secondary
ID is the sensor's primary ID with the last digit replaced
by a 1.

Advanced Button Commands

• Lights + Star = Panic on secondary ID
• Lights + Unlock = Disarm on Secondary ID
• Lights + Away = Arm Away on Secondary ID
• Lights + Stay = Arm Stay on Secondary ID
Panic is transmitted by pressing and holding the star
button for more than three seconds.
LED blinks when a button press is transmitted.
Use the panel installation guide to verify proper system setup.

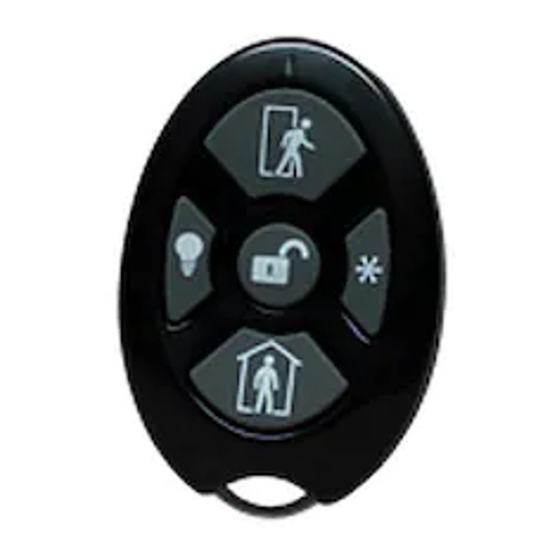

RE300-5 Five Button Fob
DSC Compatible
™
is a portable device used to
remove the screw on the back of
Arm Away
Disarm
Lights
Arm Stay
LED
Screw Screw
I
Aux
