Alula RE611P Quick Start Manual

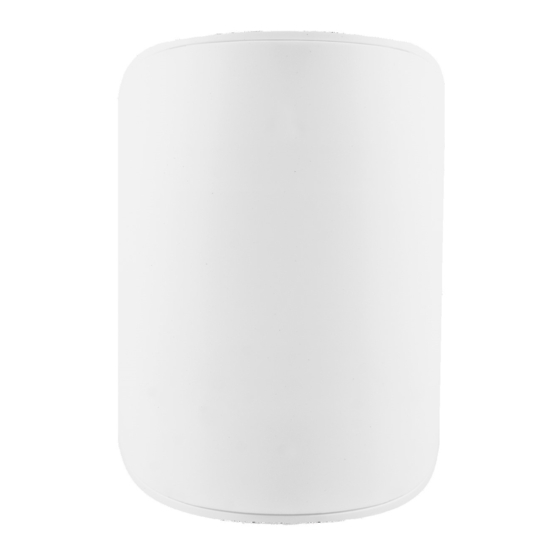

The Pet Immune Indoor Motion Sensor
motion is sensed. It is battery powered and requires no
installation tools.

Features

• Five year battery life
• Quick peel and press mounting
• Mountable on walls or in corners

Enroll

by placing the panel into wireless enrollment mode
and then sending an enrollment signal from the sensor.
Alternatively, the sensor can be enrolled by entering its
8-character serial number in the AlulaConnect™ portal.
Options for sending an Enrollment Signal
• Remove the battery tab
• Remove the cover to trip the tamper

Install

using the included mounting tape to adhere the
motion sensor on a wall or in a corner. Alternatively,
screw mounting can be done by punching out the screw
mounting holes and using the included screws to mount
in the desired location.

Installation Tips

• Mount 7.5 feet from the floor.
• Remove the cover before trying to punch
out the screw mounting holes.
• It is recommended to ensure there is a tight
seal around the mounting holes to prevent
bugs from entering the sensor and causing
false alarms.
During normal operation
if motion is detected. This is done to maximize battery
life. Furthermore, when motion is detected and a signal
is transmitted to the panel, the sensor will not transmit
again for a period of three minutes.
Use the panel installation guide to verify proper system setup.
RE611P Pet Immune Indoor
Motion Sensor, Alula Encrypted
alarms when
the LED will not turn on even
Mounting Screw Holes
Mounting Screw Holes
Cover Securing Screws
I
