Alula RE610P Manual

The Indoor Motion Sensor
or when the external contact is opened. It is battery
powered and requires no installation tools. A Pyroflex
sensor with HighBar
leading pet immunity and catch performance.

Features

• Narrow angle detection
• Detection range adjustability
• IP 55 rated weatherproof enclosure
• 5-year warranty

Enroll

by placing the panel into wireless enrollment mode, and
then removing the cover to send an enrollment signal from
the motion sensor. Alternatively, the motion sensor can
be enrolled by scanning its bar code using the Connect+
Installer App or by entering its 8-character serial number on
the interactive service provider's web portal.

Install

using the included 3M VHB
sensor on a wall or in a corner. The tape should be applied
to the back when wall mounting or to the back bevels when
corner mounting. Alternatively, screw mounting can be
done by punching out the screw mounting holes.

Installation Tips

• Mount 7.5 to 9.5 feet from the floor for an
optimal balance between catch performance
and pet immunity.
• Remove the cover and circuit board before
trying to punch out the screw mounting holes.
• Ensure the bug foam stays intact and snug
around the IR sensing element when re-
installing the circuit board.
External Contact (not evaluated by ETL)
• Use a normally-closed contact because the
motion sensor will transmit an alarm when it
sees the external contact open.
• Do not use end-of-line resistors.
CE installations must use a cover-securing screw.
Use the panel installation guide to verify proper system setup.

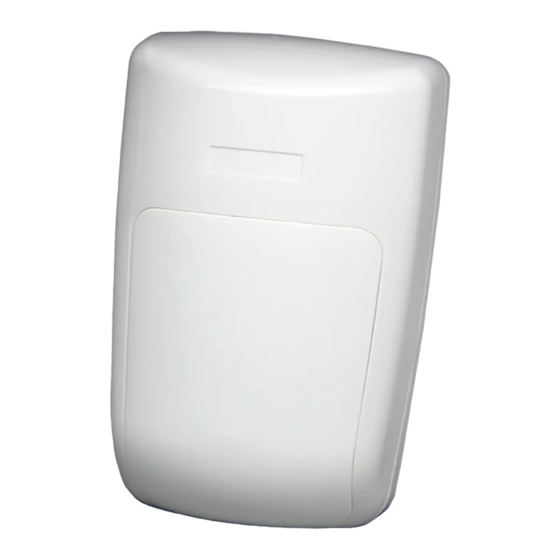

RE610P Indoor Motion Sensor
- Pet Immune, Connect+
alarms when motion is sensed
signal processing allows for industry-
™
tape to adhere the motion
®
™ Encrypted
™
Mounting Screw Holes
Ceiling
Floor
Cover-Securing Screw Hole
I
