Alula RE229 Quick Start Manual

Resolution Compatibles

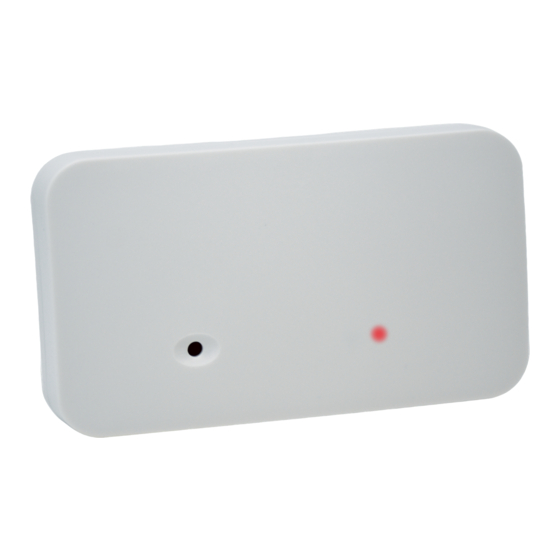

The RE229 Glassbreak
detects the sound of breaking glass and sends alarm
signals to the security panel.

Features

• Variable detection range of up to 20 feet
• Low battery and tamper indication
• VHB™ tape included for easy installation

Enroll

by placing the panel into wireless enrollment
mode and removing the battery tab. Ensure Loop 1
is selected.
Select sensitivity by adjusting the dipswitch. See
table below for sensitivity settings.
SENSITIVITY
MAX
MEDIUM
LOW
LOWEST
Select a mounting location
6.5 feet (2m) and no more than 20 feet (6m) from the
window you wish to protect. Ensure the sensor has
visual line-of-sight to all windows being protected.
Use a glassbreak tester to confirm operation before
permanently mounting using the mounting screws or
VHB tape.
Test the glassbreak
enrollment and installation. Note, any glassbreak
tester can be used.
1. The sensor is in test mode for 5 minutes after
powered. When test mode is active, the LED will
flash once per second.
2. Activate the glassbreak tester near the window
you wish to protect.
3. If an alarm is detected, the LED will flash rapidly
for 2 seconds and an alarm signal will be sent
to the panel. If the sensor does not trip, check
the sensitivity setting or relocate the sensor and
retest.
Use the panel installation guide to verify proper system setup.
RE229 Glassbreak
Honeywell
is a security sensor that
DETECTION SWITCH 1
RANGE
20FT
13FT
8FT
5FT
at a height of at least
to verify operation after
Compatible
®
SWITCH 2
OFF OFF
OFF ON
ON OFF
ON ON
I
Mounting Holes
Sensitivity Switches
