Alula RE209 Quick Start Manual

Resolution Compatibles

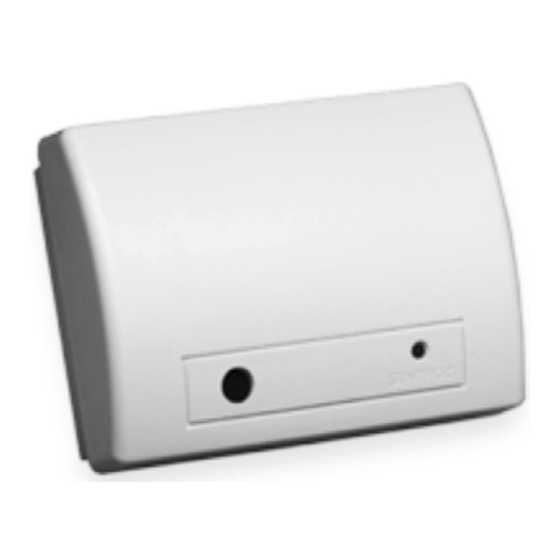

The RE209 Glassbreak
breaking glass and sends alarm signals to the security panel.

Features

• 360 degree omni-directional coverage
• Optional external contact
• Low battery indication
• 5-year warranty

Enroll

by placing the panel into wireless enrollment mode, removing the
battery tab, and pressing the enrollment button.

Sending an Enrollment Signal

• Press the enrollment button to enroll
• Select Loop 1 for Glassbreak

Install

by mounting the sensor at least 3 feet (~1 m), but no more than
25 feet (~7.5m), from a window using the mounting screw locations
or VHB tape. Ensure that the sensor has visual line-of-sight to all
windows being protected.

Glassbreak Testers

and installation (use any glassbreak tester).
• Putting Sensor in Test Mode:
1. Put tester on tempered setting.
2. Hold tester next to the microphone and activate tester.
3. The red LED will light for 4 seconds.
4. Sensor sends alarm to control panel.
• Red LED will blink one time per second for one minute (Test Mode.)
• Every time the sensor hears the tester in Test Mode, the red LED will
light for four seconds and sensor sends alarm.
• In Test Mode:
1. Test sensor distance – holding tester near surface of the
window protected, activate tester with speaker pointed
towards sensor.
2. If the red LED does not light for 4 seconds, relocate sensor
and retest.
3. When location is verified and a good test is confirmed, the
red LED will stop blinking 1 minute after last tester sound
it hears.
NOTE: The pattern recognition technology of this sensor
ignores most false alarm sounds, including glassbreak
testers (except in test mode).

Enroll an External Contact

then selecting Loop 3 for External Contact.
External Contact
• Connect the external contact to terminal B and
the middle terminal
• Use only a normally-closed contact
• Do not use end-of-line resistors
Use the panel installation guide to verify proper system setup.
RE209 Glassbreak
Honeywell
is a security sensor that detects the sound of
should be used to verify operation after enrollment
by pushing the Enrollment button and
Compatible
®
I

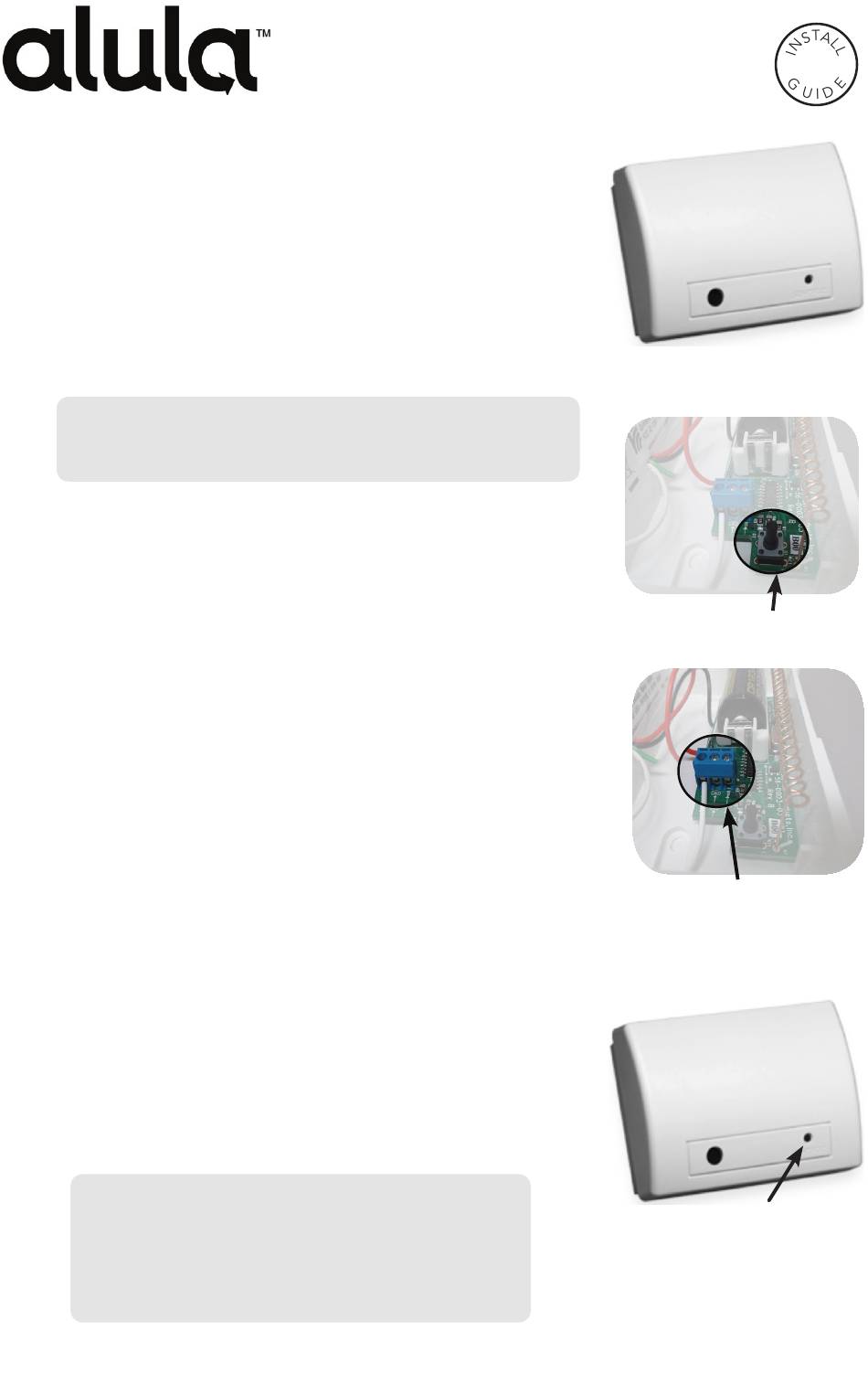

Enroll Button
External Contact
Terminal Block
LED
