GPX3400 and GPX3600 Glass Processors
3.4.1. External Workstation Connections
The splicer workstation is the main component of the glass processor. The PC and gas supply, as well as
peripheral components, are connected to its back panel as illustrated in Figure 2.
Power
The glass processor workstations are powered from an external dual voltage supply. The GPX3400 uses
a 5-pin round connector. The GPX3600 utilizes a 2-pin 24 V and 3-pin 12 V power cord.
Communication
PC – GPX Control communication: RS-232, 9-pin D-Sub connector. Connect to Com 1 on the PC
Camera – PC: IEEE-1394 6 pole connection. Connect to IEEE-1394 on PC
Analog Output: 2 BNC connectors - Analog 1 & Analog 2
Gas
Argon: 1/8" Push fit connector
Vacuum: 5/32" Push fit connector
Page 8

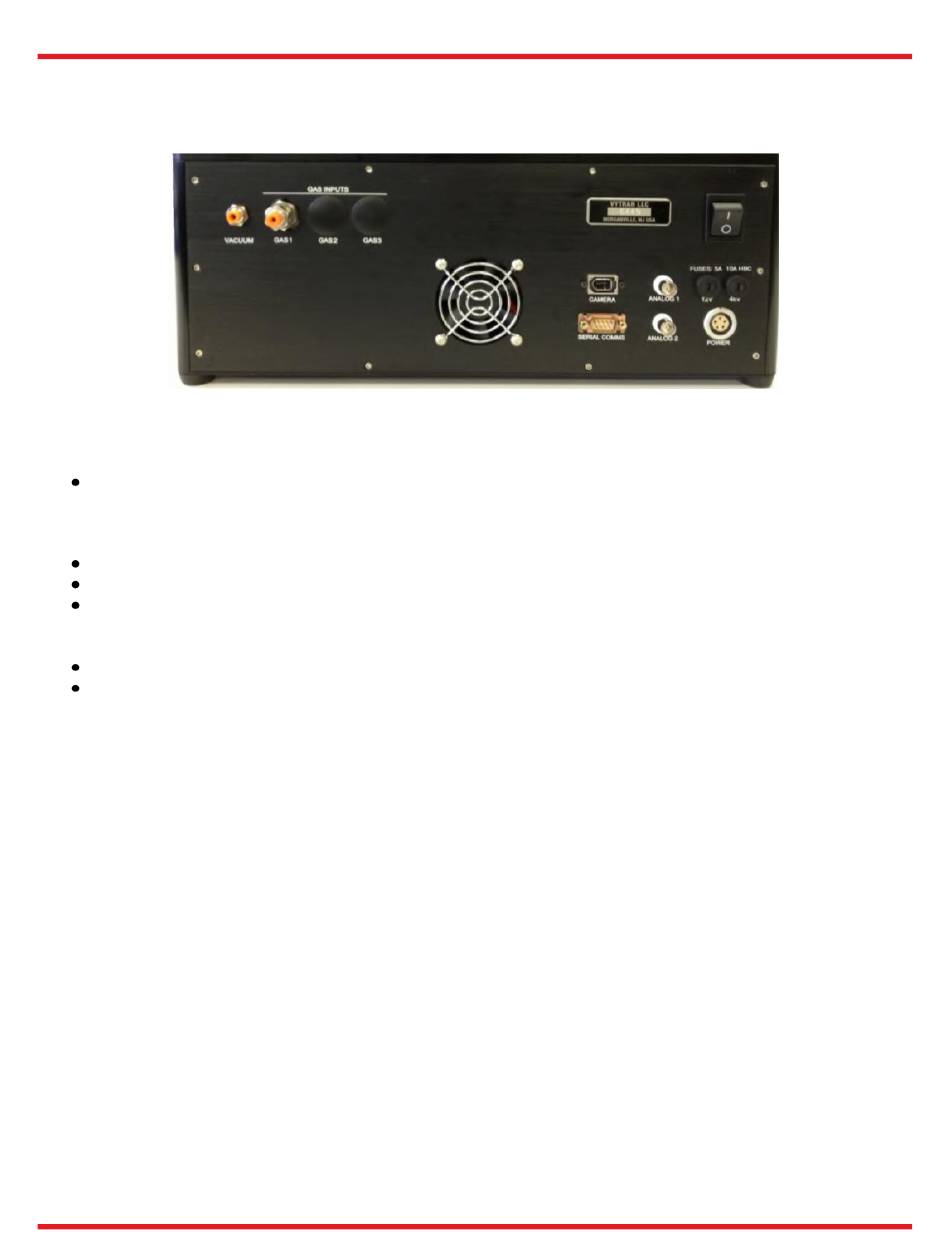

Figure 2
GPX3400 Back Panel Connections
Chapter 3: Description
TTN047532-D02
