GPX3400 and GPX3600 Glass Processors

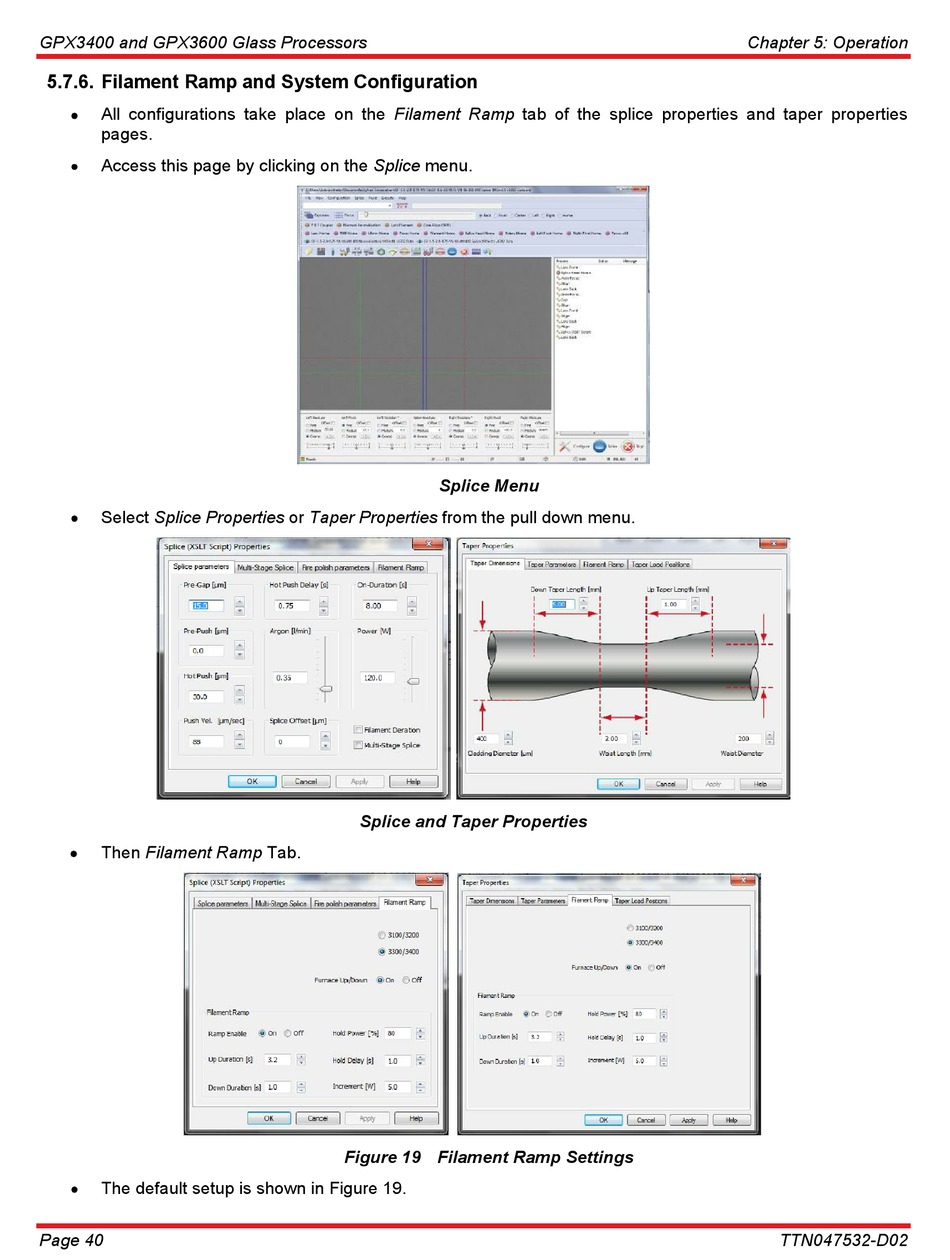

5.7.6. Filament Ramp and System Configuration

All configurations take place on the Filament Ramp tab of the splice properties and taper properties
pages.
Access this page by clicking on the Splice menu.
Select Splice Properties or Taper Properties from the pull down menu.

Then Filament Ramp Tab.
The default setup is shown in Figure 19.
Page 40
Splice Menu
Splice and Taper Properties
Figure 19 Filament Ramp Settings
Chapter 5: Operation
TTN047532-D02
