GPX3400 and GPX3600 Glass Processors
Chapter 4 Setup
1. Unpack PC, monitor and peripherals. Set-up the computer using the included instructions from the
computer manufacturer.
2. Unpack the glass processor workstation and place it on a workbench. Make sure not to damage any
components of the glass processor during handling of the workstation. Lift the unit using the retractable
handles only. Remove the transport block marked with the red "PLEASE REMOVE BEFORE USE" label
from the base of the camera tower and store in a secure location for future use.
3. Connect the external vacuum pump:
4. Connect the muffler to the top connector of the vacuum pump.
5. Connect the bottom connector on the vacuum pump, labeled "VAC" with the included tube to the back of
the glass processor labeled "VACUUM".
6. Connect the camera with the supplied IEEE-1394 Fire Wire cable to the port on the glass processor
labeled "CAMERA" and to the Fire Wire port on the computer. The connector has a directional design so
be sure to orientate the connector correctly. Both the computer and glass processor workstation MUST
be off during this operation, otherwise damage to the CCD camera can occur.
7. Connect the serial communication cable (RS-232) to the outlet in the back of the workstation labeled
"SERIAL COMMS" and to the computer's serial communication port (see instructions from the computer
manufacturer). Tighten the screws on both sides of the cable to secure it in place.
Page 14

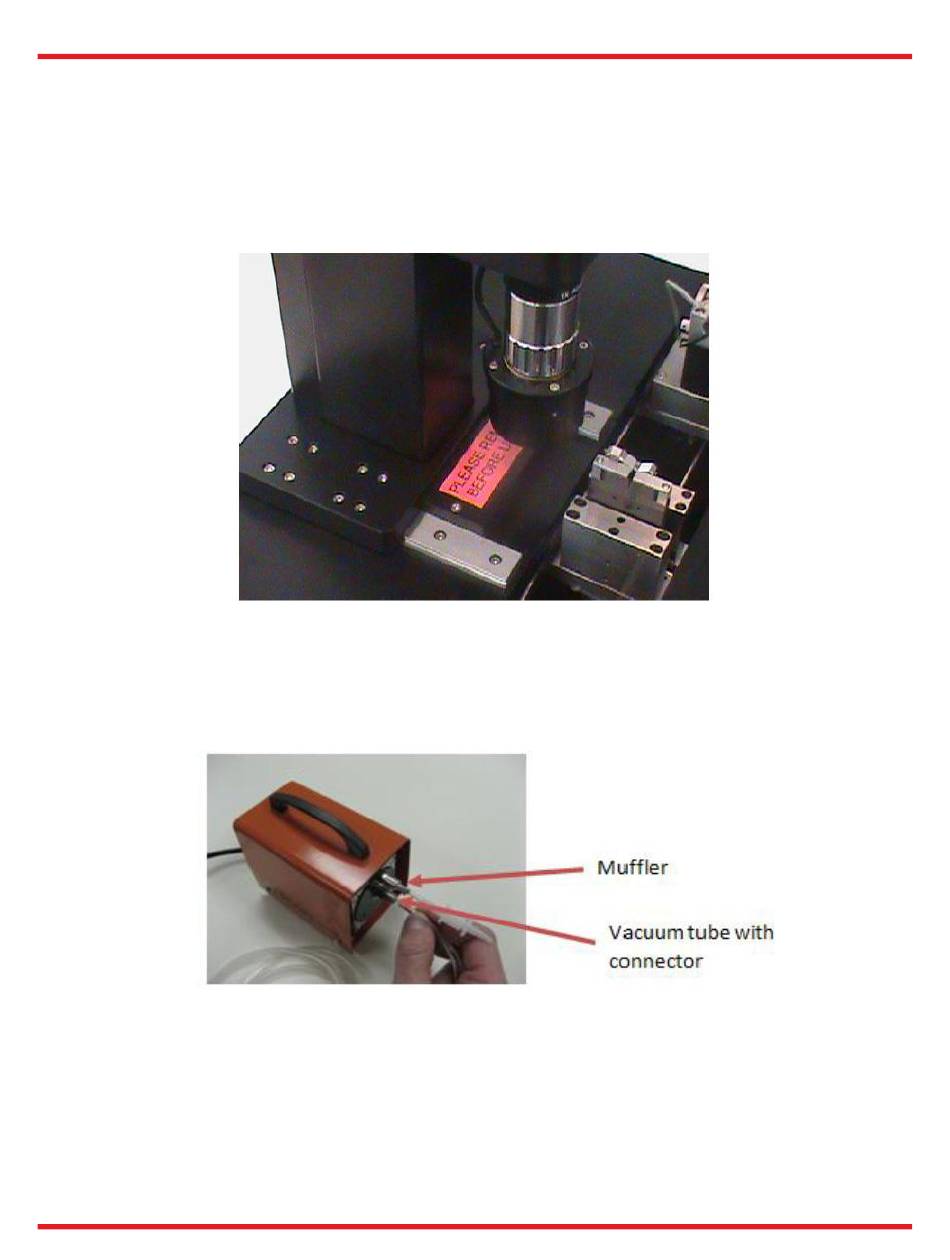

Transport Blocks Located Near Camera Tower
External Vacuum Pump
