GPX3400 and GPX3600 Glass Processors

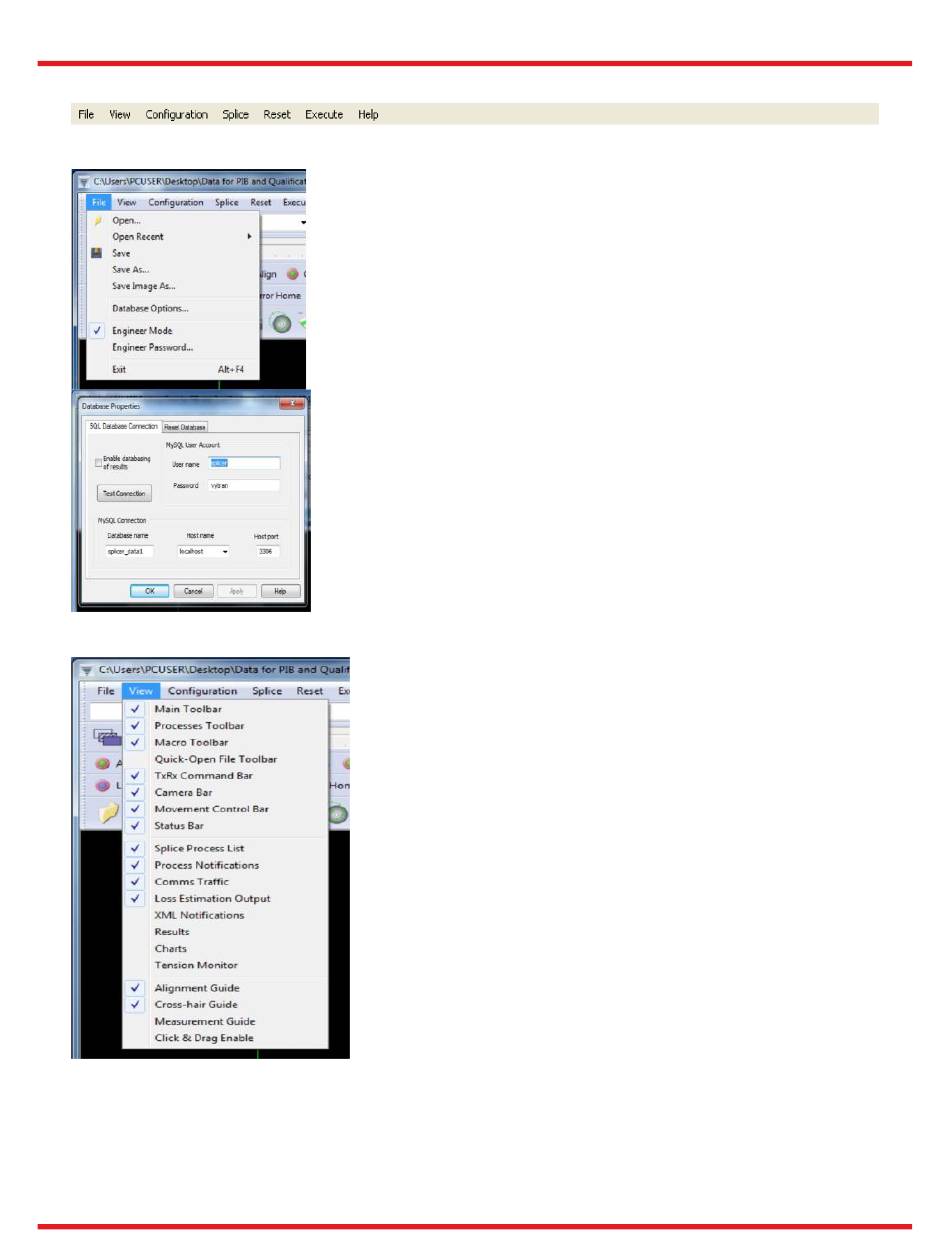

5.2.1. Menu Bar

a. File
b. View
Rev B, July 24, 2017
The File menu is structured in the same way as
shown.
Open: Open a new splice data file.
Open Recent: Shows the files opened recently.
Save: Save the current settings to the current splice
data file.
Save As: Save the current settings to a new splice
data file.
Data Base Options: Enables / Disables the
Database. Reset the Database. The database has
preconfigured settings that should not be altered.
Engineer Mode: Engineer mode allows full access
of SW and control of the limited GUI for the Non-
Engineer.
Engineer Password: Engineer mode is password
protected.
Exit: Close the GUI.
View enables the user to display or hide the various
toolbars, data windows, and guides associated with
the GUI (like crosshair and alignment guides). The
"Processes Toolbar", "Macro Toolbar" and "Quick-
Open File Toolbar" can only be activated if functions
are assigned to them. You can achieve this under
the Configuration menu.
Another feature under the View menu is the Tension
Monitor. See Section 5.7.3 for more details.
Chapter 5: Operation
Page 17
