GPX3400 and GPX3600 Glass Processors
Chapter 5
Operation
5.1.
Software Interface
The software interface involves a graphical user interface, or GUI, and an SQL database. Here is a detailed
explanation for the control of the machine.
5.2.
Graphical User Interface
The GUI is the main window when working on the glass processor workstation. It has different menus and
toolbars that are explained later in this document. The buttons are described in this chapter from top to bottom, as
.
indicated in Figure 8
The following sections will explain each of these components in detail.
Page 16

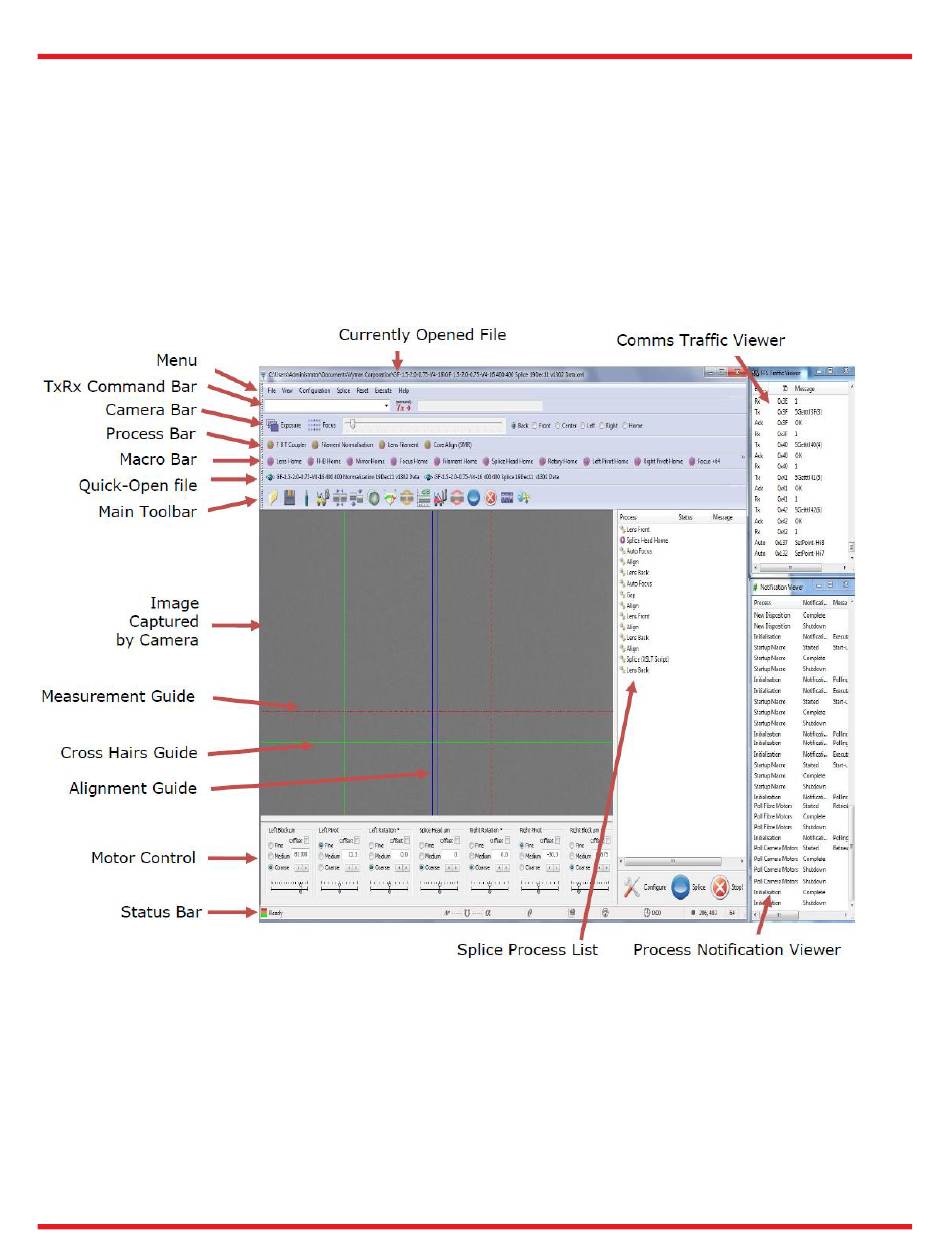

Figure 8
Software GUI Main Screen
Chapter 5: Operation
TTN047532-D02
