GPX3400 and GPX3600 Glass Processors
3.3.
Accessories GPX3400 and GPX3600
Component
Workstation
PC
Vacuum Pump
Power Supply
Gas Tank Regulator
Gas Line
RS-232 Communication Cable
Camera Cable
Tool Kit
Fiber Holding Block Inserts
Filament Assemblies
3.4.
System Overview

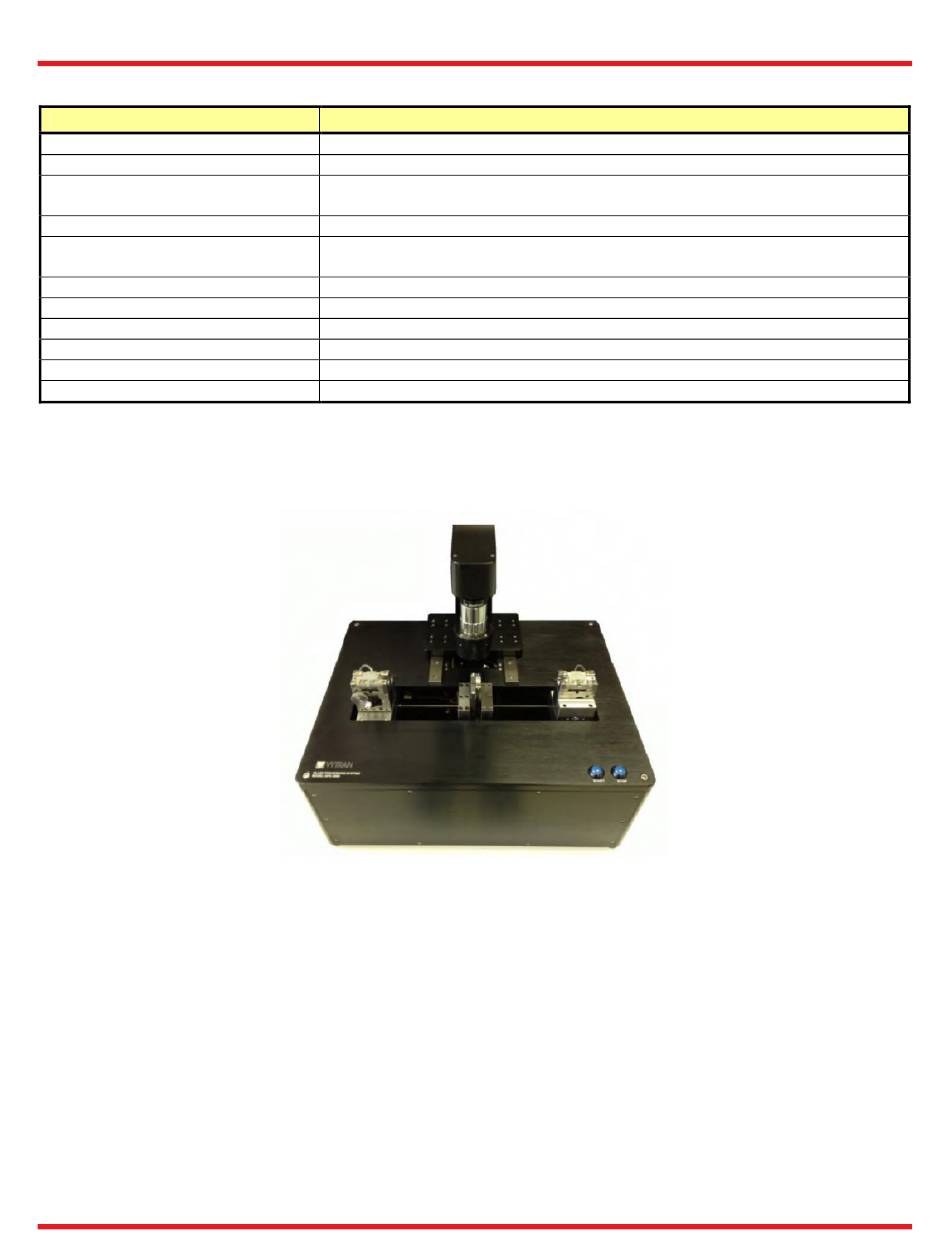

The Vytran Glass Processor has three basic components: a splicing and glass processing workstation, a personal
computer (PC), and a gas supply. The splicer workstation is illustrated in Figure 1.
Rev B, July 24, 2017
GPX3400 or GPX3600 Glass Processor Workstation
Computer, including Monitor, Keyboard and Mouse
Vacuum Pump for Vacuum V-Grooves
(Alternative Model Supplied for 230 V Markets)
Dual Voltage Power Supply and Cable
Regulator for Argon Tank (European DIN 477 Number 6 Also Included )
An Adaptor May be Required in other Areas or Countries
1/8" Teflon Line for Argon Gas
9-pin D-sub Cable for RS-232 Communication
6 pin IEEE-1394 Fire Wire Cable
Hex Wrenches for Filament and Inserts Replacement
Top and Bottom Inserts for Fiber Holding Blocks
Set of Filament Assemblies
Figure 1
GPX3400 Workstation
Description
Chapter 3: Description
Page 7
