GPX3400 and GPX3600 Glass Processors
Page 20

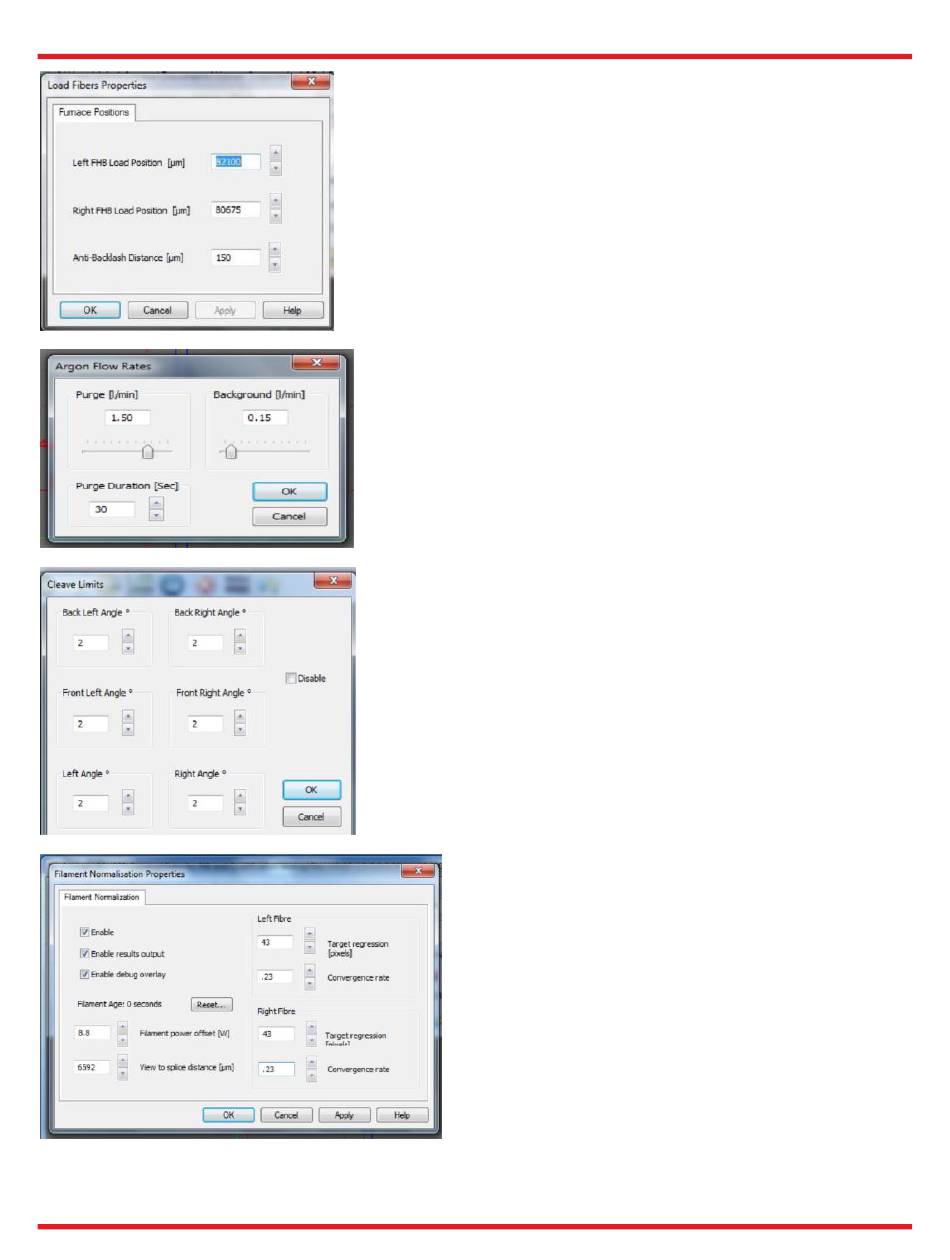

Load Fibers This window sets the fiber
-
holding block's position when it is ready for
loading the fiber to perform the splice.
Argon flow has three rates. The purge and
background settings are controlled in this
window, and argon flow rate for the splice is
set in the splice property window.
The system can measure the cleave angle of
the fibers before splicing them together. The
user can set the cleave angle limits to reject
the poorly cleaved fiber.
The Filament Normalization values in this
window are set by the manufacturer. The
process will be explained in Section 5.5.2.
Chapter 5: Operation
TTN047532-D02
