GPX3400 and GPX3600 Glass Processors
Fiber Type
Generic
Panda
Elliptical Core
Bow Tie
Note that "OD Ratio" represents the fraction of the fiber diameter which will be used to calculate the fiber end
angle. It is the fraction of the fiber diameter that contains the PM Structure.

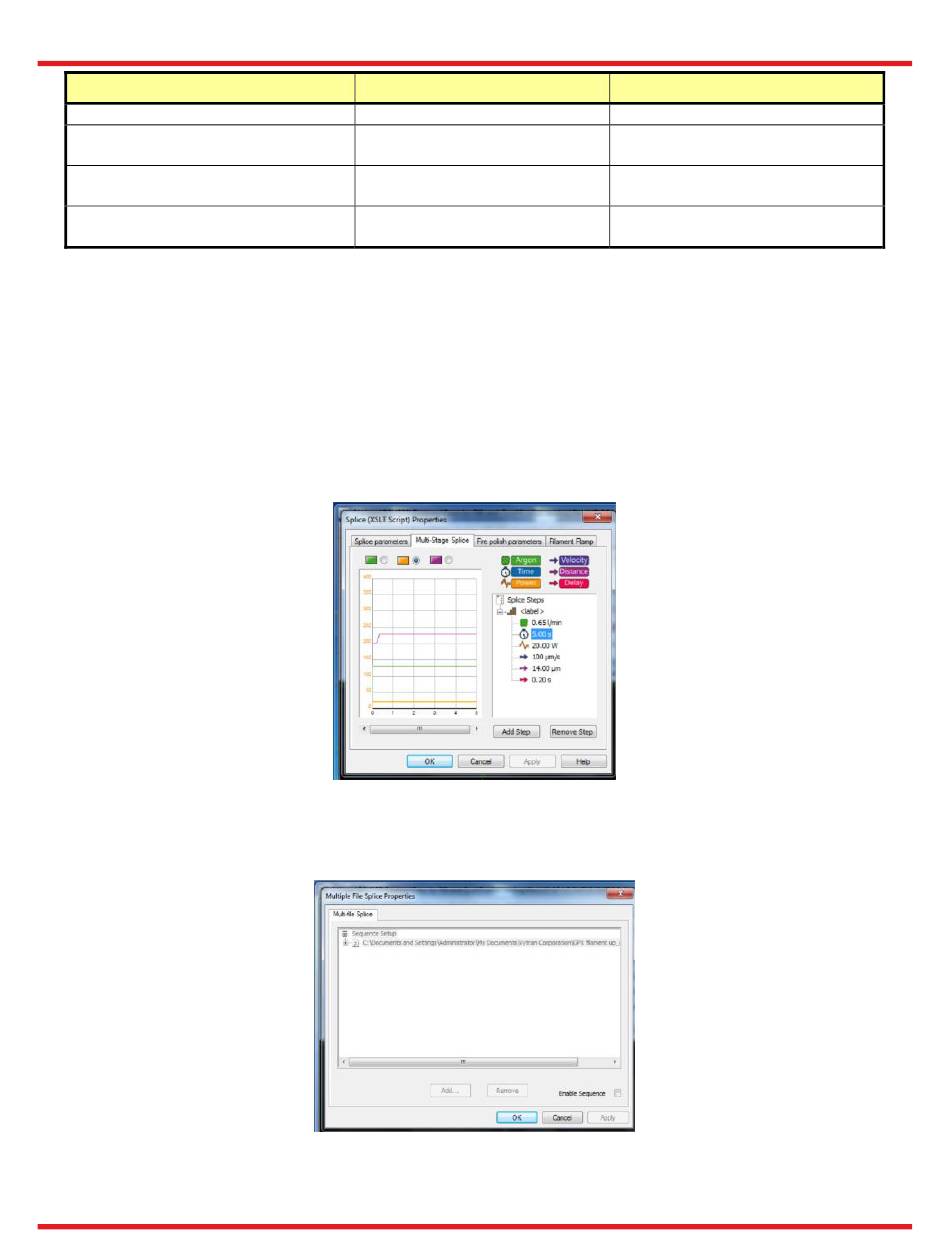

5.5.7. Multiple-Stage and Multiple File Splicing

For certain special applications, the system can run several splice steps in a sequence. The setup window can be
accessed from Menu Bar>Splice> Splice Parameters>Multiple-Stage Splice.
Users can set up all the parameters for each splice step, and add or remove splice steps in the Splice Properties
Window.
Users can add or remove multiple pre-saved splice files in the Multiple File Splice Properties Window. The system
will perform the splicing function according to the sequence of the files in this window.
Rev B, July 24, 2017
Parameter 1 (P1)
OD Ratio
Core Center to Stress Rod
Center, (Pixels).
Core Center to edge of ellipse,
Minor diameter (Pixels).
Core Center to Stress Rod
Center, (Pixels).
Figure 11 PM Fiber Parameters
Splice Properties Window
Multiple File Splice Properties Window
Chapter 5: Operation
Parameter 2 (P2)
N/A
Stress Rod Diameter
(Pixels)
Core Center to edge of ellipse,
Major diameter (Pixels).
N/A
