GPX3400 and GPX3600 Glass Processors
Filament Assembly

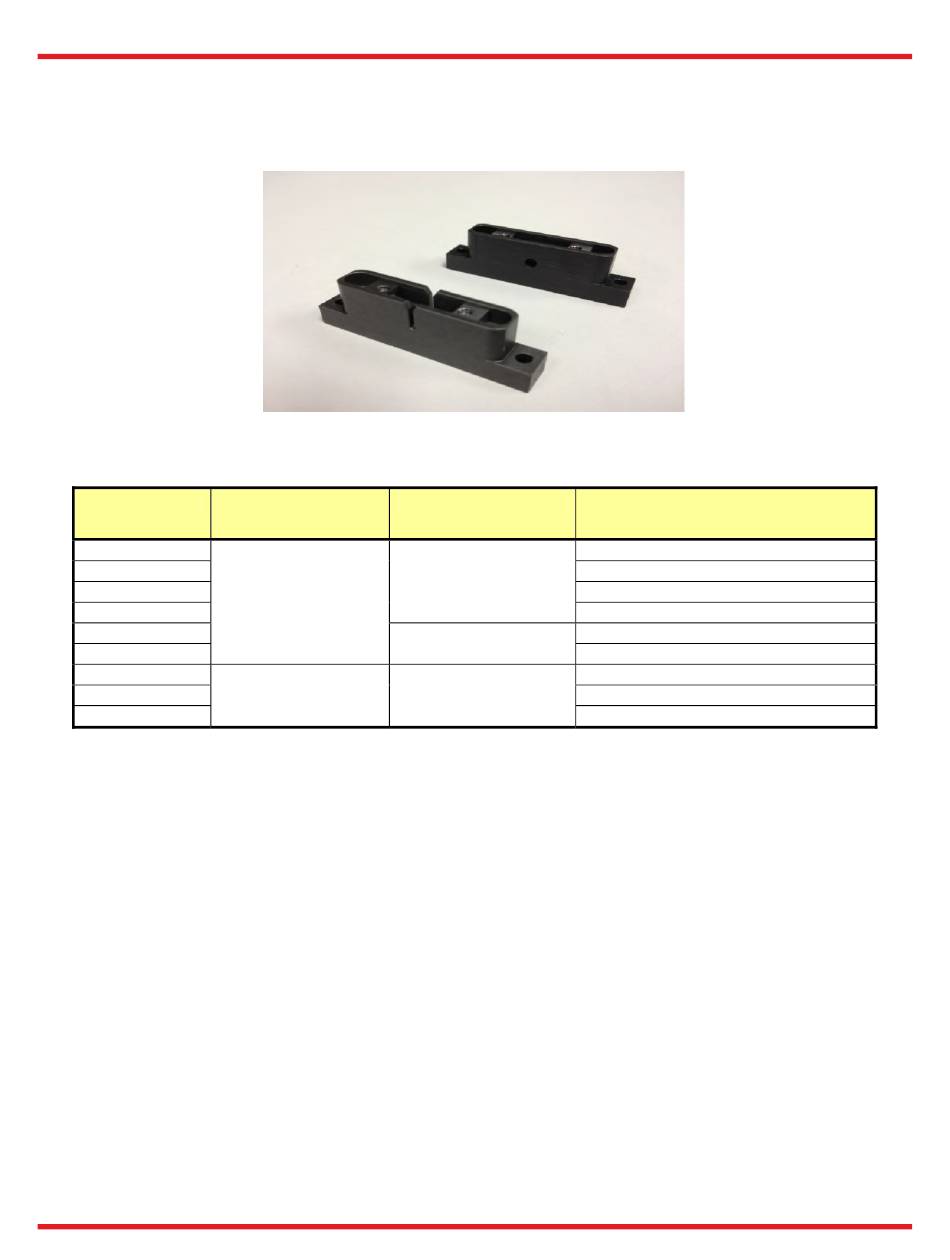

Thorlabs supplies filaments pre-assembled in a filament body as shown in the Figure 6. This is called a filament
assembly. Different filament bodies are used with different filaments, and are distinguished by a version number
engraved on the front of the housing.
Figure 7 lists the standard graphite filament types as a function of the fiber size and application
Item #
FTAV2
FTAV4
FTAV5
FTAV6
FTAT3
FTAT4
FRAV1
FRAV3
FRAV5
Page 12
Figure 6 V and T Filament Body Version
Filament Application
Material
Graphite
Iridium
Figure 7
Splice
Tapering
Splice
Filament Size Table
Chapter 3: Description
.
Cladding Diameter
(Min/Max)
80 µm / 250 µm
125 µm / 600 µm
250 µm / 1000 µm
400 µm / 1300 µm
250 µm / 1500 µm
400 µm / 1800 µm
≤200 µm
≤400 µm
250 µm / 1050 µm
