de Inhaltsverzeichnis . . . . . . . . . . . . . . . . . . . . . . . . . Seite . . . . . . . 2
Originalbetriebsanleitung . . . . . . . . . . . . . . . . . . . Seite . . . . . . . 3
en Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . Page . . . . . . . 2
Original instructions . . . . . . . . . . . . . . . . . . . . . . . Page . . . . . . 19
99.823.21 3.2/01/15
0786 - CPD - 50382
EN 12101-10 : 2005/AC:2007
conform

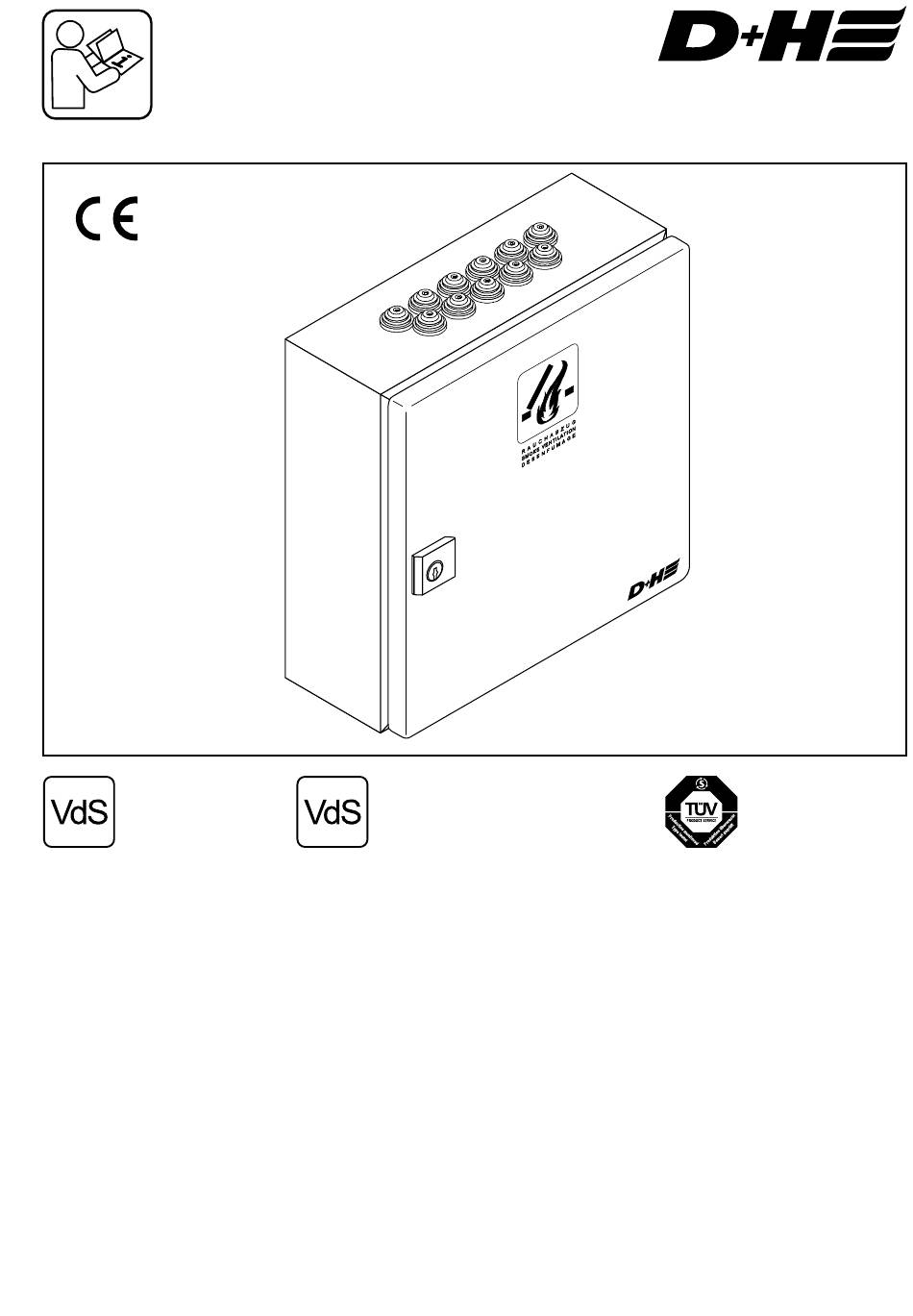

RZN 4416-M
®
AdComNet ready
B 06 05 22802 024
Zertifikat-Nr.
certificate-no.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RZN 4416-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for D+H RZN 4416-M

  • Page 1 RZN 4416-M ® AdComNet ready G 506001 0786 - CPD - 50382 B 06 05 22802 024 EN 12101-10 : 2005/AC:2007 Anerkennungs-Nr. Zertifikat-Nr. conform approval-no. certificate-no. de Inhaltsverzeichnis ......Seite ..2 Originalbetriebsanleitung .
  • Page 2: Table Of Contents

    Pictogram explanation ..........................21 Internal structure control panel ........................22 View motherboard............................23 DIP switch settings ..........................24-25 Cables for D+H smoke an heat vent systems / Wiring plan (Paragon) ............26 230 V supply ...............................27 Connection overview ..........................27 Connection of smoke vent buttons ......................28 Connection of fire detector / Connection of fire alarm system ..............29...
  • Page 3: Einleitung / Aufbauschema

    Phasen des Projekts: von der Beratung, Planung und Projektierung bis hin zu Installation, Qualität mit Garantie Inbetriebnahme, Instandhaltung und Service. Somit Für alle D+H RWA-Systeme, die durch einen D+H werden höchste nationale und internationale Service- und Vertriebspartner installiert wurden und Qualitätsstandards zuverlässig erfüllt.
  • Page 4: Bestimmungsgemäße Verwendung / Sicherheitshinweise

    Die Inspektion und Wartung hat gemäß den meldeanlagen, VdS 2221, VDE 0100 für elektrische D+H-Wartungshinweisen zu erfolgen. Anlagen, DIN 18232 für RWA-Anlagen, die Es dürfen nur original D+H-Ersatzteile verwendet Bestimmungen der örtlichen Feuerwehr und des werden. Eine Instandsetzung erfolgt ausschließlich EVU für den Netzanschluss.
  • Page 5: Technische Daten

    Schutzklasse Temperaturbereich -5 ... +40°C Abmessungen BxHxT 500 x 500 x 210 mm * D+H Antriebe mit RWA-Schnelllauf (HS) werden unterstützt. ** Der Gesamtstrom der Zentrale darf dabei nicht überschritten werden. 24 V - Notversorgung Piktogrammerklärung RWA - Alarm Notversorgungszeit: 72 Stunden.
  • Page 6: Innenaufbau Zentrale

    Innenaufbau Zentrale Kabelkanal 35 mm Hutschiene zum Einbau von Modulen (Breite: 300 mm) Grundplatine T2,5A 27VAC Transformator Akku Position 6/36 RZN 4416-M Deutsch 99.823.21 3.2/01/15...
  • Page 7: Ansicht Grundplatine

    IN : 230VAC / 500VA OUT : 24VDC / max. 16A 12.345.67-65.43 - 123456 D+H Mechatronic - Germany - +49 40 605 65 0 1 2 3 4 5 6 7 8 – : notversorgtes Potential - + : notversorgtes Potential + N–...
  • Page 8: Einstellungen Der Dip-Schalter

    Ein Rauchmelder-Alarm wird durch Drücken auf Taster "RWA-ZU" im RWA-Taster zurückgestellt. 3 = ON Bei einer Linienstörung (z.B. bei unterbrochener Tasterleitung oder Kurzschluss) wird die Zentrale auf Alarm geschaltet, d.h. der Rauchabzug läuft auf. nicht belegt 8/36 RZN 4416-M Deutsch 99.823.21 3.2/01/15...
  • Page 9 1 2 3 4 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9/36 99.823.21 3.2/01/15 Deutsch RZN 4416-M...
  • Page 10: Kabel Für D+H-Rwa-Systeme / Kabelverlegeplan

    Kabel Linie (Zentrale - Melder) bezeichnungen für diese Kabel angegeben. Die Kabel sind auf Kurzschluss und auf Erfragen Sie diese bitte bei Ihrem D+H Partner. Unterbrechung überwacht. Wenn Linien DIP- Schalter 3 auf ON wird bei einer Störung die Gruppe automatisch angesteuert und fährt auf.
  • Page 11: 230 V Versorgung

    230 V Versorgung 230 V, 50 Hz Separater Stromkreis. Sicherung kennzeichnen. Trafo Grundplatine Anschluss Übersicht EM 47 K Antrieb SD-O 371 RT 45 LT 84-U (-SD) Mot.a Mot.b 10kW Mot.a Mot.b – – N– RZN 4416-M 11/36 99.823.21 3.2/01/15 Deutsch RZN 4416-M...
  • Page 12: Anschluss Rwa-Taster

    Anschluss RWA-Taster Max. 8 Taster pro Linie anschließbar. Standardanschluss Parallelanschluss RT 45 RT 45 RT 45 10kW 10kW RZN 4416-M RZN 4416-M * bauseitige Rangierverbindung Parallelanschluss von 2x 2 Tastern RT 45 RT 45 jeweils letzter Taster 10kW jeweils erster...
  • Page 13: Anschluss Brandmelder, Brandmeldeanlage

    Anschluss Brandmelder Anschluss Brandmeldeanlage Max. 14 Brandmelder anschließbar. Es dürfen nur von D+H zugelassene Melder verwendet werden. BMZ / BMA Arbeitskontakt Alarmwiderstand < wahlweise > Endwiderstand* 10kW SD-O 371 oder FD-T 271 – RZN 4416-M * Endwiderstand für Leitungsüberwachung –...
  • Page 14: Hinweise Zur Inbetriebnahme

    Sicherung in der Zentrale überprüfen. leuchtet? Netz noch immer nicht vorhanden oder Linie Akkuleitungen nein abgeschaltet oder Sicherung defekt. anklemmen, Kontrolle leuchtet? Funktionsprüfung Alarm/Reset und Lüftung nein RWA-Klappe Evtl. Antrieb umpolen. öffnet und schließt? 14/36 RZN 4416-M Deutsch 99.823.21 3.2/01/15...
  • Page 15 Bedienung - Auslösen bei Alarm Manuelles Öffnen durch Rauchabzugstaster: RAUCHABZUG Reset Line Automatisches Öffnen durch Brandmelder: Reset Line Automatisches Öffnen durch Fremdansteuerung (z. B. Brandmeldezentrale): Kontakt der Fremdansteuerung Reset Line 15/36 99.823.21 3.2/01/15 Deutsch RZN 4416-M...
  • Page 16: Bedienung

    Bei Auslösung durch Brandmelder oder Fremdansteuerung: Reset = AUS / EIN Kontakt der Fremdansteuerung Reset Line ~ 1 Sek. Siehe DIP- Schalter Seite 8-9 Notschließen bei nicht rückstellbarem Alarm: Reset ~ 1 Sek. Line 16/36 RZN 4416-M Deutsch 99.823.21 3.2/01/15...
  • Page 17 3 Alles OK: LED Aus on/off wieder auf. Öffnung der Anlage zum Lüften über den Alarm-LED an der Linie: Lüftungstaster. 1 lokaler Alarm: LED leuchtet durchgehend 2 BUS-Alarm: LED blinkt 3 Kein Alarm: LED Aus LT 84-U-W 17/36 99.823.21 3.2/01/15 Deutsch RZN 4416-M...
  • Page 18: Inspektion / Wartung

    Bei der Wartung sind folgende Prüfungen hersteller autorisierte Fachfirma. durchzuführen: Prüfplakette erneuern, Betriebsbuch führen. - Äußere Begutachtung / Inspektion der Es ist jeweils die aktuelle D+H Wartungsanleitung Systemkomponenten maßgebend. - Überprüfung aller relevanten Spannungs- Ein von D+H autorisierter Fachbetrieb erhält diese...
  • Page 19: Introduction / Assembly Scheme

    For all D+H SHEV systems, which have been service. The highest national and international installed by a D+H service and sales partner and are quality standards are therefore reliably fulfilled. regularly serviced, you will receive extended warranty services.
  • Page 20: Intended Use / Safety Notes

    VDE 0833, guidelines for electrical systems VdS according to D+H maintenance notes. Only original 2221, VDE 0100, DIN 18232 for smoke and heat D+H spare parts may be used. Repair is to be vent systems, regulations of the local fire-brigade carried out exclusively by D+H.
  • Page 21: Technical Data

    Temperature range -5 ... +40 °C Dimensions WxHxD 500 x 500 x 210 mm * D+H Highspeed (HS) drives will be supported. ** The total current of the control panel must not be exceeded. 24 V - Emergency supply Pictogram explanation SHEV alarm Emergency power supply for 72 hours.
  • Page 22: Internal Structure Control Panel

    Internal structure control panel Cable duct 35 mm top hat rail for installation of modules (width: 300 mm) Motherboard T2,5A 27VAC Transformator Battery position 22/36 English RZN 4416-M 99.823.21 3.2/01/15...
  • Page 23: View Motherboard

    IN : 230VAC / 500VA OUT : 24VDC / max. 16A 12.345.67-65.43 - 123456 D+H Mechatronic - Germany - +49 40 605 65 0 1 2 3 4 5 6 7 8 – : Emergency-supplied potential - + : Emergency-supplied potential + N–...
  • Page 24 3 = ON In case of a line fault (e.g. at an interrupted detector line or short circuit) the control panel will be switched on alarm, that means the smoke vent opens. idle 24/36 English RZN 4416-M 99.823.21 3.2/01/15...
  • Page 25: Dip Switch Settings

    1 2 3 4 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 25/36 English 99.823.21 3.2/01/15 RZN 4416-M...
  • Page 26: Cables For D+H Smoke An Heat Vent Systems / Wiring Plan (Paragon)

    Cables for D+H smoke an heat vent systems When selecting and installing the cables, the Group cable (control panel - drive) regional electrical installation regulations At least three wire design: concerning wiring systems and the necessary - 2 wires for the supply of the drive...
  • Page 27: 230 V Supply

    230 V, 50 Hz Seperate electric circuit.. Mark fuse. Transformer Motherboard Connection overview EM 47 K Drive SD-O 371 RT 45 LT 84-U (-SD) Mot.a Mot.b 10kW Mot.a Mot.b – – N– RZN 4416-M 27/36 English 99.823.21 3.2/01/15 RZN 4416-M...
  • Page 28: Connection Of Smoke Vent Buttons

    Max. 8 buttons per line connectable. Standard connection Parallel connection RT 45 RT 45 RT 45 10kW 10kW RZN 4416-M RZN 4416-M * Shunt connection by customer Parallel connection of 2x 2 buttons RT 45 RT 45 last button each 10kW...
  • Page 29: Connection Of Fire Detector / Connection Of Fire Alarm System

    VdS 2581. For this, the N– N+ Z + M1 M2 – SB drives must be blockage safe. All D+H drives meet this precondition. Otherwise the DIP switches has to be switched on OFF. Mounting of the drives:...
  • Page 30: Informations For Starting

    Mains still not available or line switch on "0" Connect battery or one of fuses faulty. lines. Control l ightens? Performance check alarm/reset and ventilation Possibly change poles in drive. Smoke vent flap opens and closes? 30/36 English RZN 4416-M 99.823.21 3.2/01/15...
  • Page 31 Operation - Release in case of alarm Manual opening by smoke vent button: SMOKE VENT Reset Line Automatic opening by fire detector: Reset Line Automatic opening by external control (e.g. fire alarm system): External control Reset Line 31/36 English 99.823.21 3.2/01/15 RZN 4416-M...
  • Page 32: Operation

    In case of automatic release by fire detector or external control: Reset = OFF / ON External control Reset Line ~ 1 Sec. see DIP switch page 24-25 Emergency closing in case of non-resettable alarm: Service Reset ~ 1 Sec. Line 32/36 English RZN 4416-M 99.823.21 3.2/01/15...
  • Page 33 Alarm LED on the line: on/off Opening of the system for 1 local alarm: LED lights continuous ventilation via vent button. 2 BUS alarm: LED flashes 3 No alarm: LED OFF LT 84-U-W 33/36 English 99.823.21 3.2/01/15 RZN 4416-M...
  • Page 34: Inspection / Maintenance

    - Functional testing of connected system D+H authorized expert companies have been components specially trained by D+H for carrying out expertly - Record of competent carrying-out of this maintenance, and they get automatically the maintenance, and designation according to latest maintenance instructions.
  • Page 35 35/36 99.823.21 3.2/01/15 RZN 4416-M...
  • Page 36 22949 Ammersbek , Germany Tel. : +49 40-605 65 : +49 40-605 65 254 E-Mail: info@dh-partner.com www.dh-partner.com © 2013 D+H Mechatronic AG, Ammersbek Technische Änderungen vorbehalten / Rights to technical modifications reserved 100 % Recyclingpapier / recycled paper 99.823.21 3.2/01/15...
