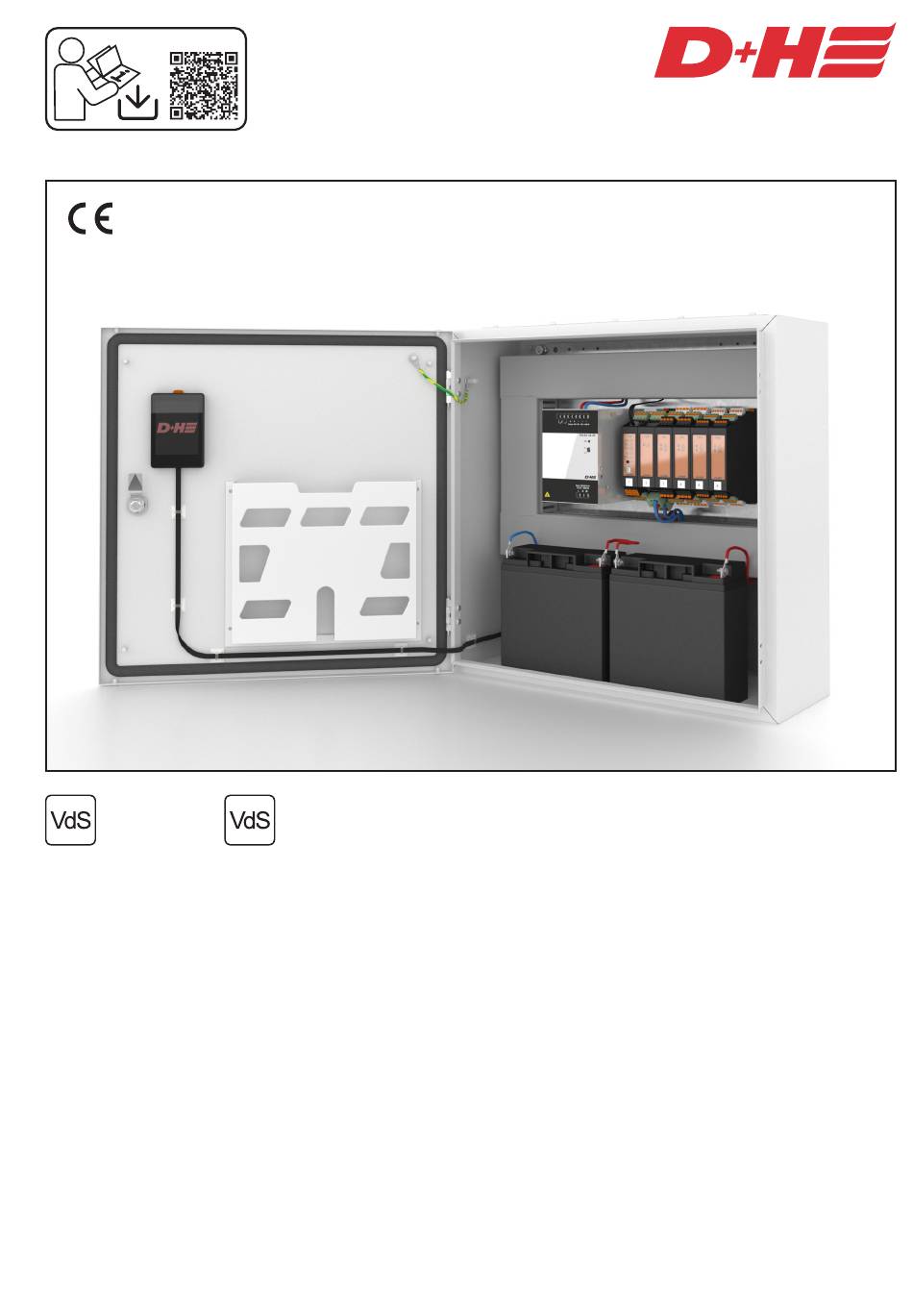

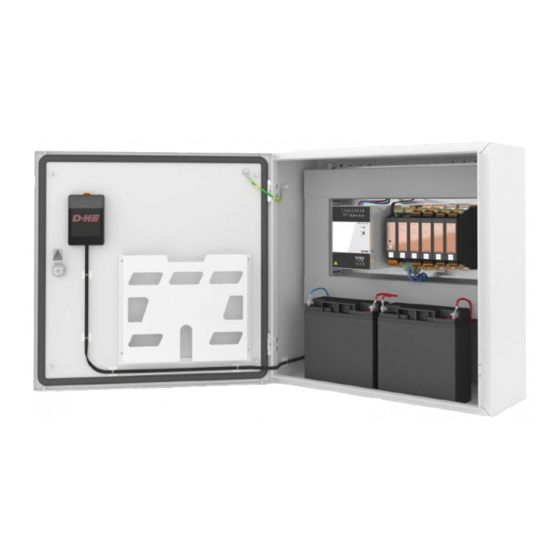

- Page 1 D+H Downloads CPS-M1 G 517002 0786 - CPD - 50680 EN 12101-10:2005 + Corr. 1:2007 Anerkennungs-Nr. conform approval-no. en Original instructions ..........Page ............2 99.827.31 2.2/02/22...
-
Page 2: Table Of Contents
Safety in the building is not only provided by the product. Safety is cre- Actuator module - AM-1-1-08-230-D4-D2..........6 ated above all by competence. All D+H service and sales partners are Digital I/O module - IOM-D1-1212 ............6 certified and regularly trained SHEV specialist companies. They work ACB interface .................. -
Page 3: Intended Use
• Combine lines and groups however you want • AdComNet bus system for seamless networking of the modules • Convenience functions for daily ventilation within the CPS-M and further D+H AdComNet SHEV control system • Only intended for installation indoors • Simple implementation of complex SHEV scenarios •... -
Page 4: Overview Of Components
Overview of components Basic module socket Supply module socket Expansion module socket MS-D1-RR-TS MS-S1-RD-TS MS-S1-DD-TS Bus termination module BTM-1-1 Is plugged into the last module socket. Bus connection Connection for the power supply RJ12 connecting cable (2x) CC-TP/TCSU-1000 (1 m) CC-TP/TCSU-2000 (2 m) Touch panel with bracket (optional) Temperature control sensor unit... -
Page 5: Control Module - Cm-Bt1-D4-P2
SHEV buttons and 30 fire detectors per line (only • If a load current of more than 40 A is required, another detectors approved by D+H may be used) PSM (including supply module socket) can be used. • Cables are monitored by the EM-L01 terminal module •... -
Page 6: Actuator Module - Am-1-1-08-230-D4-D2
• Up to 45 drives per AM 230 connectable • Definition of a switch-off state in the event of a mains and • D+H 230 V AC drives with SHEV fast mode (HS) are battery failure possible (failsafe function) supported •... -
Page 7: Power Packs Ps-S1-24-20 And Ps-S1-24-40
Power packs PS-S1-24-20 and PS-S1-24-40 Functions: • Output: 24 V DC, 20 A or 40 A • Installation on 35 mm top hat rail • Low ripple • Reverse-voltage protected and short-circuit resistant • Multiple power supply units can be combined •... -
Page 8: Technical Data
Declaration of conformity We declare under our sole responsibility that the product described under "Technical Data" complies with the following directives: 2014/30/EU, 2014/35/EU, EU 305/2011 Technical documents stored at: D+H Mechatronic AG, D-22949 Ammersbek Dirk Dingfelder Maik Schmees 28.02.2022 8/36... -
Page 9: Arrangement Of The Modules
Arrangement of the modules • Each CM controller module can manage up to 29 additional modules (PSM, AM, TMA) • The first PSM provides power to the CM module as well as to the AM and TMA modules to the right of it •... -
Page 10: General Instructions For Connection
SHEV opening Due to the variety available on the market, See cable lengths and cross sections no type designations are specified for these cables. Please contact your D+H Partner for 230 V AC 50 Hz this information. Separate power circuit. -
Page 11: Connection - Psm
Connection – PSM Name Description X2.1 Output potential without an emergency supply for ventilation functions, max. 500 mA X2.2 Reference potential (do not connect to P-) X2.3 Output potential with an emergency supply, max. 500 mA X2.4 Reference potential (do not connect to P-) TCSU1 RJ12 connection of external battery temperature sensor... -
Page 12: Connection - Cm / Cm-B
Connection – CM / CM-B Name Description X1.1 n.c. n.c. X1.2 NO 1 Isolated change-over contact, max. 35 V / 1 A, collective alarm (factory setting, can be pro- X1.3 COM 1 grammed using SCS) X1.3 NC 1 X2.1 n.c. n.c. -
Page 13: Connection - Digital Inputs And Outputs
Connection – Digital inputs and outputs Battery for the clock of the event memory The CM module has a built-in lithium battery on the underside, which buffers the internal clock of the event memory in the event of a power failure. -
Page 14: Connection - Iom
Connection – IOM Name Description X1.1 DO 1.4 freely configurable digital output 1.4 * X1.2 DO 1.3 freely configurable digital output 1.3 * X1.3 Reference potential (do not connect to P-) X1.4 DO 1.2 freely configurable digital output 1.2 * X1.5 DO 1.1 freely configurable digital output 1.1 *... -
Page 15: Connection - Brm
Connection – BRM Name Description X1.1 NC 1 Floating output 1 - normally closed * X1.2 COM 1 Floating output 1 – COM X1.3 NO 1 Floating output 1 – normally open * X1.4 COM 1 Floating output 1 – COM X2.1 NC 2 Floating output 2 –... -
Page 16: Connection - Adm
Connection – ADM Name Description X1.1 DO 1.4 freely configurable digital output 1.4 max. 50 mA, short-circuit-proof X1.2 DO 1.3 freely configurable digital output 1.3 max. 50 mA, short-circuit-proof X1.3 Reference potential (do not connect to P-) X1.4 DO 1.2 freely configurable digital output 1.2 max. -
Page 17: Connection - Adm
Connection – ADM Digitale Ausgänge 24 V DC je max. 50 mA (Programmierbar über SCS) X1 / X2 / X3 Digital outputs 24 V DC each max. 50 mA (programmable using SCS) X1.1 X1.5 ADM-A1-1212-4 X2.1 X2.5 X3.1 X3.5 Multifunctional inputs (programmable using SCS) 24 V DC Digital:... -
Page 18: Connection - Am 24 / Am-B 24
Connection – AM 24 / AM-B 24 Name Description X1.1 Reference potential, max. 10 A (do not connect to -) EM-47K X1.2 MOT.b 1 Drive group 1, max. 10 A Terminal module X1.3 MOT.a 1 X1.4 E/HS 1 Monitoring wire / high-speed for actuator group 1 X2.1 Reference potential, max. -
Page 19: Connection - Am 24 With Acb Drives
Connection – AM 24 with ACB drives Mot.a Mot.a Mot.b Mot.b ACB.a/HS ACB.a/HS ACB.b ACB.b Mot.a Mot.a X1.1 X1.4 Mot.b Mot.b ACB.a/HS ACB.a/HS ACB.b ACB.b X2.1 X2.4 Drives Drives X3.1 X3.4 * Termination: Each ACB bus has to be terminated (110 Ω) with a resistor. -
Page 20: Connection - Am 230
Connection – AM 230 Name Description X1.1 Neutral conductor input X1.2 Phase 230 V input X2.1 Neutral conductor output X2.2 L-OPEN Phase 230 V OPEN direction output X2.3 L-CLOSE Phase 230 V CLOSE direction output X2.4 Monitoring wire X4.5 Reference potential (do not connect to P-) X4.4 ACB + Supply of the ACB interface... -
Page 21: Connection - Nsv 401 Power Supply And D+H Acb Drives
Connection – NSV 401 power supply and D+H ACB drives EM 230 NSV 401 L▲ L▼ Drives 1 2 3 4 5 6 7 8 9 Mot.b L ▼ L ▲ Mot.a DM-ACB230 ACB.A 110 Ω* ACB.B X1.1 X1.2 before / vor / avant Battery Service... -
Page 22: Connection - Nsv 401 Power Supply And Third-Party Drives
Connection – NSV 401 power supply and third-party drives NSV 401 EM 230 L▲ L▼ Drives 1 2 3 4 5 6 7 8 9 X1.1 X1.2 before / vor / avant Battery Service - switch off the battery - Batterieschalter auf OFF schalten - débrancher la batterie X2.1 X2.4... -
Page 23: Connection - Tma
Connection – TMA Name Description (as RM/RT lines) EM-L01 X1.1 DO 2.3 No function Terminal module X1.2 DO 2.2 No function X1.3 Reference potential (do not connect to P-) X1.4 DO 1.3 (S) Fault output (RT line 1), max. 50 mA X1.5 DO 1.2 (A) Alarm output (RT line 1), max. -
Page 24: Connection - Tma (2 Lines)
Connection – TMA (2 lines) RT Line 2 RT Line 1 RM line 1 RM line 2 RT 45 RT 45 SD-O 371 / FD-T 271 EM-L01 EM-L01 X1.1 X1.5 X2.1 X2.5 EM-L01 EM-L01 X3.1 X3.5 TMA-1-D4-D12 X4.5 X4.1 X5.5 X5.1 X6.5 X6.1... -
Page 25: Connection - Tma Parallel Connection Rt
Connection – TMA parallel connection RT RT 45 RT 45 RT line EM-L01 X1.1 X1.5 X2.1 X2.5 X3.1 X3.5 TMA-1-D4-D12 Connection – TMA to fire alarm system (FAS) Trigger from Operating contact X1.1 X1.5 Reset from (Configuration via SCS required) X2.1 X2.5 X3.1... -
Page 26: Description Of The Inputs And Outputs
Description of the inputs and outputs Designation Description Reference potential / negative: used as the reference potential for external peripherals (e.g. SHEV operation panel or LT). May not be connected to P-. The reference potentials of more than one power supply module may not be connected together. ACB.A x / ACB.B x Group (ACB): used for the connection of bus-capable drives. -
Page 27: 230 V Ac Emergency Power Supply - Nsv 401
230 V AC Emergency power supply – NSV 401 Functions: • The NSV 401 is an emergency power supply for 230 V AC D+H SHEV systems. In combination with the AM 230, the NSV 401 supplies the connected SHEV drives with mains voltage. In case of power failure they are supplied with 230 V AC for 7 minutes (When the retriggering function is switched on after approx. -
Page 28: Schematic Design - Nsv 401
Recommended temperature +15 ... +25°C • Only intended for installation indoors Cooling Fan cooling • Only use unaltered D+H original parts Noise level < 45 dB Dimensions (W x H x D) 355 x 250 x 205 mm Batteries:... -
Page 29: Connection Overview - Nsv 401
Connection overview – NSV 401 PSM-1-24-40 EM 230 L▲ L▼ – – – 1 2 3 4 5 6 7 8 9 Output: 24 V DC PS-1-24-20/40 L ▼ Input: 230 V AC, 50 Hz L ▲ L ▼ 230 V AC, 50 Hz L ▲... -
Page 30: Connecting / Changing Batteries
Connecting / changing batteries Batteries are capable of quickly discharging large amounts of energy in the event of a short circuit. Exercise special caution when working to prevent damages. Wrist watches, rings and other metal objects must be removed before working on the batteries. Only use insulated tools. -
Page 31: Commissioning And Configuration With The Scs Software
Commissioning and configuration with the SCS software The D+H Service and Configuration Suite (SCS) is used for commissioning and programming. Functions programmable via SCS (Examples): CM : AM 24 : AM 230 : Alarm with HS ATTENTION! This function must only be... -
Page 32: Description Of The Software Functions
Description of the software functions Designation Connection Description Digital output Output inverted The output issues the status of the link inverted. Functionality selection SHEV link: Alarm / Alarm Reset / Alarm Pulse / Fault / Not Closed Ventilation link: Not Closed / LT Open forwarding / LT Closed forwarding Supplied with emergency power The output is also triggered in the event of a mains outage. -
Page 33: Operation - Touch Panel (Optional)
Operation - Touch panel (optional) Start screen Settings Modules CM - Control module • Displays the overall status of • Setting the display language • Overview of all modules used • Display of the module status the control panel • Display of the respective •... -
Page 34: Operation - Daily Ventilation
Operation - Daily ventilation Ventilation button or SHEV button with RT 45-LT ventilation function required. Open Close Stop ST OP ST OP ST OP Operation - Weather automation With connected wind or rain detector. When the corresponding sensor is triggered, the control panel group is closed. -
Page 35: Operation - Trigger On Alarm
Operation - Trigger on alarm Manual opening with smoke vent button RT 45 RAUCHABZUG CPS-M1 (TMA) Automatic opening with fire detector RT 45 CPS-M1 (TMA) Automatic opening through external control (e.g. central fire alarm) RT 45 External control CPS-M1 (TMA) Operation - Closing after alarm For manual triggering using smoke vent button Opening the housing (control panel and button) -
Page 36: Warranty
• Logging the proper completion of maintenance and • Labelling in accordance with requirements Only original D+H spare parts may be used. Repairs are carried out by D+H exclusively. Wipe off dirt with a dry, soft cloth. Do not use any detergents or solvents.
