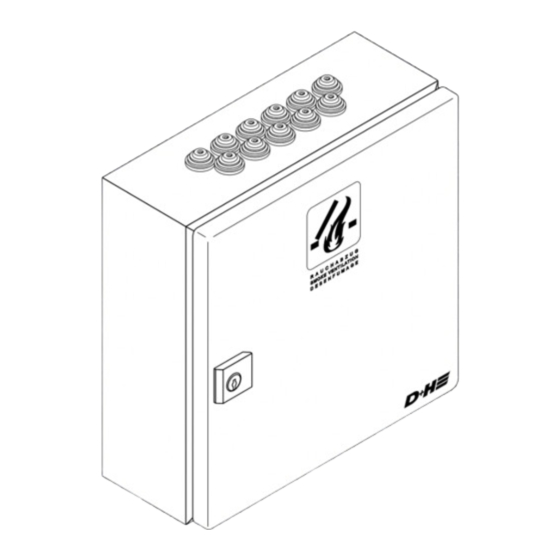

D+H RZN 4416-M Instructions For Use Manual

Smoke vent system
Hide thumbs Also See for RZN 4416-M:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction for use
Safety system protects human life and material assets!
Connection, mounting and functional testing by a
specialist company authorized by the manufacturer.
Green control diodes in the buttons must constantly lighten,
Repair power failure at once. Emergency power supply for 72 hours.
drive
group **
230 V / 50 Hz
power supply
rain
detector
D+H Mechatronic AG • Georg-Sasse-Str. 28-32 • D-22949 Ammersbek • Tel. +4940-60565219 • Fax +4940-60565264
otherwise see "Informations for Starting".
2 lines
2 lines
smoke vent
smoke or
button
thermal
detector

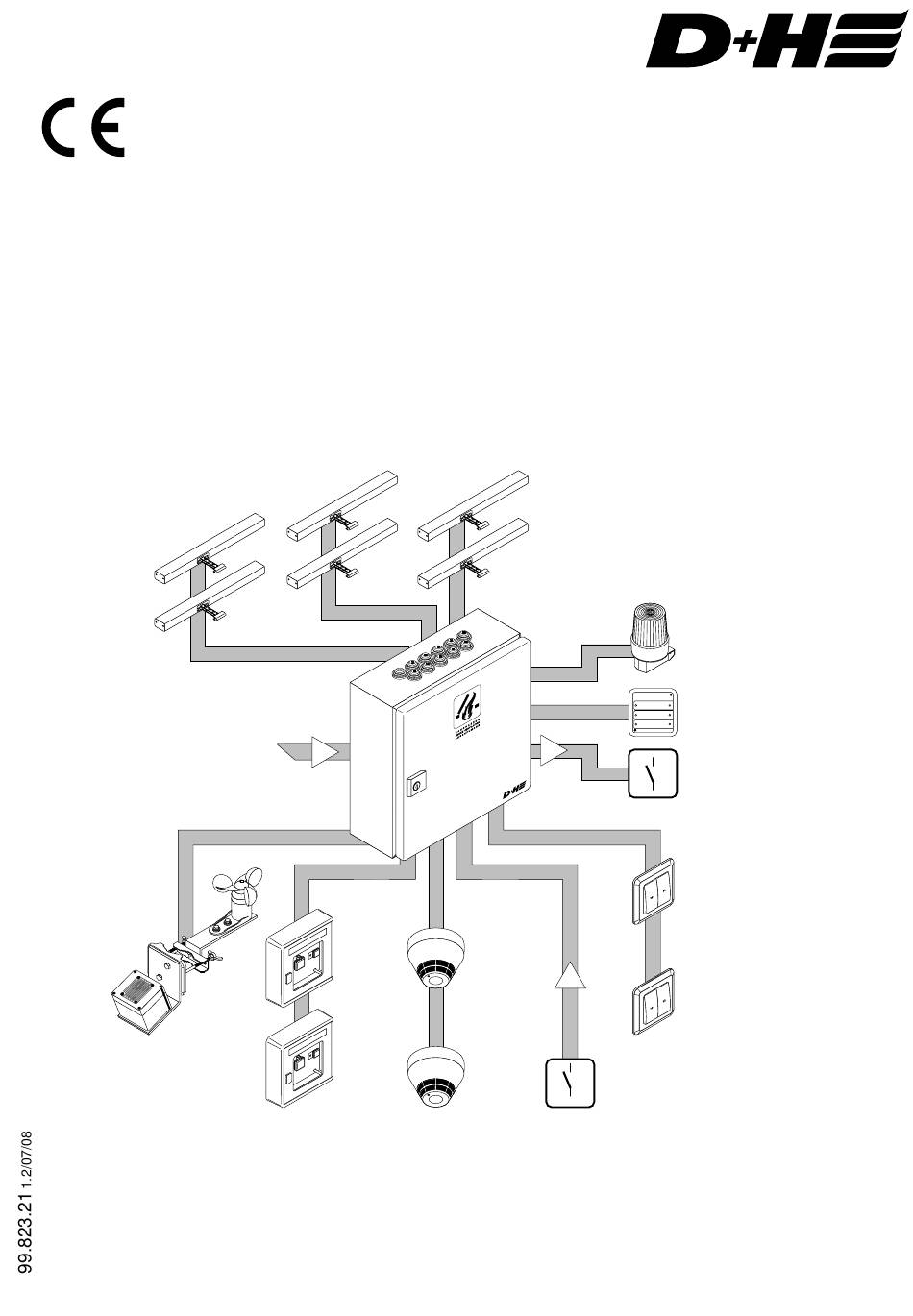

Smoke Vent System
or
<
>
2 lines
control
contact
of external
system *
RZN 4416-M
installation
alarm *
signal indicating
board *
signal
contact *
ventilating
button * **
,
*
optional extension
of function
(separate components can
be retrofitted)
** RZN 4416-M / 3 groups

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RZN 4416-M and is the answer not in the manual?

Questions and answers

Related Manuals for D+H RZN 4416-M

Summary of Contents for D+H RZN 4416-M

  • Page 1 2 lines 2 lines be retrofitted) ** RZN 4416-M / 3 groups smoke vent smoke or control button thermal contact detector of external system * D+H Mechatronic AG • Georg-Sasse-Str. 28-32 • D-22949 Ammersbek • Tel. +4940-60565219 • Fax +4940-60565264...

  • Page 2: Table Of Contents

    Guarantee You will get 2 years guarantee for all D+H products from date of verified handing over of the system up to maximal 3 years after date of delivery, when mounting and starting has been carried out by a D+H authorized distributor.

  • Page 3: Technical Data / Accumulator Control Tid

    Emergency power supply for 72 hours Use VdS approved storage batteries only! 2x 12 V / 7.0 Ah ±15 % With connection of D+H alarm devices: 2x 12 V / 12 Ah ±15 % Accumulator Control TID Temperature-guided charging of accumulator Impedance measuring Internal resistance of accumulator will be measured cyclically.

  • Page 4: Introduction

    Accumulator types, which are used for D+H Mechatronic AG smoke and heat vent systems must be VdS approved, and must be released by D+H Mechatronic AG to use in smoke and heat vent systems. According to DIN 18232 section 2 paragraph 10.2 the tests must be put down in an operational book, which the operator/ building owner must present to the building supervision authority on request.

  • Page 5: View Motherboard Rzn 4416-K

    View motherboard RZN 4416-M 5/20 RZN 4416-M Rev.:1.1...

  • Page 6: Drives And Smoke Vent Buttons

    VdS 2580 par. 4.7. . All D+H drives meet The important thing here is, that an escape this precondition. Otherwise Dip switch 8 must not be hindered by the window wing is to be switched on OFF.

  • Page 7: Wiring Plan

    1,2 above upper edge firm flooring (at flush type 55mm Install and feed separately from supply flush socket by customer) mains. Mark cable and terminal box red. Fire detector 24VDC (FO 1362 or FT 1262) 7/20 RZN 4416-M Rev.:1.1...

  • Page 8: Connection Cables

    Cables for D+H Smoke and Heat Vent Systems The smoke vent control panel is designed Detector Cables (Line): for opening smoke vent devices, which The detector cables are monitored for short operate by thermal ascending force and by circuit and for break.

  • Page 9: Connection Plans

    Terminal resistors must remain at binder RM 1,2, when no fire detector or external control exists. ** Fire detectors Only D+H system approved detectors must be used (see page 7). *** For detailed information concerning the connection, please refer to the instruction for use of respective drive.
  • Page 10 Smoke vent button Typ** RT 43-H RT 43-N 10k * 10kW 10k * RM / RT * shunt connection RZN 4416-M by customer ** Fire detectors Only D+H system approved detectors must be used (see page 7). 10/20 RZN 4416-M Rev.:1.1...
  • Page 11 10kW first to penultimate smoke vent button each 10k * RM / RT * shunt connection RZN 4416-M by customer ** Fire detectors Only D+H system approved detectors must be used (see page 7). 11/20 RZN 4416-M Rev.:1.1...
  • Page 12 Terminal resistors must remain at binder RM 1,2, when no fire detector or external control exists. ** Fire detectors Only D+H system approved detectors must be used (see page 7). *** For detailed information concerning the connection, please refer to the instruction for use of respective drive.
  • Page 13 2nd lane Typ** RT 42 RT 42 10k * 10kW 10k * RM / RT * shunt connection RZN 4416-M by customer ** Fire detectors Only D+H system approved detectors must be used (see page 7). 13/20 RZN 4416-M Rev.:1.1...
  • Page 14 The resistor must not be used, when line connections with 2-detector dependency are employed! Connection of magnetic clamps on RZN 4416-M magnetic clamp interrupter Magnetic clamps 24V (max. 500mA overall power)
  • Page 15 2 line lanes with M M M M M M 3 drives each on 75 m line as derivation, 4x2,5² and 1 line lane with 2 drives on 200 m line. Observe 4 wires for derivation! 15/20 RZN 4416-M Rev.:1.1...
  • Page 16 Connect Mains still not available or line switch accumulator lines control on "0" or one of fuses faulty. lightens? Performance check alarm/reset and ventilation Smoke vent flap opens and Possibly change poles in drive. closes? 16/20 RZN 4416-M Rev.:1.1...

  • Page 17: Encode Of Line/ Group / Control Panel

    (e.g. in case of an interrupted control line). Switch 8 on ON = Alarm re-clocking The smoke vent is triggered for a duration of 30 minutes in intervals of 2 minutes according to VdS 2581. See page 6 about this 17/20 RZN 4416-M Rev.:1.1...
  • Page 18 Switch 6 on ON = LED Test / Reset WDT error (Watch Dog Timer) Actuate DIP-switch (ON / OFF). LED’s will light up for 3 seconds in control panel Switch 7 idle Switch 8 idle 18/20 RZN 4416-M Rev.:1.1...

  • Page 19: Starting

    Duty cycle in OPEN-direction Group CLOSED in case of alarm Group fault on alarm Alarm re-clocking Line 2 on group 3 Central alarm Power failure-CLOSED Bus Control Idle LED Test / Reset WDT error (watch dog timer) Idle Idle 19/20 RZN 4416-M Rev.:1.1...

  • Page 20: Examination

    All sizes in millimetre • Rights to technical modifications reserved. • Reprinting and phototechnical 20/20 RZN 4416-M Rev.:1.1 reproduction also in extracts has to be expressively authorized by D+H Mechatronic AG.
