Instruction for use
Safety system protects human life and material assets!
Once a year functional testing by a specialist company authorized by the manufacturer.
Green control diodes in the buttons must constantly be on,
Repair power failure at once. Emergency power supply for 72 hours.
Guarantee
There are
2 years
guarantee for all D+H products from date of verified handing over of the system
up to maximal 3 years after date of delivery, when mounting and starting has been carried out by a
D+H authorized
distributor.
D+H guarantee is expired in case of connection of D+H components with external systems or
with mixing of D+H products with parts of other manufacturers.
D+H Mechatronic AG • Georg-Sasse-Str. 28-32 •

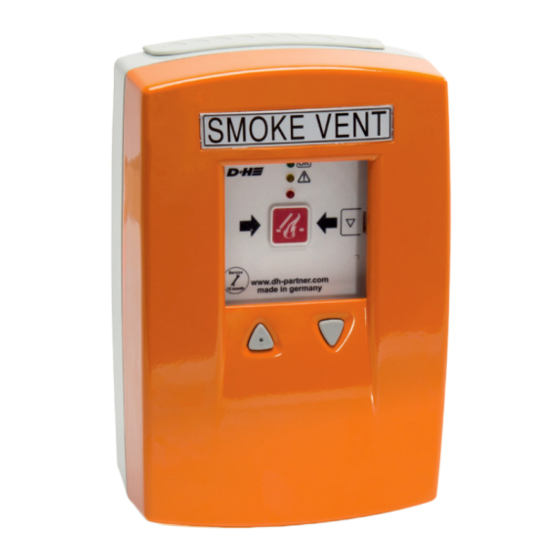

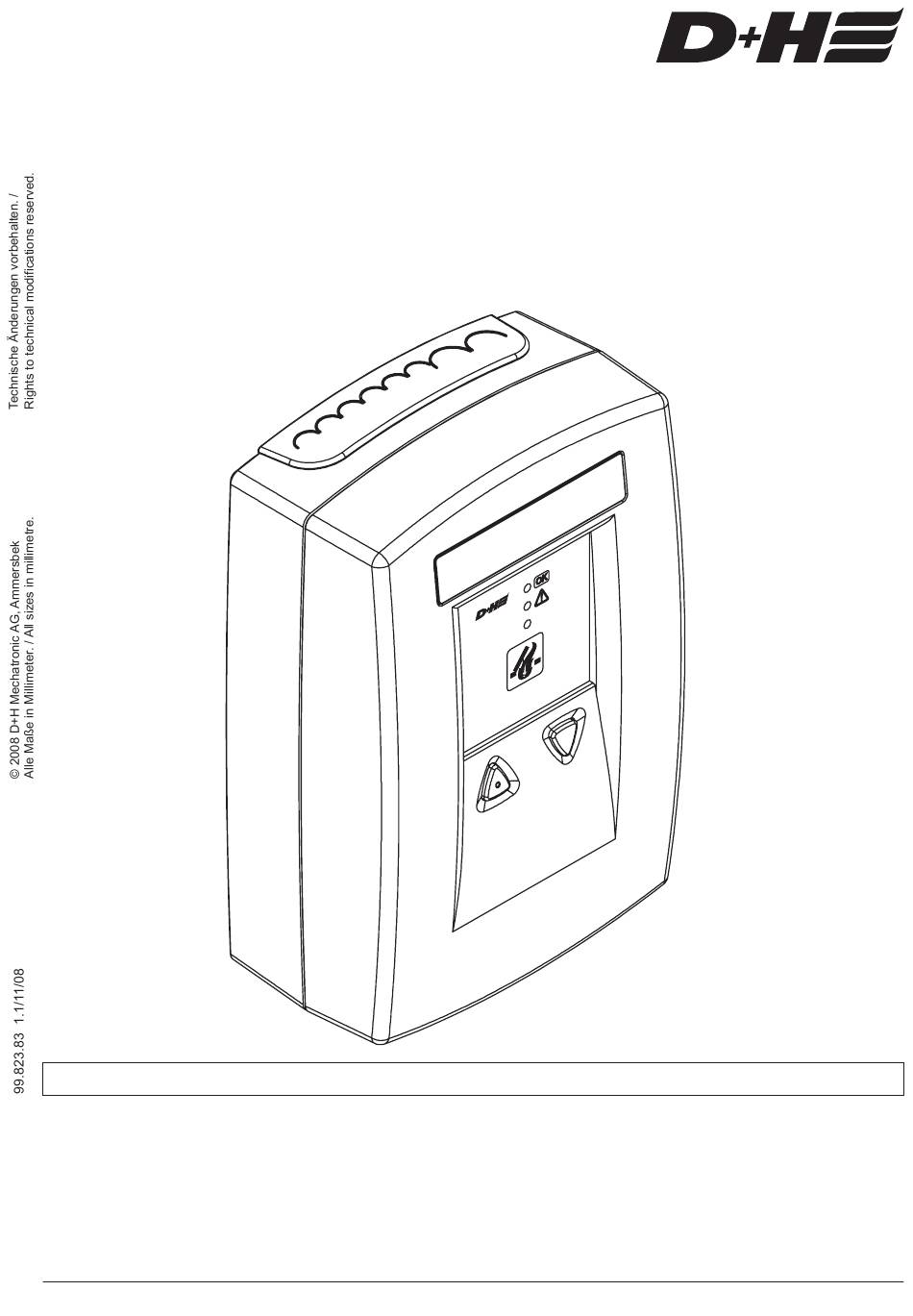

Smoke vent button control panel RZN 4503-T
Connection, mounting and functional testing by a
specialist company authorized by the manufacturer.
otherwise see "Information for Starting".
D-
22949 Ammersbek • Tel.
t
t
e n
e n
e v
e v
o k
o k
s m
s m
+49
40-605 65 239 • Fax
+49
40-605 65 254 •
www.dh-partner.com
1/12
Advertisement
Table of Contents
Related Manuals for D+H RZN 4503-T
Summary of Contents for D+H RZN 4503-T
-
Page 1: Guarantee
3 years after date of delivery, when mounting and starting has been carried out by a D+H authorized distributor. D+H guarantee is expired in case of connection of D+H components with external systems or with mixing of D+H products with parts of other manufacturers. 1/12 D+H Mechatronic AG •... -
Page 2: Table Of Contents
The respective current D+H maintenance tion standby : < 5 W instructions should be followed. Interfering A D+H authorised company has been specially emission : EN 61000-6-3 (08.02) trained by D+H for carrying out this Res. to jamming : EN 61000-6-2 (08.02) -
Page 3: Introduction
Only regular and professional maintenance guarantees the necessary and permanent functional safety. Maintenance and installation of smoke and heat ventilation systems and system components constructed and distributed by D+H Mechatronic AG should be carried out by authorised companies. All D+H Mechatronic AG partners are qualifyed as authorised companies, which regularly take part at in-house trainings to ensure their qualification and experience. -
Page 4: Overview Operating Elements
Overview Reset line LED-battery fault LED group fault LED line fault LED earthfault LED mains system O.K. LED general fault www.dh-partner.com DIP switch (factory-set see p. 9 and 11) LED-alarm Service Service alarm button Service alarm reset button www.dh-partner.com 12 month 12 month ventilation button OPEN ventilation button CLOSE... -
Page 5: Operating
RZN 4503-T Operation Release in case of alarm Manual opening by smoke vent button: RZN / RT RAUCHABZUG RAUCHABZUG Automatic opening by fire detector: RZN / RT RAUCHABZUG RAUCHABZUG Automatic opening by external control (e. g. fire alarm control panel (FACP)):... - Page 6 Automatic opening by external control: hold for OFF / DIP-switch S1 shortly tap for ON (page 8) * function is deactivatable by D+H PDA service tool In case of automatic release by external control (e. g. FACP): 6/12 99.823.83 Rev.: 1.1...
- Page 7 RZN 4503-T peration (continuation) Emergency closing In case of power failure: In case of non-resettable alarm: DIP-switch S1 (page 8) customer service Day-to-day ventilation RAUCHABZUG RAUCHABZUG RAUCHABZUG Service Service Service 12 month 12 month www.dh-partner.com 12 month 12 month www.dh-partner.com...
-
Page 8: Extended Functions
If the vent button is actuated in direction OPEN, the drives/ NSHEVs S1.5 OFF = deactivated open for 30 s (factory-set). This running time can be edited by D+H PDA servicetool. Only possible in conjunction with storage operation in CLOSE-direction. -
Page 9: Leds Und Functions
The signalling relay features the following signals: Programmable by pre-alarm, terminated alarm, delayed alarm D+H Distributor with general fault, accumulator fault, line fault, group fault, power failure D+H PDA servicetool earth fault, passing on of "central CLOSE", "Reset Alarm" as pulse, group closed longer = x s (factory-set: signalling relais 1="alarm"... -
Page 10: Cable Und Emergency Supply
Connecting load: 100 VA 24 V - Emergency Supply Emergency power supply for 72 hours. Use VdS and D+H approved storage batteries only. 1 x min. 12 V / 3.2 Ah (Type 8) If alarm devices are connected: Total current of 3 A must not be exceeded. If necessary, reduce drive current. Emergeny power supply time of 72 hours can be shorter in case of fire alarm. -
Page 11: Starting
Information for Starting Carry out the following sight and performance checks to switch on the smoke and heat vent control panel. Partial or incomplete connection of components can cause malfunction. All cables Check the following connections: mains 230 V, drives, connected? smoke vent buttons, if necessary fire detectors and vent buttons. -
Page 12: Examination
Eliminate failings at once. Keep control book. Preparation: Automatic fire detectors: Notify user that the system is out of operation Release smoke detector individual by D+H before starting with inspection. smoke detector tester, as an alternative by Notify user about false alarms. - Page 13 (mm²) *2 Adern je Antriebsleitung parallel schalten. / *Connect in parallel 2 wires for each drive line D+H Mechatronic AG • Georg-Sasse-Str. 28-32 • 22949 Ammersbek • Tel. 40-605 65 239 • Fax 40-605 65 254 • www.dh-partner.com...
- Page 14 / optional > RM / RT RZN 4503-T * nur bei / only at RZN 4503-T RT 4x-H D+H Mechatronic AG • Georg-Sasse-Str. 28-32 • 22949 Ammersbek • Tel. 40-605 65 239 • Fax 40-605 65 254 • www.dh-partner.com...
