IMPORTANT
IMPORTANT
SCAN THE QR CODE OR VISIT THE
WEBSITE TO VIEW THE MOST RECENT
VERSION OF THE MANUAL
WWW.MONTIGO.COM/PRODUCT-GUIDES
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury,
death, or property damage.
— Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any
phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a qualified
installer, service agency or the gas fitter.
Installation & Maintenance Manual
Divine Outdoor

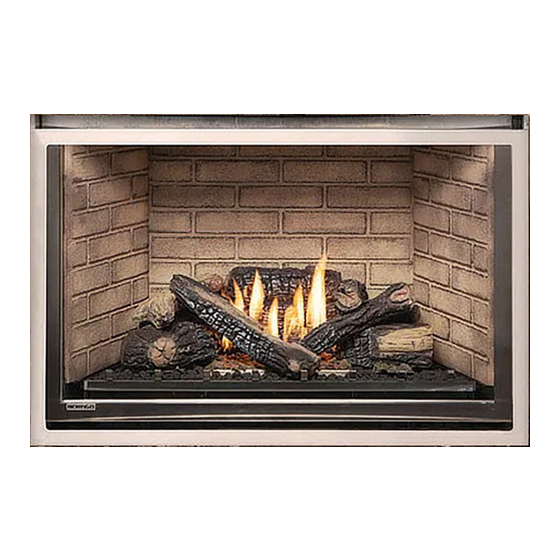

OUTDOOR RESIDENTIAL GAS FIREPLACE
H34VO*,H34VO*E
Natural Gas or Propane Gas
H38VO*,H38VO*E
Natural Gas or Propane Gas
Installation and service must be performed by a qualified installer,
®
service agency or the gas fitter. Check local codes and read all
C
US
This appliance can produce carbon monoxide which has
no odor. Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a
camper, tent, car or home.
Installer: Leave this manual with the appliance. Please refer to the
Montigo website for the most current version of the fireplaces manual
Consumer: Retain this manual for future reference. Please refer to the
Montigo website for the most current version of the fireplaces manual
Some materials used in the manufacturing process of this product can
expose you to Benzene which is known in the State of California to
cause cancer and birth defects or other reproductive harm. For more
HL38VO*,HL38VO*E
Natural Gas or Propane Gas
H42VO*,H42VO*E
Natural Gas or Propane Gas
instructions prior to installation.
WARNING
FOR OUTDOOR USE ONLY.
WARNING
CARBON MONOXIDE HAZARD
NOTICE
WARNING
information go to www.P65warnings.ca.gov
XG0150
Advertisement
Table of Contents
Related Manuals for Montigo Divine H34VO E Series
Summary of Contents for Montigo Divine H34VO E Series
- Page 1 Installer: Leave this manual with the appliance. Please refer to the Montigo website for the most current version of the fireplaces manual Consumer: Retain this manual for future reference. Please refer to the Montigo website for the most current version of the fireplaces manual...
-
Page 2: Table Of Contents
Divine Outdoor Gas Fireplace NOTICE You must read and understand this manual prior to installation, operation or troubleshooting this appliance. Please retain this owner’s manual for future reference and maintenance. Table of Contents Table of Contents Introduction ................3 NOTICE Models ................3 Installation Installer: Leave this manual with the appliance. - Page 3 Congratulations on your purchase of a Montigo Fireplace. body in which the appliance is being installed. With over 30 years of experience, Montigo is committed to providing Warranty and Installation Information: (See Appendix B) you with a gas fireplace that is not only a beautiful addition to your...
-
Page 4: Installation
Divine Outdoor Gas Fireplace Installation Installation Installation Checklist IMPORTANT MESSAGE: SAVE THESE INSTRUCTIONS „ Determine the desired install location of your fireplace. The Divine Outdoor Ventless fireplace must be installed in accordance with these Instructions. Carefully read all the Instructions in this manual See Section 1, Dimensions on Page 5, and refer to the Framing „... -
Page 5: Section 1: Installation Overview And Product Dimensions
Divine Outdoor Gas Fireplace Installation Installation Section 1: Installation Overview and Product Dimensions Please review the Installation Checklist for general information on preparing for a successful installation of your fireplace. plumbing. Safety, as well as efficiency of operation, should be considered The Divine VO fireplace may be installed in any location that maintains when selecting the fireplace location. - Page 6 Divine Outdoor Gas Fireplace Installation Installation Section 2: Framing Choosing The Fireplace Location The Divine Outdoor VO may be installed in an outdoor setting such as a patio or balcony. Choose a location that maintains proper clearance to combustibles as noted in the clearances chart. Note: Divine Outdoor VO may not be recessed into the exterior wall.
-
Page 7: Clearances
Divine Outdoor Gas Fireplace Installation Installation Section: Warning: When covering the upper metal portion of the fireplace with a non- combustible material Please Note: The decorative facing materials Important may be subject to temperatures in excess of 250° F. This should be considered when selecting facing materials. -
Page 8: Finishing Around The Fireplace
Figure 3b. Back † † † 1" 1" 1" * Shaded area must be non-combustible. Either Montigo supplied nailing flange, and Mantel 12" 12" 12" cement board or other equivalent Ceiling 36" 36" 36"... -
Page 9: Section 4: Wiring
The Divine Outdoor's gas valve, located behind the lower trim, may be connected to a wall switch. The valve generates its own power on Montigo Part No. #RPOVO must be encased in a water-tight a millivolt circuit. Use only low voltage wire, and DO NOT connect electrical box OR ensure the box is installed in a dry location and any external power to it. -
Page 10: Section 5: Installing The Gas Line
DO NOT connect „ Montigo requires a service shut off valve be located in an the fireplace to pressures in excess of 1/2lb. This will damage accessible location to isolate the gas supply. -
Page 11: Section 7: Installing And Removing The Door
Divine Outdoor Gas Fireplace Installation Installation Section 7: Installing & Removing the Door Section: Removing the door: The Divine Outdoor VO doors are removed in a few simple steps. Follow Step 5: these below to remove the Horizontal access panel, unlatch the door Ensure the tool is firmly buckles and, remove the door. -
Page 12: Section 8: Installing The Accessories
Divine Outdoor Gas Fireplace Installation Installation Section: Section 8: Installing the Accessories Installing the H34VON Log Set Step 4. Place the top left log as shown in figure 8d. A flat area is provided on the front left log, and a notch in the Rear bottom log, as Installing the Logs: shown in figure 27c. -
Page 13: Installing The H34Von Log Set
Divine Outdoor Gas Fireplace Installation Installation Section: Installing the Log set: The H38VON are supplied with a six ceramic fibre log logset. Unpack the logs and handle them very carefully. Step 1. Remove the glass door as described in the previous Instructions. Log E Air Inlets Rear / Bottom Log... -
Page 14: Installing The H42Von Log Set
Divine Outdoor Gas Fireplace Installation Installation Section: Step 5. Place the Centre Front log , Figure 10d below, as shown Installing the Log set: using the notch cast in the Bottom Rear log as shown in figure The H42VON* is supplied with a seven ceramic fibre log logset. Unpack 10c above. -
Page 15: Installing The Hl38Vol Firestones
Divine Outdoor Gas Fireplace Installation Installation Installing the Firestones: Screen Dimensions N.G. & Propane. Fireplaces Screen Dimensions Propane HL38VOL* Fireplaces, has the option of installing the optional cultured rocks or firestones. As described below, CAUTION, the firestones H34VON 31¼" 33⅞" 29" 19⅜" 1⅜" 2⅜" 23"... - Page 16 Divine Outdoor Gas Fireplace Installation Installation Section: Tools Required • Drill / Driver • Phillips Screwdriver 1/4" Hex driver • 1/8" drill bit (Optional) • Step 3). Align the cutout on the bottom of the left bracket Installing the Screen with the lower, left corner of the fireplace.
- Page 17 Divine Outdoor Gas Fireplace Installation Installation Section: Step 7). Secure the bottom of the screen using two stain- Step 5). Insert three self drilling screws on the left side less steel machine screws provided. using the predrilled holes in the mounting brackets as a guide.
- Page 18 Divine Outdoor Gas Fireplace Installation Installation Section: Removing the door with the screen kit installed: Step 1). Remove the screen (see Section 1: Screen Installation) Step 2). Detatch the lower portion of the door using door latches and tilt outwards (See Fireplace Installation & Maintenance Manual for further information.
-
Page 19: Section 9: Operation
NOTE: This unit is equipped with an ignition system Gas To Appliance" and call your service that lights the pilot burner automatically. Do not technician or Montigo dealer. attempt to light the pilot by hand. Robert Shaw Valve SIT 820 HI/LO Valve... - Page 20 NOTE: This unit is equipped with an ignition system Gas To Appliance" and call your service that lights the pilot burner automatically. Do not technician or Montigo dealer. attempt to light the pilot by hand. This unit is equipped with advanced safety controls including pre and post purge timers.
-
Page 21: Maintenance
Divine Outdoor Gas Fireplace Maintenance Maintenance Burner Adjustment Lighting Instructions The H-Series VO is equipped with an adjustable burner, allowing you See pages 14 to 16. to raise or lower the flames. To adjust the flames, locate the black knob General marked 'Hi-Lo', in the centre of the gas control valve (See Figure 11). -
Page 22: Replacement Parts
Divine Outdoor Gas Fireplace Replacement Parts Replacement Parts H34VON H38VON H42VON NG Gas Valve RGC1006 RGC1006 RGC1006 LP Gas Valve RGC1005 RGC1005 RGC1005 NG Pilot RPA020 RPA020 RPA020 LP Pilot RPA021 RPA021 RPA021 Burner NG RBH3401 RBH3801 RBH4201 Burner LPG RBH3402 RBH3802 RBH4202... -
Page 23: Appendix
(collectively referred to herein as "The Companies"), warrants the If the components of the appliance covered by this warranty Montigo gas appliance (referred to herein as 'the appliance') to are found to be defective within the time frame stated (see The... - Page 24 Montigo dealer (www.Montigo.com) or contact Montigo direct at techsupport@ montigo.com. Ensure you have your sales receipt and the model and serial number of your appliance. DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF If you cannot locate the installing dealer, or nearest dealer/ distributor, you must notify The Companies in writing.
- Page 25 Divine Outdoor Gas Fireplace Maintenance Maintenance Section: Appendix C: Amendment (Gas Fireplace / Equipment sold in the State of Massachusetts) 5.08: Modifications to NFPA-54, Chapter 10 (1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as 4. INSPECTION. The state or local gas inspector of the side wall follows: horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes...
- Page 26 Divine Outdoor VO Divine Outdoor VO Outdoor Gas Fireplace Outdoor Gas Fireplace XG0150 - 140707.2...
