TONNEAU COVER FITTING INSTRUCTION
TONNEAU COVER TO SUIT TRIPLE M 2400 X 1712MM
BASIC TOOL REQUIRE
-
Rivet gun, Drill, 4.5mm Drill Bit, Measuring Tape, Silicon Sealant, Anti-Corrosive Primer,
Marking Pencil
CONTENTS
1 x Tonneau Cover
2 x Tonneau Support Bar
2 x Aluminium Ropetrack
1 x Fitting Instruction
1. INSTALLATION PROCEDURE
Note: Remove swarf and apply rust inhibitor to all drilled holes prior to riveting.

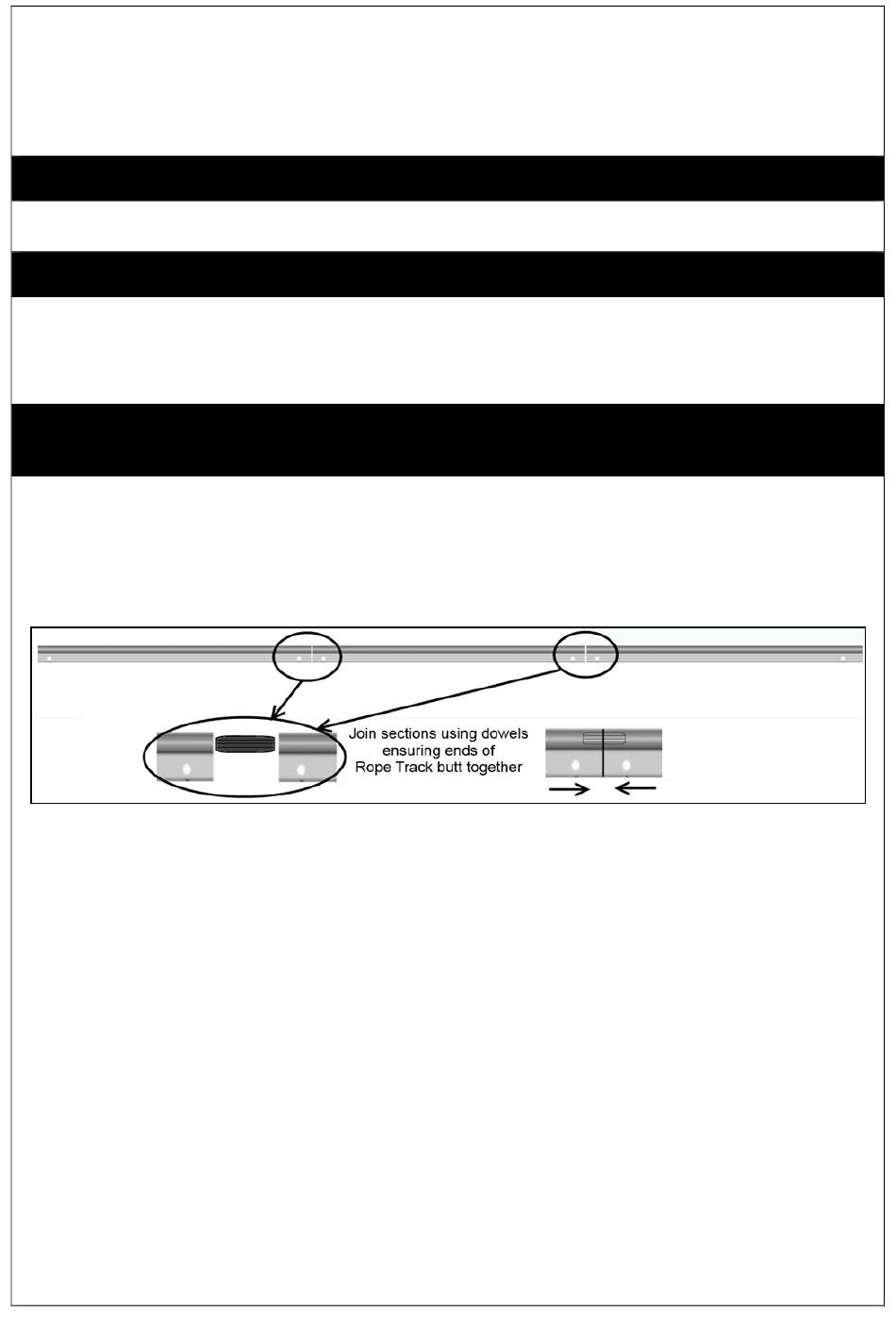

1. Join 2 or 3 pieces of rope track with dowel supplied. Place 1 piece of dowel in each end of the
joined rope track.
2. Place the rope track with dowel placed in the ends of the rope track on the top edge of the
drop sides and push up against the front vertical edge of the tray. This is to ensure the rope
track is at the correct height and the front bead of the Tonneau cover can slide through from
the side. Refer Diagram A.
3. Using a 4.5mm drill bit, drill six holes through the aluminium rope track and into the front face
of the tray; one at 50mm from either edge, with the others evenly spaced between the outer
two positions. Remove rope track and run a bead of silicone along the flat edge of the rope
track, then rivet the aluminum rope track into position.
4. To install your support bar. Measure the inside length of the tray. If you have been supplied 1
bar, halve this measurement and that is the support bar position. If you have been supplied 2
bars divide the measurement by 3 and these are the support bar positions. Centrally locate
each bar bracket over these positions 5mm down from the top edge, drill and rivet the bar
brackets into place. Repeat for the remaining bar brackets on both sides of the tray. Fit the
Tonneau support bar/s to the bar brackets. (See Multi-Fit Bar Instruction overleaf)
5. Slide the front of the Tonneau cover through the aluminum rope track section. Neatly spread
the Tonneau cover over the support bar/s, so it is centered and fully covers the tray.
PART NUMBER: ATB01152
4 x Bar Brackets
43 x Rivets
4 x Dowels
27 x Rope Buttons
