AUSSIE TONNEAU ATB01105 Fitting Instructions

TONNEAU COVER FITTING INSTRUCTIONS

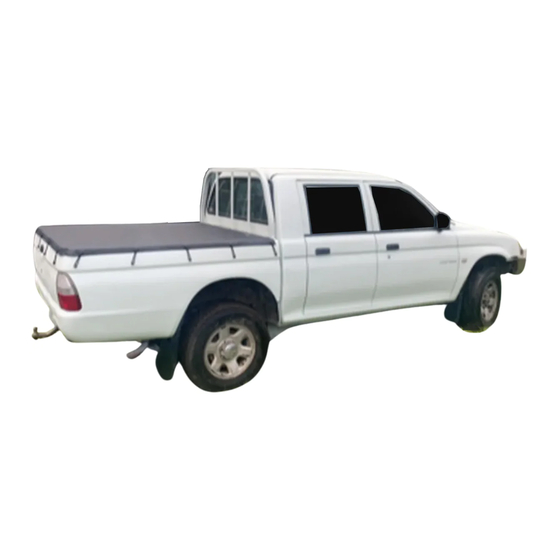

Mitsubishi Triton MK Dual Cab With Headboard
BASIC TOOLS REQUIRED
- Rivet gun, Drill, 4.5mm Drill bit, Measuring tape, Silicon sealant, Anti-corrosive primer.
CONTENTS
1 X Tonneau cover
2 X Bar Brackets
14 X Buttons
Some items in the fitting kit may not be needed. All fitting kits are weighed to ensure accurate
quantities.

1. INSTALLATION PROCEDURE

Note: To prevent corrosion apply an anti-corrosive primer to all holes drilled
1. Using two pieces of dowel, join the 3 aluminium rope tracks together. Place the other 2 pieces
of dowel in the ends of the now joined rope track.
2. Rest the aluminum rope track on the side rails as Shown in Diagram A, and push forward to the
vertical face of the tub.
3. Using a 4.5 mm drill bit, drill 6 holes 50mm from the end of each of the aluminium rope tracks
into the front of tub.
4. Once all the holes have been drilled, remove the dowelling pieces. Squeeze silicon along the
back of the rope tracks and pop rivet into place.
5. To fit bar brackets measure 748mm back from the inside front edge at the top of the tub and
place them as shown in diagram A. (5mm down from top edge of tub). Drill and rivet using
two large rivets for each Bar Bracket. Install support bar according to supplied instructions.
6. To fit round body hooks measure 95mm down from the top edge and line up each hook
individually to each bunji loop starting with the two either side of the tailgate handle and
working your way around to the front, drill and rivet buttons alternating from side to side.
1997- July 2006
Part number: ATB01105
3 X Aluminium rope track
1 X Tonneau support bar
26 X Large rivet
4 X Pieces of dowel
