AUSSIE TONNEAU ATB01340 Fitting Instruction

Great wall v200 / v240 dual cab with sport bar

TONNEAU COVER FITTING INSTRUCTION

BASIC TOOLS REQUIRED

Drill, 4mm Drill Bits, Rivet Gun, Marking Pencil/ Pen

CONTENTS

1 x Tonneau Cover

1 x Tonneau Support Bar

1 x Aluminium Ropetrack with Shim

1x Fitting Instruction

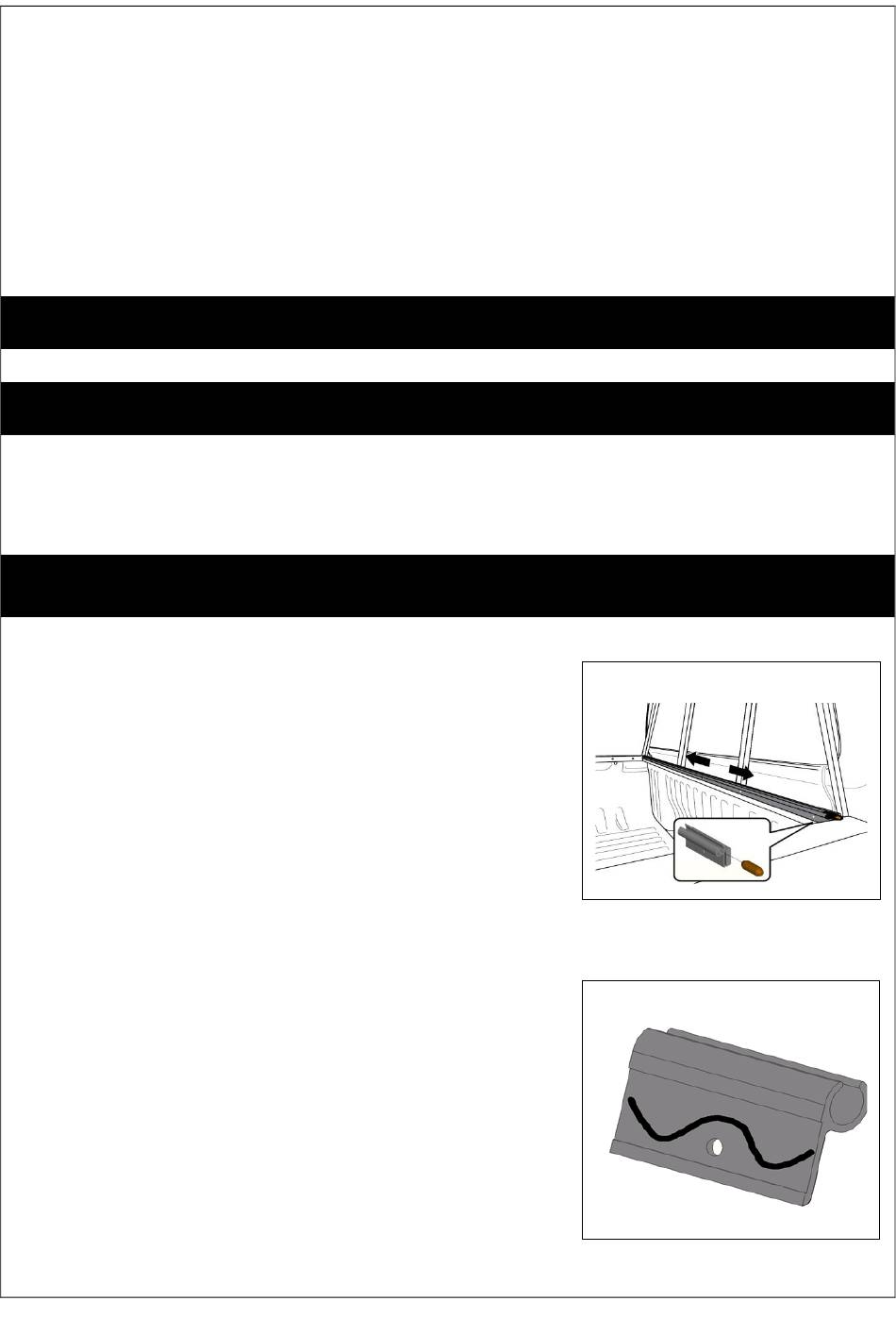

1. INSTALLATION PROCEDURE

1. Position the 100mm angle just inside of the front corner, 5mm

down. Drill two holes through angle into front wall of tray and

rivet into place.

2. Place the 2 pieces of dowel in the ends of the rope track.

3. Rest the aluminium rope track on the side, and push forward to

the vertical face of the tub. See Figure 1

4. Using a 4mm drill bit, drill a hole 15mm from each end of the

aluminium rope track, 1 hole in the centre of the rope track and

1 hole each side in the middle of the centre.

5. Once all the holes have been drilled, remove the pieces of dowel.

Squeeze silicon along the back of the rope tracks and pop rivet

into place. See Figure 2

GREAT WALL V200 / V240

DUAL CAB WITH SPORT BAR

2009 – 2015

PART NO: ATB01340

2 x Bar Brackets

34 x Rivets

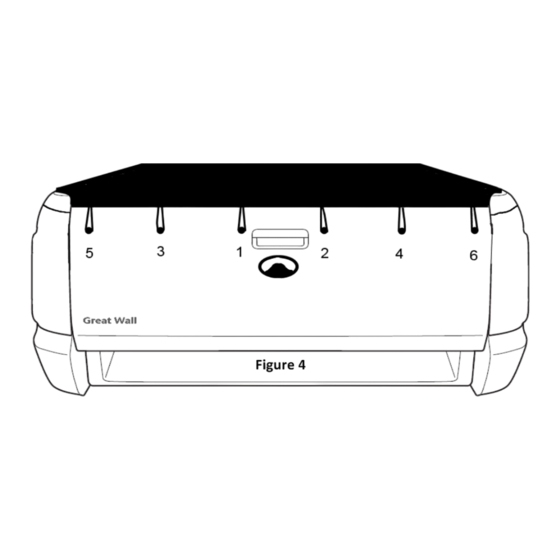

16 x Rope Buttons

2 x Dowels

2 x 100mm Angle

Figure 1

Figure 2
