Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
http://www.tek.com/keithley
Introduction

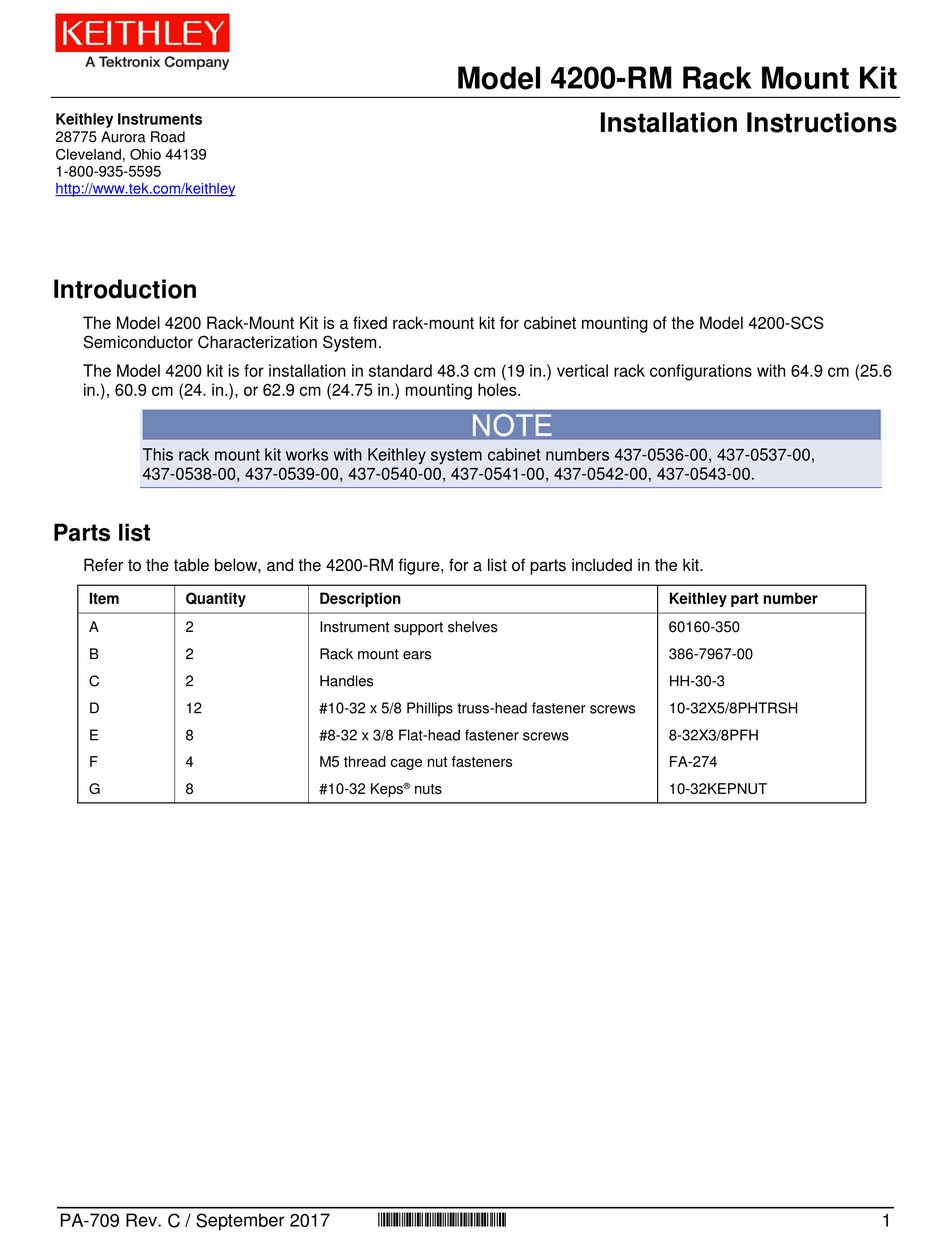

The Model 4200 Rack-Mount Kit is a fixed rack-mount kit for cabinet mounting of the Model 4200-SCS
Semiconductor Characterization System.
The Model 4200 kit is for installation in standard 48.3 cm (19 in.) vertical rack configurations with 64.9 cm (25.6
in.), 60.9 cm (24. in.), or 62.9 cm (24.75 in.) mounting holes.
This rack mount kit works with Keithley system cabinet numbers 437-0536-00, 437-0537-00,
437-0538-00, 437-0539-00, 437-0540-00, 437-0541-00, 437-0542-00, 437-0543-00.
Parts list
Refer to the table below, and the 4200-RM figure, for a list of parts included in the kit.
Item
Quantity
A
2
B
2
C
2
D
12
E
8
F
4
G
8
PA-709 Rev. C / September 2017
Model 4200-RM Rack Mount Kit
Description
Instrument support shelves
Rack mount ears
Handles
#10-32 x 5/8 Phillips truss-head fastener screws
#8-32 x 3/8 Flat-head fastener screws
M5 thread cage nut fasteners
#10-32 Keps
®
nuts
*PPA-709C*
Installation Instructions
Keithley part number
60160-350
386-7967-00
HH-30-3
10-32X5/8PHTRSH
8-32X3/8PFH
FA-274
10-32KEPNUT
1
Advertisement
Table of Contents
Related Manuals for Tektronix KEITHLEY 4200-RM
Summary of Contents for Tektronix KEITHLEY 4200-RM
- Page 1 Model 4200-RM Rack Mount Kit Installation Instructions Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 http://www.tek.com/keithley Introduction The Model 4200 Rack-Mount Kit is a fixed rack-mount kit for cabinet mounting of the Model 4200-SCS Semiconductor Characterization System. The Model 4200 kit is for installation in standard 48.3 cm (19 in.) vertical rack configurations with 64.9 cm (25.6 in.), 60.9 cm (24.
- Page 2 Model 4200-RM Rack Mount Kit Cabinet preparation To prepare the cabinet: 1. Select a location in the cabinet. 2. Hold the 4200-SCS up to the selected location in the cabinet. 3. Determine and mark where the rack mount ears (item B) and instrument support shelves (item A) will be installed.
- Page 3 Model 4200-RM Rack Mount Kit 4200-SCS preparation To prepare the 4200-SCS for mounting: 1. Remove the feet. Remove rubber plug from bottom of the foot. You may need to insert a small screwdriver along the side and pry out the plug. Do this for all four feet. 2.
- Page 4 Model 4200-RM Rack Mount Kit Figure 3: Assembled 4200-RM PA-709 Rev. C / September 2017...
- Page 5 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 6 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. The CAUTION heading with the symbol in the user documentation explains hazards that could result in moderate or minor injury or damage the instrument. Always read the associated information very carefully before performing the indicated procedure.
