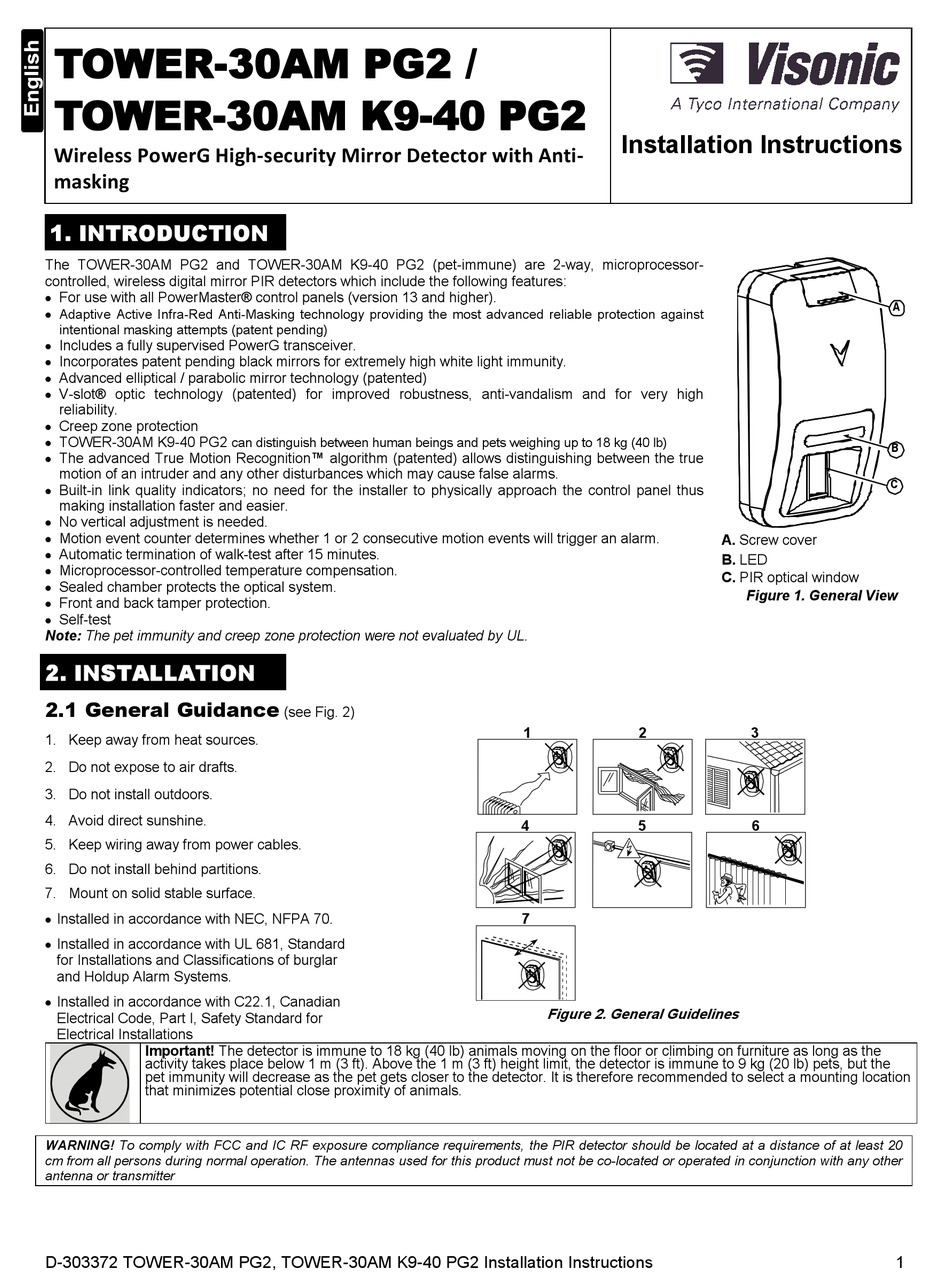

TOWER-30AM PG2 /
TOWER-30AM K9-40 PG2
Wireless PowerG High‐security Mirror Detector with Anti‐
masking
1. INTRODUCTION
The TOWER-30AM PG2 and TOWER-30AM K9-40 PG2 (pet-immune) are 2-way, microprocessor-
controlled, wireless digital mirror PIR detectors which include the following features:
 For use with all PowerMaster® control panels (version 13 and higher).

Adaptive Active Infra-Red Anti-Masking technology providing the most advanced reliable protection against
intentional masking attempts (patent pending)
 Includes a fully supervised PowerG transceiver.
 Incorporates patent pending black mirrors for extremely high white light immunity.
 Advanced elliptical / parabolic mirror technology (patented)
 V-slot® optic technology (patented) for improved robustness, anti-vandalism and for very high
reliability.
 Creep zone protection
 TOWER-30AM K9-40 PG2
 The advanced True Motion Recognition™ algorithm (patented) allows distinguishing between the true
motion of an intruder and any other disturbances which may cause false alarms.
 Built-in link quality indicators; no need for the installer to physically approach the control panel thus
making installation faster and easier.
 No vertical adjustment is needed.
 Motion event counter determines whether 1 or 2 consecutive motion events will trigger an alarm.
 Automatic termination of walk-test after 15 minutes.
 Microprocessor-controlled temperature compensation.
 Sealed chamber protects the optical system.
 Front and back tamper protection.
 Self-test
Note: The pet immunity and creep zone protection were not evaluated by UL.
2. INSTALLATION
2.1 General Guidance
1. Keep away from heat sources.
2. Do not expose to air drafts.
3. Do not install outdoors.
4. Avoid direct sunshine.
5. Keep wiring away from power cables.
6. Do not install behind partitions.
7. Mount on solid stable surface.
 Installed in accordance with NEC, NFPA 70.
 Installed in accordance with UL 681, Standard
for Installations and Classifications of burglar
and Holdup Alarm Systems.
 Installed in accordance with C22.1, Canadian
Electrical Code, Part I, Safety Standard for
Electrical Installations
Important! The detector is immune to 18 kg (40 lb) animals moving on the floor or climbing on furniture as long as the
activity takes place below 1 m (3 ft). Above the 1 m (3 ft) height limit, the detector is immune to 9 kg (20 lb) pets, but the
pet immunity will decrease as the pet gets closer to the detector. It is therefore recommended to select a mounting location
that minimizes potential close proximity of animals.
WARNING! To comply with FCC and IC RF exposure compliance requirements, the PIR detector should be located at a distance of at least 20
cm from all persons during normal operation. The antennas used for this product must not be co-located or operated in conjunction with any other
antenna or transmitter
D-303372 TOWER-30AM PG2, TOWER-30AM K9-40 PG2 Installation Instructions
can distinguish between human beings and pets weighing up to 18 kg (40 lb)
(see Fig. 2)
Installation Instructions
1 2
4 5
7
Figure 2. General Guidelines
A
B
C
A. Screw cover
B. LED
C. PIR optical window

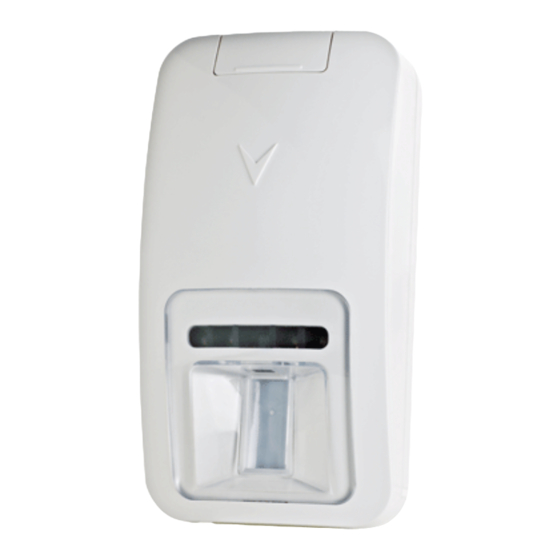

Figure 1. General View
3
6
1
