Tyco Visonic PowerG NEXT CAM PG2 Installation Instructions Manual

NEXT CAM PG2,
NEXT CAM-K9 PG2
PowerG, Wireless, [Pet-immune] PIR Motion detector
with Integrated Camera

1. INTRODUCTION

The Next CAM PG2 / Next CAM-K9 PG2 is a 2-way, microprocessor-
controlled, wireless digital PIR detector with integrated camera and
microphone for alarm verification. Activated upon PIR detection or
upon demand, the Next CAM PG2 / Next CAM-K9 PG2 sends clear
images with optional audio to the Monitoring Station. It thus enables
accurate status assessment of the premises.
The PIR detector's features are as follows:
 For use with all PowerMaster® control panels (version 15 and
higher).
 Up to 12 meters (40 ft).
 90 angle camera overlaps PIR field of view
 10 meter (33 ft) range in complete darkness overlaps PIR range
 Wall creep zone protection.
 For pet immune version - Target Specific Imaging™ (TSI) technology
is used for distinction between human beings and pets weighing up to
38 kg (85lb).
 Includes a fully supervised PowerG transceiver.
 True Motion Recognition™ algorithm.
 In Next CAM PG2, built-in link quality indicators; no need for the
installer to physically approach the control panel thus making
installation faster and easier.
 No vertical adjustment is needed.
 Temperature compensation.
 Sealed chamber protects the optical system from insects.
 Front cover and back tamper, for improved tamper protection.
 White light protection.
The camera's features are as follows:
 Optional AC power
 Up to 10 cameras
 Optional audio with images for listen -in
 Images multiplexed from all cameras
 Color and back & white images
 Auto-setup (brightness, contrast)
 Camera tuning by simple walk-test

2. INSTALLATION

2.1 General Guidance
1. Keep away from heat sources.
2. Do not expose to air drafts.
3. Do not install outdoors.
4. Avoid direct sunshine.
5. Keep wiring away from power cables.
6. Do not install behind partitions.
WARNING! To comply with FCC and IC RF exposure compliance requirements, the PIR detector should be located at a distance of at
least 20 cm from all persons during normal operation. The antennas used for this product must not be co-located or operated in
conjunction with any other antenna or transmitter
1 2

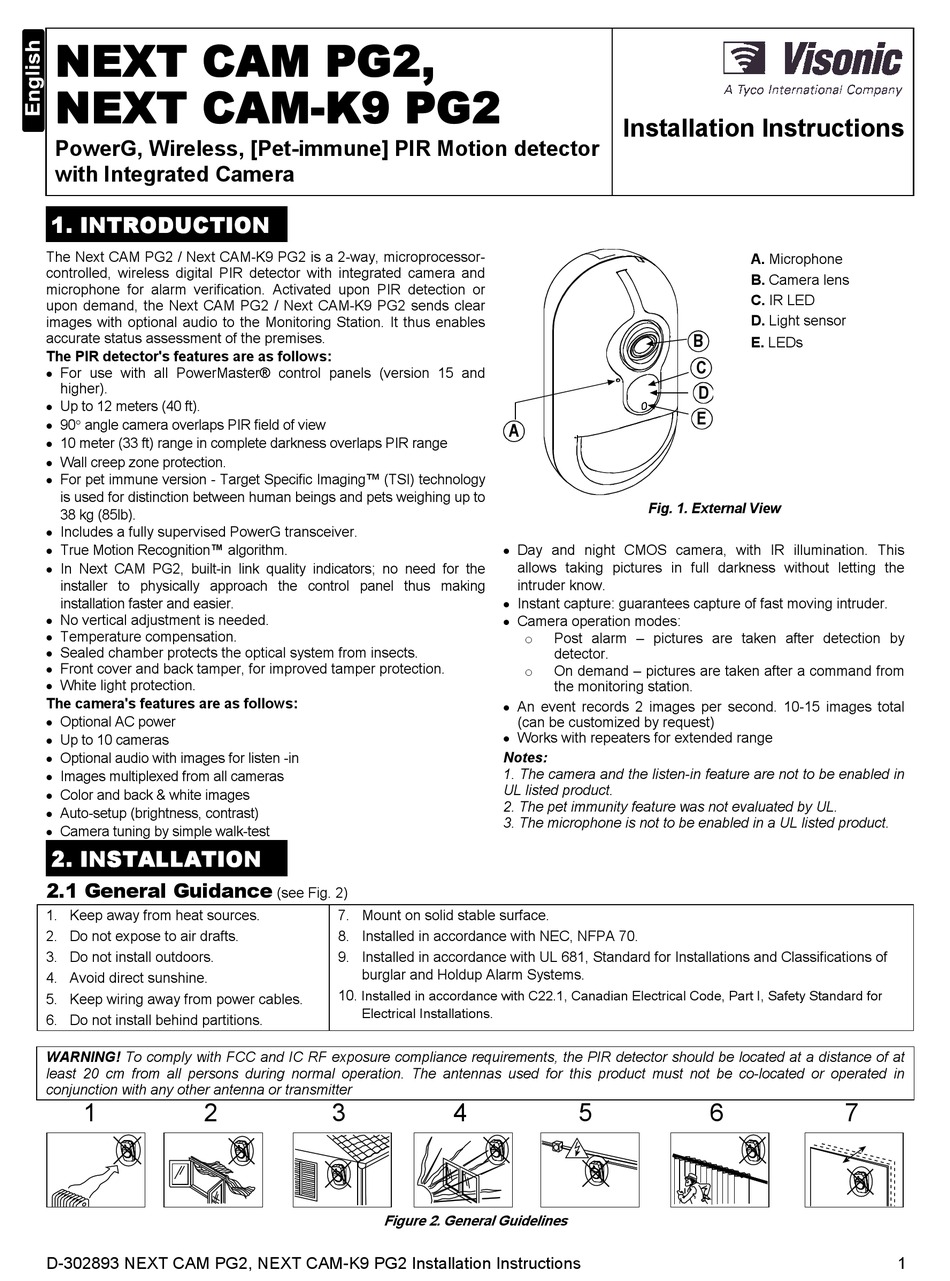

D-302893 NEXT CAM PG2, NEXT CAM-K9 PG2 Installation Instructions
(see Fig. 2)
7. Mount on solid stable surface.
8. Installed in accordance with NEC, NFPA 70.
9. Installed in accordance with UL 681, Standard for Installations and Classifications of
burglar and Holdup Alarm Systems.
10.
Installed in accordance with C22.1, Canadian Electrical Code, Part I, Safety Standard for
Electrical Installations.
3 4
Figure 2. General Guidelines
Installation Instructions
A

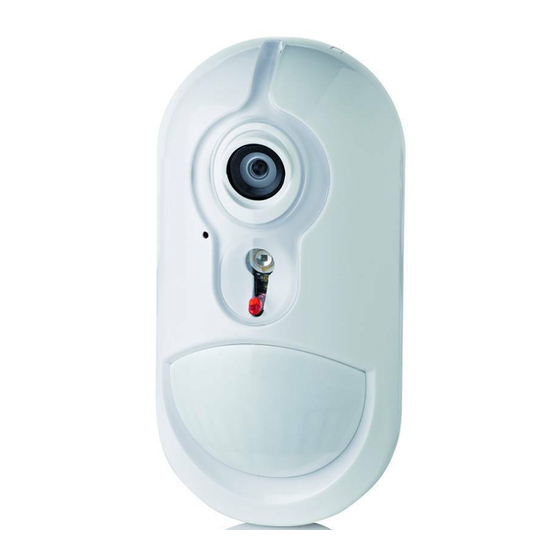

Fig. 1. External View
 Day and night CMOS camera, with IR illumination. This
allows taking pictures in full darkness without letting the
intruder know.
 Instant capture: guarantees capture of fast moving intruder.
 Camera operation modes:
Post alarm – pictures are taken after detection by
o
detector.
On demand – pictures are taken after a command from
o
the monitoring station.
 An event records 2 images per second. 10-15 images total
(can be customized by request)
 Works with repeaters for extended range
Notes:
1. The camera and the listen-in feature are not to be enabled in
UL listed product.
2. The pet immunity feature was not evaluated by UL.
3. The microphone is not to be enabled in a UL listed product.
5
A. Microphone
B. Camera lens
C. IR LED
D. Light sensor
B
E. LEDs
C
D
E
6 7
1
