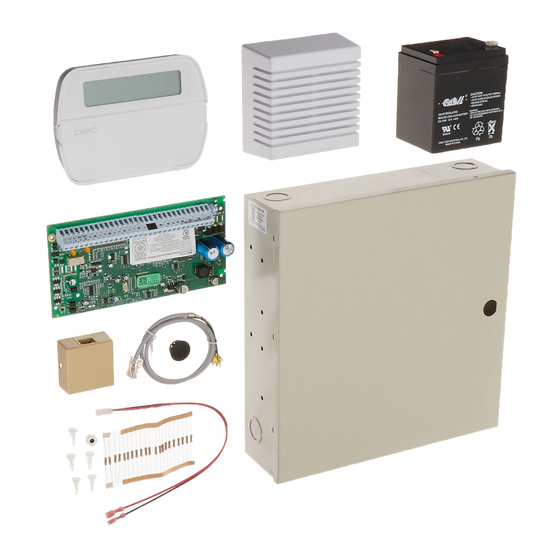

PC1616/PC1808/PC1832/PC1864
v4.7 South Africa
Installation Guide
WARNING: This manual contains information on limitations regarding product use and function and information on
the limitations as to liability the manufacturer. The entire manual should be carefully read.

Advertisement

Table of Contents
loading

Related Manuals for Tyco DSC PowerSeries PC1808

Summary of Contents for Tyco DSC PowerSeries PC1808

  • Page 1 PC1616/PC1808/PC1832/PC1864 v4.7 South Africa Installation Guide WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability the manufacturer. The entire manual should be carefully read.

  • Page 3: Table Of Contents

    Table of Contents Product Specifications .......................1 Installation & Wiring ......................2 Wiring Diagram ......................3 Keybus Wiring.......................4 Zone Wiring........................4 Zone Expanders ......................4 Bell Wiring ........................4 AUX Power Wiring .......................5 PGM Wiring ........................5 Carbon Monoxide Wiring....................5 Telephone Line Wiring ....................5 2.10 Ground ...........................6 2.11 Battery ...........................6 2.12...

  • Page 4: Product Specifications

    Product Specifications Chapter 1 Product Specifications Control and Indicating Equipment Specifica- • Recharging time 48h • Programmable recharging current: Low 400mA, High 700mA tions • Low battery trouble indication threshold 11.1V • Battery deep discharge protection (cut-off at 9.5V Zone Configuration •...

  • Page 5: Installation & Wiring

    PowerSeries - PC1616/PC1808/PC1832/PC1864 Chapter 2 Installation & Wiring This Installation Guide provides the basic installation, wiring and programming information required to program the PowerSeries PC1616, PC1808, PC1832 and PC1864 control panels. FEATURES PC1616 PC1808 PC1832 PC1864 On-board Zones Hardwired Zones 16 (1xPC5108) 16 (1xPC5108) 32(3xPC5108)

  • Page 6: Wiring Diagram

    Installation & Wiring 2.1 PC1616/1808/1832/1864 Wiring Diagram 1. Insert Stand off into cabinet 1. Insert Stand off into cabinet PC Board PC Board Stand Off Stand Off mounting hole in the desired location. mounting hole in the desired location. Snap-in-place. Snap-in-place.

  • Page 7: Keybus Wiring

    PowerSeries - PC1616/PC1808/PC1832/PC1864 2.2 Keybus Wiring The 4-wire KEYBUS (red, black, yellow and green) is the communication connection between the control panel and all modules. The 4 KEYBUS terminals of all modules must be connected to the 4 KEYBUS terminals of the main control panel. The following rules must be followed when wiring the Keybus: •...

  • Page 8: Aux Power Wiring

    Installation & Wiring 2.6 AUX Power Wiring The control panel can provide a maximum of 550mA of current for modules, powered detectors, relays, LED’s etc. If the total current required exceeds 550mA an additional power supply is required (e.g.,PC5200, PC5204). See list below. NOTE: AUX Output voltage: 12V , -15%/+10% when Input Voltage is between 85%-110% of rated value and output current between 0.0A - 0.5A max.

  • Page 9: Ground

    PowerSeries - PC1616/PC1808/PC1832/PC1864 2.10 Ground 2.11 Battery Ground Installation In accordance with EN50131-1 Standard for a Power Supply Type A rated for Grade 2 Systems, battery Tighten nut to break paint and make standby time required in the event of prime power source failure shall be 12hrs (min.). The table below is a good connection to the cabinet guide indicating maximum loads for the standby times shown.

  • Page 10: User Commands

    User Commands Chapter 3 User Commands Device Type Zone Definition 2 Door/Window Contact [01] Delay 1 3 PIR or Glassbreak [05] Interior, Stay-Away 4 Smoke Detector [88] Standard 24 Hr Fire (Wireless) 5 Pendant [16] 24 Hour Panic 8 CO Detector [81] 24 Hour CO Detection Any system keypad can be used to program or perform any keypad command.
  • Page 11 PowerSeries - PC1616/PC1808/PC1832/PC1864 Re-activate Stay/Away Zones: Press [][1] when the system is armed in the Stay mode to change the armed status to Away mode. The system will add the Stay/Away zones back into the system after the exit delay time expires. [][2] Trouble Display Refer to Appendix B –...

  • Page 12: Function Keys

    User Commands Press [][6] followed by the Master Code, then press the number corresponding to the following functions. Program Time and Date: Enter the time and date using the following format [HH:MM] [MM/DD/YY]. Program the time using military standard (e.g., 8:00 pm = 20:00 hours). Auto-arm/Auto-disarm Enable/Disable: The keypad will emit 3 rapid beeps if the Auto-arm/Auto-disarm feature is now enabled and a steady 2-second tone if it is now disabled.

  • Page 13: Programming

    PowerSeries - PC1616/PC1808/PC1832/PC1864 Chapter 4 Programming This section provides the information necessary to program all required features for a basic system as well as common applications. 4.1 Template Programming Selecting [][8] [Installer Code] [899] displays the current 5 digit template programming code. Refer to Appendix C - Template Programming for a detailed description of available templates and corresponding 5 digit codes.
  • Page 14 Programming The Armed and Ready lights indicate programming status: Armed Light ON Panel waiting for 3-digit section number If in module programming, waiting for section # to be entered. Ready Light ON Panel waiting for data to be entered Ready Light FLASHING Panel waiting for HEX data to be entered You cannot enter installer programming while the system or any partition is armed or in alarm.

  • Page 15: Programming Descriptions

    PowerSeries - PC1616/PC1808/PC1832/PC1864 Chapter 5 Programming Descriptions The following is a brief description of the features and options available in the PC1616/PC1808/1832/1864 control panel. Global Stay Arming If enabled by the installer, when this function key is pressed the panel will prompt the user for an access code. The panel will arm all parti- tions assigned to that access code in Stay Mode when exit delay expires.
  • Page 16 Programming Descriptions [31] Day Zone: Instant alarm when system is armed, keypad buzzer (no alarm) when system is disarmed [32] Instant Stay/Away: Similar to ‘Instant’ except panel will auto-bypass the zone if Armed in the Stay mode [35] 24-Hour Bell/Buzzer: Instant alarm when violated, system will activate bell output if armed, keypad buzzer if disarmed [36] 24-hr.
  • Page 17 PowerSeries - PC1616/PC1808/PC1832/PC1864 [14] Ground Start: Output will activate for 2 seconds when the panel attempts to seize the phone line (additional dial tone search must be programmed in the central station phone number – HEX [D]) [15] Remote Operation: Output can be activated/deactivated via the DLS software [16] For Future Use [17]...
  • Page 18 Programming Descriptions ON: auto-arming schedules (Program Sections [181]-[188]) will be available to the user in the [][6] menu. OFF: auto-arming schedules will NOT be available to the user in the [][6] menu. ON: the Audible Exit Fault feature will be enabled. If a delay zone is not secured correctly and not force-armed, at the end of the exit delay, the system will go into entry delay and turn ON the bell output.
  • Page 19 PowerSeries - PC1616/PC1808/PC1832/PC1864 Section [017] Fifth System Option Code Option Description ON: the system does not associate wireless keys to user codes. OFF: the system will assign user code 17 to wireless key #01, user code 18 to wireless key #02 etc. If the wireless key is used to arm or disarm, the system will report the Opening/Closing for the associated User Code. ON: the system logs an RF Jam trouble condition if the condition is present for 5 minutes.
  • Page 20 Programming Descriptions Section [021] Eighth System Option Code Option Description ON: Access codes will not be accepted by the system during entry delay. OFF: An access code can be used to disarm the system during entry delay ON: EN Entry Procedure - The following zone type alarm will follow bell delay if a zone violation occurs while entry delay is active on the partition: Instant, Interior, Interior Stay/Away, Delay Stay/Away, 24 Hr Supervisory, 24 Hr Buzzer, 24 Hr Burg, 24 Hr Holdup, 24 Hr Gas, 24 Hr Heat, 24 Hr Medical, 24 Hr Panic, 24 Hr Emergency, 24 Hr Sprinkler, 24 Hr Water, 24 Hr Freeze, 24 Hr Latching Tamper, Interior Delay, Day Zone, Instant Stay/Away, 24 Hr Bell/Buzzer, 24 Hr Non-Latching Tamper, Night Zone, Audible 24 Hr PGM Input.
  • Page 21 PowerSeries - PC1616/PC1808/PC1832/PC1864 ON: the system disconnects a listen in/two-way session if a new event occurs. OFF: the system does NOT disconnect. New events are transmitted only after the session is terminated. ON: the system does NOT activate the keypad buzzer for any trouble condition (excluding Fire Troubles). OFF: the system annunciates troubles via the keypad buzzer (two beeps every 10 seconds) normally.
  • Page 22 Programming Descriptions Section [168] Daylight Savings Time (Move Clock Ahead) These sections are used to program the Date, Time and Increment that the clock will move ahead for Daylight Savings Time each year. Programming can be accomplished by programming the Month, Day, Hour and Increment or Month, Week, Day of Week, Hour and Increment: Month Data [001] to [012] represents January to December.
  • Page 23 PowerSeries - PC1616/PC1808/PC1832/PC1864 Section [202] to [265] Partition Zone Assignments These Sections are used to assign zones to specific partitions (Section [202] to [209] for Partition 1, Sections [210] to [217] for Partition 2 etc.). Turn ON the option corresponding to the partition and zone to enable the zone on the specified partition. Turn the option OFF to disable the zone on the specified partition.
  • Page 24 Programming Descriptions Periodic Test Transmission with Trouble - the panel can be programmed to transmit a Periodic Test Transmission with Trouble Reporting Code in place of the standard Periodic Test Transmission if any of the following conditions exist. • Fire Zone Trouble (Zones 1-64) •...
  • Page 25 PowerSeries - PC1616/PC1808/PC1832/PC1864 ON: the panel will switch from touchtone dialing to rotary dialing after the 4th failed attempt to communicate. OFF: the panel will use DTMF dialing for all dialing attempts. ON: the system uses the Third Phone Number to back up the First Phone Number. OFF: the Third Phone Number is disabled. ON: the system alternates between the First Phone Number and Third Phone Number when attempting to report an event.
  • Page 26 Programming Descriptions ON: the system will hang up after a successful DLS connection and call the computer back using the DLS Phone Number (Section [402]). OFF: the system stays connected to the computer. ON: the user can initiate a downloading session using the [][6] command. OFF: the user cannot initiate a downloading session. ON: the system attempts to call the downloading computer after transmitting a Event Buffer 75% Full event to the central station.
  • Page 27 PowerSeries - PC1616/PC1808/PC1832/PC1864 PGM Output Option [10] Option Description ON: PGM output activates if a Burglary Alarm occurs. ON: PGM output activates if a Fire Alarm occurs. ON: PGM output activates if a Panic Alarm occurs. ON: PGM output activates if a Medical Alarm occurs. ON: PGM output activates if a Supervisory Alarm occurs.
  • Page 28 Programming Descriptions entries, two digits for the hour, two digits for the minute, for Sunday through Saturday. Program using the military format (for example, to auto arm at 8:00 pm program data [20][00]). Valid entries are [00][00] to [23][59] – program [99][99] to disable auto disarming Section [691] to [698] Auto-Disarm Holiday Schedule Program the dates to be used for Auto-Disarm holiday schedule (Section [691] for Partition 1, Section [692] for Partition 2 etc.) Each Section has four- teen, 6-digit entries, two digits for the month, two digits for the day and two digits for the year.
  • Page 29 PowerSeries - PC1616/PC1808/PC1832/PC1864 Special Installer Instructions Section [898] Wireless Enrollment Refer to Section 2.13 WT5500 Wireless Enrollment Procedure for details. Section [899] Template Programming Selecting [][8] [Installer Code] [899] displays the current 5-digit template programming code. Refer to Section 3.1 Template Programming on page 8 for programming details.
  • Page 30 Programming Descriptions Section [993] to [999]: Factory Default Module/Panel The following Sections can be used to factory default a module or the main control panel. Enter the appropriate Section, followed by the Installer Code, followed by the Section number (E.g., [993][Installer Code][993]) Section [993]: Factory Default Alternate Communicator Section [995]: Factory Default Escort5580 Module Section [996]: Factory Default Wireless Receiver...
  • Page 31 PowerSeries - PC1616/PC1808/PC1832/PC1864 Words Table Item # Text Item # Text Item # Text Item # Text Item # Text Item # Text Aborted Control Garage Motion Shop Date Side Access Daughter’s Glass North Siren Active Degrees Goodbye Sliding Activity Delay Smoke Alarm...
  • Page 32 PowerSeries - PC1616/PC1808/PC1832/PC1864 Section 6 Programming Worksheets 6.1 Index to Programming Worksheets Programming Option Page Programming Option Page [000] Keypad Enrollment..............30 [347] Miscellaneous Maintenance Reporting Codes......44 [001]-[004] Zone Definitions ............... 30 [348] Test Transmission Reporting Codes .......... 44 [005] System Times ................

  • Page 33: Programming Worksheets

    Programming Worksheets Shaded programming sections indicate minimum programming requirements Keypad Partition /Slot and Function Key Programming [000] Keypad Enrollment This must be done at each keypad requiring programming. [0] Slot address [Valid entries are 0-8 for the partition, 1-8 for the slot (e.g., to enroll a keypad in partition 3 and slot 1, enter (31)]. [1] Function Key 1 Assignment (Valid entries are 00-32) [2] Function Key 2 Assignment (Valid entries are 00-32) [3] Function Key 3 Assignment (Valid entries are 00-32)
  • Page 34 PowerSeries - PC1616/PC1808/PC1832/PC1864 Section Zone Def. Section Zone Def. Section Zone Def. Section Zone Def. I _ _ __ _I _ _ __ _ I I _ __ __ I _ __ __ I I _ __ _ _I _ _ __ _I I _ _ __ _ I _ _ _ __ I [001] [002]...
  • Page 35 Programmable Output Options Residential Burglary and Fire Bell Output Stay Armed Status Zone Follower Output (Zones 17-24 For Future Use Command Output #1 ([*][7][1]) Zone Follower Output (Zones 25-32) Sensor Reset [*][7][2] Command Output #2 ([*][7][2]) Zone Follower Output (Zones 33-40) 2 Wire Smoke Support (PGM 2 only) Command Output #3 ([*][7][3]) Zone Follower Output (Zones 41-48)
  • Page 36 PowerSeries - PC1616/PC1808/PC1832/PC1864 [013] First System Options  Normally Closed Loops End-of-line Resistors    Double End-of-line Resistors Single End-of-line Resistors    Panel shows all Troubles when armed Panel shows only Fire Troubles when armed   ...
  • Page 37 [017] Fifth System Options    WLS Key Does NOT use Access Codes WLS Key Uses Access Codes    RF Jam Log after 5 Minutes RF Jam Log after 30 Seconds    Audible RF Jam Trouble Beeps Silent RF Jam Trouble Beeps ...
  • Page 38 PowerSeries - PC1616/PC1808/PC1832/PC1864 [021] Eighth System Options  Access Code Entry Blocked During Entry Delay Access Code Entry Not Blocked During Entry Delay     EN Entry Procedure  Standard Entry Procedure For Future Use    ...
  • Page 39 [101]-[164] Zone Attributes Zone Attribute Defaults (Y = Option ON; N = Option OFF): Attribute: Audible Steady Chime Bypass Force* Swing Tx. Delay Wireless Cross Zn Silent Pulsed Zone Type: 00 Null Zone 01 Delay 1 02 Delay 2 03 Instant 04 Interior 05 Int.
  • Page 40 PowerSeries - PC1616/PC1808/PC1832/PC1864 Attribute: Zone Attributes 10-13 For Future Use NC Loops SEOL DEOL Config. Config. Config. 19 24hr Water 20 24hr Freeze 21 24hr Latching Tamper 22 Momentary Keyswitch 23 Maintained Keyswitch 25 Interior Delay 26 24hr Non-alarm 29 Auto Verified Fire 30 Fire Supervisory 31 Day Zone 32 Instant Stay/Away...
  • Page 41 Section Zone # Zone Audible/ Steady/ Chime Bypass Force* Swing Tx. Delay Wireless Cross Zn Type** Silent Pulsed [134] I________I I________| I________| I________| I________| I________| I________| I________I I________I [135] I________I I________| I________| I________| I________| I________| I________| I________I I________I [136] I________I I________| I________| I________|...
  • Page 42 PowerSeries - PC1616/PC1808/PC1832/PC1864 [167] TL/GS Interface Communications Wait for Acknowledge Default 060 Valid entries are 020-255 seconds I________I_________I_________I [168] Set Clock Forward (Daylight Saving Time) Def 004 Month |_______|_______|_______| Valid Entries 001-012 Def 001 Week |_______|_______|_______| Valid Entries 000-005 Def 000 |_______|_______|_______| Valid Entries 000-031 Def 002...
  • Page 43 No Activity Arming Timers - Default is [000] for all partitions Section Partition [191] Valid entries are 001-255 minutes, 000 to disable I_______I_______I_______I [192] Valid entries are 001-255 minutes, 000 to disable I_______I_______I_______I [193] Valid entries are 001-255 minutes, 000 to disable I_______I_______I_______I [194] Valid entries are 001-255 minutes, 000 to disable...
  • Page 44 Communications [301] First Telephone Number (32 Digits) __I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I [302] Second Telephone Number (32 Digits) __I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I [303] Third Telephone Number (32 Digits) __I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I [304] Call Waiting Cancel String (6 Digits) - This feature is activated in Section 382 Opt 4 Default = DB70EF Program unused digits with Hex F I_______I_______I_______I_______I_______I_______I All six digits must be entered for changes to be saved.
  • Page 45 PowerSeries - PC1616/PC1808/PC1832/PC1864 [324]-[327] Alarm Restoral Reporting Codes, Zones 01-64 Section [324] Zone 01 Zone 02 Zone 03 Zone 04 Zone 05 Zone 06 Zone 07 Zone 08 I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I Zone 09 Zone 10 Zone 11 Zone 12 Zone 13...
  • Page 46 [334]-[337] Tamper Restoral Reporting Codes, Zones 01-64 Section [334] Zone 01 Zone 02 Zone 03 Zone 04 Zone 05 Zone 06 Zone 07 Zone 08 I _ _ _ _ _ _ _ I _ _ _ _ _ _ _ I I _ _ _ _ _ _ _ I _ _ _ _ _ _ _ I I _ _ _ _ _ _ _ I _ _ _ _ _ _ _ I I _ _ _ _ _ _ _ I _ _ _ _ _ _ _ I...
  • Page 47 PowerSeries - PC1616/PC1808/PC1832/PC1864 [343] Code 17 Code 18 Code 19 Code 20 Code 21 Code 22 Code 23 Code 24 I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I Code 25 Code 26 Code 27 Code 28 Code 29 Code 30 Code 31 Code 32 I_______I_______I...
  • Page 48 Call Direction Options [351]-[358] Alarm/Restore Communicator Call Directions Option 1 Option 2 Option 3 Option 4 Option 5 Options 6,7,8 Section Partition 1st Telephone 2nd Telephone Not Used Not Used Alt Comm Future Use Number (Def ON) Number (Def OFF) (Def OFF) (Def OFF) (Def ON)
  • Page 49 PowerSeries - PC1616/PC1808/PC1832/PC1864 [377] Communication Variables Default Swinger Shutdown (Alarms and Rest) 001-014 Transmissions I_______I_______I_______I Swinger Shutdown (Tampers and Rest) 001-014 Transmissions, 000=disabled I_______I_______I_______I Swinger Shutdown (Maint and Rest) 001-014 Transmissions, 000=disabled I_______I_______I_______I Communication Delay 001-255 seconds I_______I_______I_______I AC Failure Communication Delay 001-255 minutes, 000=disabled I_______I_______I_______I TLM Trouble Delay...
  • Page 50 [382] Third Communicator Options    Contact ID Partial Closing Identifier is “5” Contact ID Partial Closing Identifier is “4”    Alarm Communications Enabled During Walk Test Alarm Communications Disabled During Walk Test    Communication Cancelled Message Enabled Communication Cancelled Message Disabled ...
  • Page 51 PowerSeries - PC1616/PC1808/PC1832/PC1864 [501]- [554] Programmable Output Attributes Program only the following attributes for the PGM options listed. All others will be ignored. PGM options are programmed in [009], [010] & [011]. PGM Attribute Defaults (Y = Attribute ON; N = Attribute OFF; Blank = Attribute not available): Attribute: Not used Not used True Output Follows Timer Code Req.
  • Page 52 Attribute: PGM Option Future Use Future Future Use Future Use Future Use Future Use Future Use Follows Timer Latched [32] Open After Alarm Future Use Future True Output Future Use Future Use Future Use Future Use AND Logic Inverted OR Logic [29], [35]-[41] Zone Follower Section PGM Output...
  • Page 53 PowerSeries - PC1616/PC1808/PC1832/PC1864 PC5208 [555] I________I I________| I________| I________| I________| I________| I________| I________I [556] I________I I________| I________| I________| I________| I________| I________| I________I [557] I________I I________| I________| I________| I________| I________| I________| I________I [558] I________I I________| I________| I________| I________| I________| I________| I________I [559] I________I I________|...
  • Page 54 [606] Code 49 Code 50 Code 51 Code 52 Code 53 Code 54 Code 55 Code 56 I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I I_______I_______I Code 57 Code 58 Code 59 Code 60 Code 61 Code 62 Code 63 Code 64 I_______I_______I I_______I_______I I_______I_______I...
  • Page 55 PowerSeries - PC1616/PC1808/PC1832/PC1864 [696] Holiday 1 Holiday 2 Holiday 3 Holiday 4 Holiday 5 Holiday 6 Holiday 7 I____I_____I I_____I_____I I_____I_____I I____I_____I I_____I_____I I_____I_____I I____I_____I I_____I_____I I_____I_____I I____I_____I I_____I_____I I_____I_____I I____I_____I I_____I_____I I_____I_____I I____I_____I I_____I_____I I_____I_____I I____I_____I I_____I_____I I_____I_____I Holiday 8 Holiday 9 Holiday 10 Holiday 11...
  • Page 56 [805] PC5100 Programming Refer to the PC5100 Installation Manual for programming locations and instructions. [851] TL/GS Programming Refer to the associated Communicator Manual for programming locations and instructions. Special Installer Functions [898] Wireless Enrollment [899] Template Programming [900] Panel Version Displayed [901] Installer Walk Test Mode Enable/Disable [902] Module Supervision Reset [903] Module Supervision Field...
  • Page 57 PowerSeries - PC1616/PC1808/PC1832/PC1864 For the Record Customer: ___________________________________________________________________________________________________________ Address: ____________________________________________________________________________________________________________ Telephone: Installation Date: ______________________________________________ _____________________________________________ Installers Code: _____________________________________________________________________________________________________ Module Name Description Location PC1616/PC1808/ PC1832/PC1864 Main Panel I _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ I I _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ I I _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ I I _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ I...
  • Page 58 For the Record Zone Programming Summary Zone programming can be found in sections [001] - [004], [101] - [164], [020], [202]-[265]. Use this area to record a summary of your zone programming. System Zone Zone System Zone Zone Zone Label Type Zone Label...

  • Page 59: App A Reporting Code Formats)

    Reporting Codes Appendix A: Reporting Codes The following tables contain Contact ID and Automatic SIA format reporting codes. For more information on reporting code formats and notes about individual reporting codes. Contact ID The first digit (in parentheses) will automatically be sent by the control. The second two digits are programmed to indicate specific information about the signal.
  • Page 60 PowerSeries - PC1616/PC1808/PC1832/PC1864 Automatic Dialer SIA Auto Section # Reporting Code Code Sent When... Contact ID Direction* Rep Codes** Codes [345]-[346] TLM Failure/Restore Telephone line monitoring trouble/Telephone line restored MA/R E(3)51-000/ LT-01/LR-01 R(3)51-000 [345]-[346] Gen System Trouble/Rest. “Service Required” trouble (view troubles using [*][2])/trouble restored MA/R E(3)AA-000/ YX-00/YZ-00...

  • Page 61: App B Troubleshooting Guide

    Troubleshooting Guide Appendix B: Troubleshooting Guide Testing: • Power up system • Program options as required (See Programming Section) • Violate, then restore zones • Verify correct Reporting Codes are sent to the Central Station Troubleshooting: LCD Programmable-Message Keypad • Press [][2] to view a trouble condition.
  • Page 62 Trouble Cause Troubleshooting Trouble [1] Service Required Press [1] to determine specific trouble [1] Low Battery Main panel battery less than 11.1VDC NOTE: If battery is new allow 1 Hr. for battery to charge. • Verify voltage measured across AC terminals is 16-18 VAC. NOTE: This trouble condition will not Replace transformer if required.
  • Page 63 Trouble Cause Troubleshooting Trouble [2] AC Failure No AC at panel AC input Verify voltage measured across AC terminals is 16-18VAC. Replace terminals transformer if required. Trouble [3] Telephone Line Trouble Phone Line Voltage at TIP, RING on main • Measure the voltage across TIP and RING on the panel: panel less than 3VDC •...
  • Page 64 Trouble Cause Troubleshooting Trouble [5] Zone Fault (Cont.) One or more wireless devices have not • If the trouble occurs immediately, a conflict with a hard wired checked in within the programmed time zone exists: • The zone being used is already assigned to a PC5108 zone expander •...

  • Page 65: App C Template Programming

    Template Programming Appendix C: Template Programming Template programming allows quick programming of the minimum functions required for basic operation. The below tables are used to determine the desired template to be used ( for information on performing template programming see Section 4 – Programming Descriptions). Each digit represents 1 of the template sections listed below.
  • Page 66 Selected Troubles Trouble [345] Alarms [346] Restoral Battery AC Failure Bell Circuit Fire, Alarm Aux PS General System General System Supervisory FF = Communicate in automatic format , 00 = Disabled Openings & Closings Users CLOSINGS, Residential Dial Reporting codes Section [339] 9-16...

  • Page 67: App D Communicator Format Options

    Communicator Format Options Appendix D: Communicator Format Options This section requires two 2-digit entries to set the communica- • If the reporting code for an event is programmed as any- thing from [01] to [FE], the panel will send the programmed tions format that is to be used for each phone number (1 per reporting code.
  • Page 68 PowerSeries - PC1616/PC1808/PC1832/PC1864 occur at the same time, only one call will be made to each Telephone Line Monitoring (TLM) telephone number the panel is programmed to call. When the TLM Enable option is selected, the panel will supervise the telephone line and will indicate a trouble con- ...

  • Page 69: Safety Instructions

    SAFETY INSTRUCTIONS FOR SERVICE PERSONNEL WARNING: When using equipment connected to the telephone network, there are basic safety instructions that should always be followed. Refer to the Safety Instructions provided with this product; save them for future reference. Instruct the end-user regarding the safety precautions that shall be observed when operating this equipment.

  • Page 70: Guidelines For Locating Smoke Detectors And Co Detectors

    PowerSeries - PC1616/PC1808/PC1832/PC1864 Guidelines for Locating Smoke Detectors and CO Detectors The following information is for general guidance only and it is recommended that local fire codes and regulations be consulted when locating and installing smoke and carbon monoxide alarms. Smoke Detectors Research indicates that all hostile fires in homes generate smoke to a greater or lesser extent.
  • Page 71 Warning Limited Warranty (Please read carefully) Digital Security Controls (DSC) warrants the original purchaser that for a period of twelve months from the Note to I ns tallers date of purchase, the product shall be free of defects in materials and workmanship under normal use. This warning contains vital information.
  • Page 72 The trademarks, logos, and service marks displayed on this document are registered in the United States [or other countries]. Any misuse of the trademarks is strictly prohibited and Tyco International Ltd. will aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal prosecution wherever necessary.
