Installation Instructions
1. INTRODUCTION
The SD- 304C PG2 is a wireless PowerG innovative shock detector with optional magnetic contact and
auxiliary input interf acing with all PowerMaster control panels, version 16 or higher. The SD-304C PG2 f its
windows, doors, walls or roofs and is ideal f or residential or commercial installations. It detects and analyzes
gross attacks or a series of low level shocks (up to 10 low level shoc ks within 30 seconds) and provides early
warning of any attempt of intrusion before a burglar actually breaks -in.
The detector incorporates:
• A shock / vibration piezoelectric sensor.
• Optional reed switch (with optional anti-mask sensor to prevent attempts at disabling it with an extra
magnet).
Optional auxiliary input to use with installer supplied contacts or other wired devices.
Installer added-value f eatures:
• Digital display enables f ast and easy shock level adjustment
• Full remote conf iguration f rom Po werMaster control panel or Monitoring Station saves the need to
physically access the shock detector f or conf iguration
• Remote view of : Low Battery, f ront and back Tamper, Supervision
• An LED lights whenever alarm or tamper events are reported (the LED does not light while a supervision
message is being transmitted).
2. INSTALLATION
2.1 Mounting
Ref er to the Shock Detection Radius, in the Specif ications section, according to the surf ace material used. Install the device in a location where a
strong shock impact is expected. The unit should be mounted on a f lat surf ace and f irmly f ixed using both mounting screws.
For magnetic contact detection, it is highly recommended to attach the detector to the door or window on the f ixed f rame and the magnet to the
movable part (door or window). For optimal magnetic sensor activity and better security it is recommended to apply the magnet as close as
possible to the
detector's marked side.
Note: Once the cover is removed, a tamper message is transmitted to the control panel. Subsequent removal of the battery prevents transmission
of "TAMPER RESTORE", leaving the detector in permanent alert. To avoid this, press the tamper switch whil e you remove the battery.
Caution!
Risk of explosion if battery is replaced by an incorrect type. Dispose of used battery according to manuf acturer's instructions.
Attention! The unit has a back tamper switch (optional) under the PCB. As long as the PCB is seated firmly within the base, the switch lever will
be pressed against a special break-away base segment that is loosely connected to the base (Figure 2). Be sure to fasten the break-away
segment to the wall. If the detector unit is forcibly removed from the wall, this segment will break away from the base, causing the tamper switch
to open.

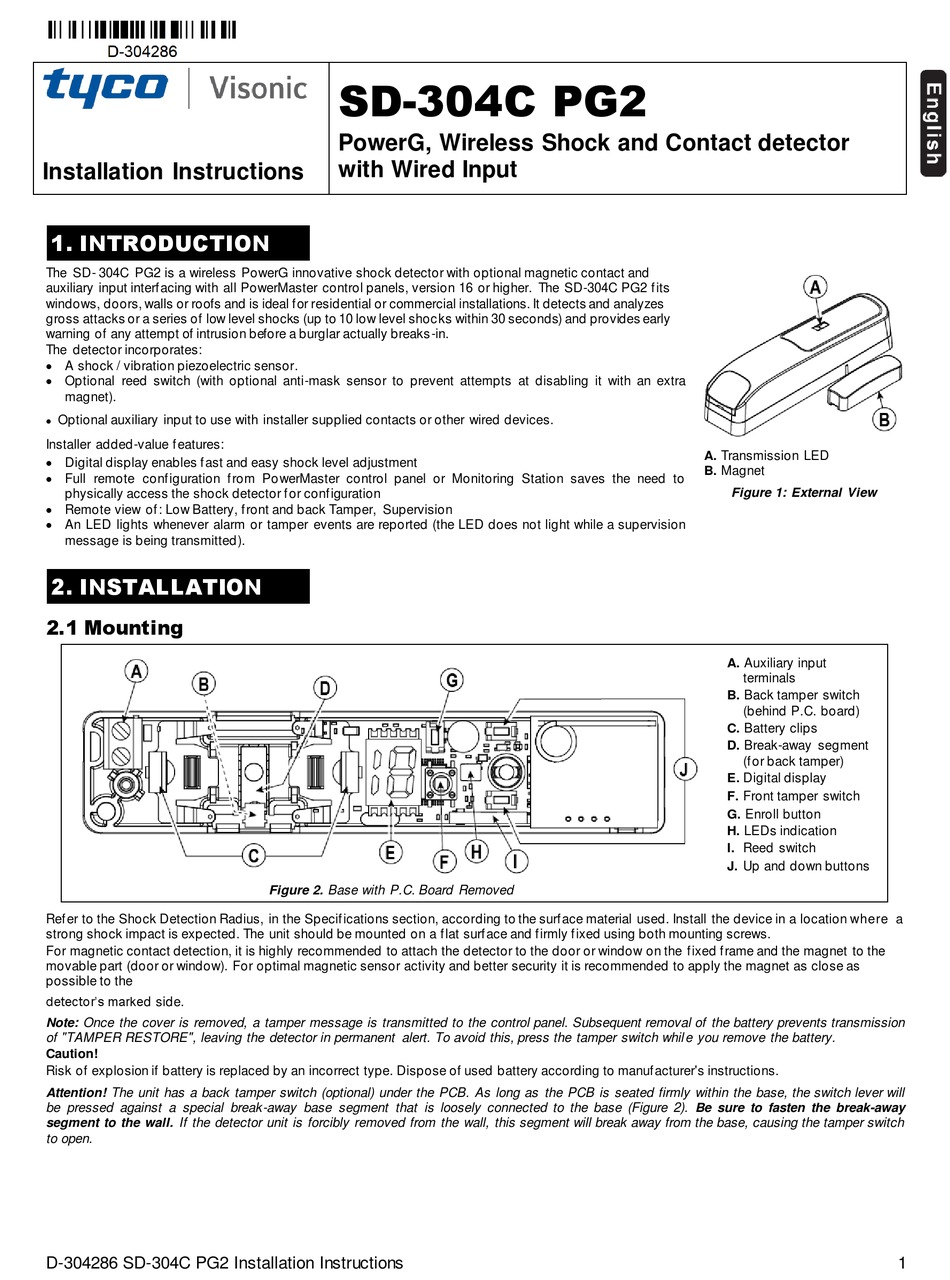

D-304286 SD-304C PG2 Installation Instructions
SD-304C PG2
PowerG, Wireless Shock and Contact detector
with Wired Input
Figure 2. Base with P.C. Board Removed
A. Transmission LED
B. Magnet
Figure 1: External View
A. Auxiliary input
terminals
B. Back tamper switch
(behind P.C. board)
C. Battery clips
D. Break-away segment
(f or back tamper)
E. Digital display
F. Front tamper switch
G. Enroll button
H. LEDs indication
I. Reed switch
J. Up and down buttons
1
