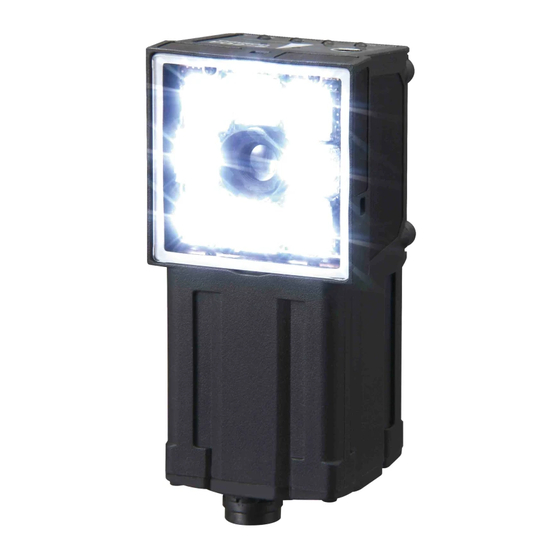

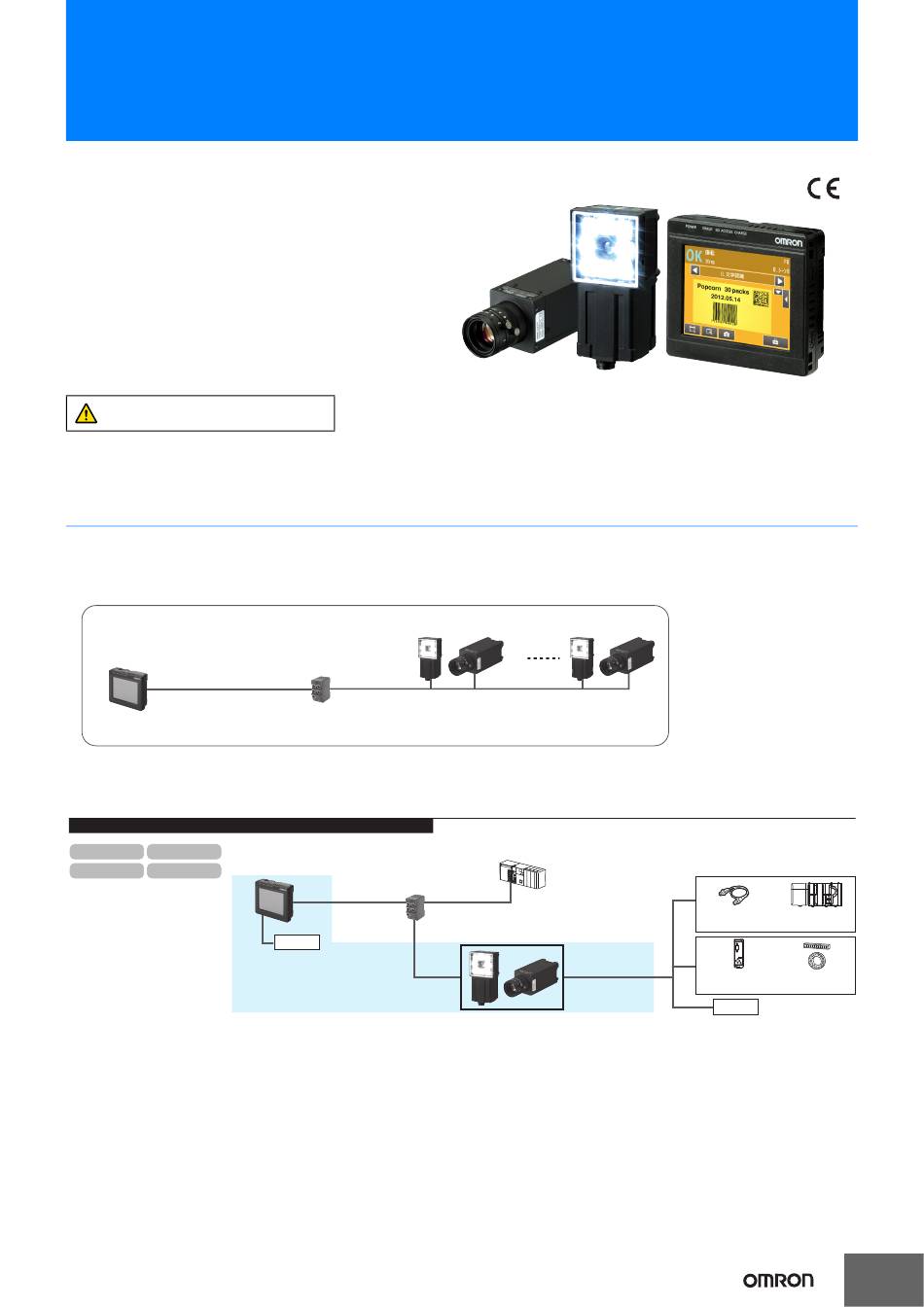

All in one Vision Sensor Smart Camera
FQ2
Series
Smart Cameras:
The New Standard for Image
Inspections
• All in one Vision Sensor
• Expanded performance and functionality
• A Lineup that fits a wide range of equipment
Be sure to read "Safety Precautions" on
page 9.
System Configuration
Up to 32 Sensors can be set up and monitored from a single Touch Finder or TouchFinder for PC.
Various types of Sensors can be used at the same time.
However, I/O type and wiring method vary depending on the Sensor, so select the necessary devices.
Touch Finder FQ2-D
or TouchFinder for PC
Standard Ethernet Cable
RJ-45 of the FCC regulations
*The Setup Tool can connect to up to 32 Sensors and it can display up to eight Sensors at the same time.
Note: If you register as a member after purchasing a Sensor, you can download free setup software TouchFinder for PC that runs on a PC and
can be used in place of Touch Finder.
Refer to the member registration sheet for details.
Ethernet (EtherNet/IP, No-protocol, or PLC Link) Connection
FQ2-S1
FQ2-S2
FQ2-S3
FQ2-S4
* RJ-45 of the FCC regulations
Sensors (32
FQ2-S1/S2/S3/S4
Switching Hub
W4S1
Special Ethernet Cable
FQ-WN
Touch Finder
FQ2-D
or TouchFinder for PC
Switching Hub
W4S1
Standard
*
Ethernet Cable
DC24V
FQ
Ethernet Cable
FQ-WN
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
max.)*
Control PLC
*
Standard Ethernet Cable
Sensor
FQ2-S1/S2/S3/S4
I/O Cable
FQ-WD
CSM_FQ2_DS_E_11_4
Trigger sensor
I/O control PLC
FL-STC
FL-series
Lighting Controller
External Lighting
DC24V
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Omron FQ2 Series
Summary of Contents for Omron FQ2 Series
- Page 1 For the most recent information on models that have been certified for page 9. safety standards, refer to your OMRON website. System Configuration Up to 32 Sensors can be set up and monitored from a single Touch Finder or TouchFinder for PC.
- Page 2 Parallel Interface Connection Connection with Standard Touch Finder Parallel Interface of the FQ2-D Sensor FQ2-S1/S2/S3/S4 or TouchFinder for PC Trigger sensor Sensor control PLC Sensor I/O control PLC FQ2-S1 FQ2-S2 I/O Cable FQ2-S3 FQ2-S4 Ethernet Cable FQ-WD FQ-WN FL-STC FL-series Lighting Controller External Lighting DC24V...
- Page 3 Ordering Information Sensor Inspection Model FQ2-S1 Series [Single-function Type] Color Field of view/ Field of view Number of pixels Installation distance Narrow View FQ2-S10010F FQ2-S15010F Refer to figure on p.4 Standard View FQ2-S10050F FQ2-S15050F Refer to figure on p.4 Wide View 350,000 pixels FQ2-S10100F FQ2-S15100F...
- Page 4 Field of view/Installation distance (Unit: mm) Field of view Narrow View Standard View Wide View (Long-distance) Wide View (Short-distance) Appearance Figure Figure Figure Figure 57 4.7 Field of 350,000 pixels Type view Field of Field of view Field of view view Figure Figure...
- Page 5 Accessories Industrial Switching Hubs (Recommended) Number Failure Current Application Appearance Name Model Appearance Model of ports detection consumption Mounting Bracket *1 FQ-XL None 0.22 A W4S1-03B Mounting Bracket for high- FQ-XL2 None W4S1-05B precision sensing *2 0.22 A For Sensor Supported W4S1-05C Mounting Base for...
- Page 6 Ratings and Performance Sensor [Inspection Model FQ2-S1/S2/S3 Series] Item Single-function type Standard type High-resolution type FQ2-S10@@@@ FQ2-S20@@@@ FQ2-S30@@@@-08 FQ2-S30@@@@-08M FQ2-S30-13 FQ2-S30-13M Model FQ2-S15@@@@ FQ2-S25@@@@ FQ2-S35@@@@-08 FQ2-S35@@@@-08M FQ2-S35-13 FQ2-S35-13M Field of view Select a lens according to the field of view Refer to Ordering Information on p.3.
- Page 7 Sensor [Inspection/ID Model FQ2-S4 Series] Item Inspection/ID Model FQ2-S40@@@@ FQ2-S40@@@@-M FQ2-S40@@@@-08 FQ2-S40@@@@-08M FQ2-S40@@@@-13 FQ2-S40@@@@-13M Model FQ2-S45@@@@ FQ2-S45@@@@-M FQ2-S45@@@@-08 FQ2-S45@@@@-08M FQ2-S45@@@@-13 FQ2-S45@@@@-13M Field of view Select a lens according to the field of view Refer to Ordering Information on p.3. (Tolerance (field of view): ±10% max.) and installation distance.
- Page 8 7 outputs (ACK, RUN, BUSY, OR, ERROR, STGOUT, and SHTOUT) STGOUT, and SHTOUT) specifications RS-232C 1 channel, 115,200 bps max. FQ2-S3 connected with FQ-WU@@@ : OMRON interface Sensor interface *Number of connected Sensors: 1 Power supply voltage 21.6 to 26.4 VDC (including ripple) Insulation resistance Between all DC external terminals and case: 0.5 M...
- Page 9 ● For details, including precautions for correct use, refer to the "Smart Camera FQ2-S/CH Series User’s Manual" (Cat. No. Z337) on your OMRON website. ● For technical information and product FAQs, refer to the "Technical Guide" at your OMRON website.
- Page 10 Dimensions (Unit: mm) Sensor Integrated Sensor Narrow View Wide View FQ2-S@@@10F-@@@ FQ2-S@@100@-@@@ Standard View FQ2-S@@@50F-@@@ The mounting bracket FQ-XL(included with Sensor) Optical Optical axis axis 4-M4 4-M4 Depth: 6 Depth: 6 (108) (108) (25) 1/4-20UNC 1/4-20UNC (25) Depth: 6 Depth: 6 (18) (49) (18)
- Page 11 (Unit: mm) Touch Finder FQ2-D30/-D31 Panel Mounting Adapter FQ-XPM (36.9) 31.6 44.5 (See note.) (133.4) 35.5 52.9 27.9 23.8 (8.1) Panel Cutout Dimensions 13.5 111±1 12.1 17.3 19.2 Panel 111±1 (See note.) Note: Provided with FQ2-D31 only. Sensor Data Unit FQ-SDU10/-SDU15 FQ-SDU20/-SDU25 51.3...
- Page 12 Optical Chart for C-mount Camera FQ2-S3@-13@/-S4@-13@ High-resolution, Low-distortion Lenses 3Z4S-LE SV-@@@@H 10000 3Z4S-LE SV-0614H t0 t0 SV-0814H t0 t0 SV-1214H t0 t0 SV-1614H t5 t5 t0 t0 SV-2514H t15 t10 t15 t10 t0 t0 1000 t5 t5 SV-3514H t0 t0 t40 t30 t50 t40 t50 t40...
- Page 13 (a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
