Supero SuperServer 6033P-8R User Manual

Supermicro superserver 6033p-8r servers: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

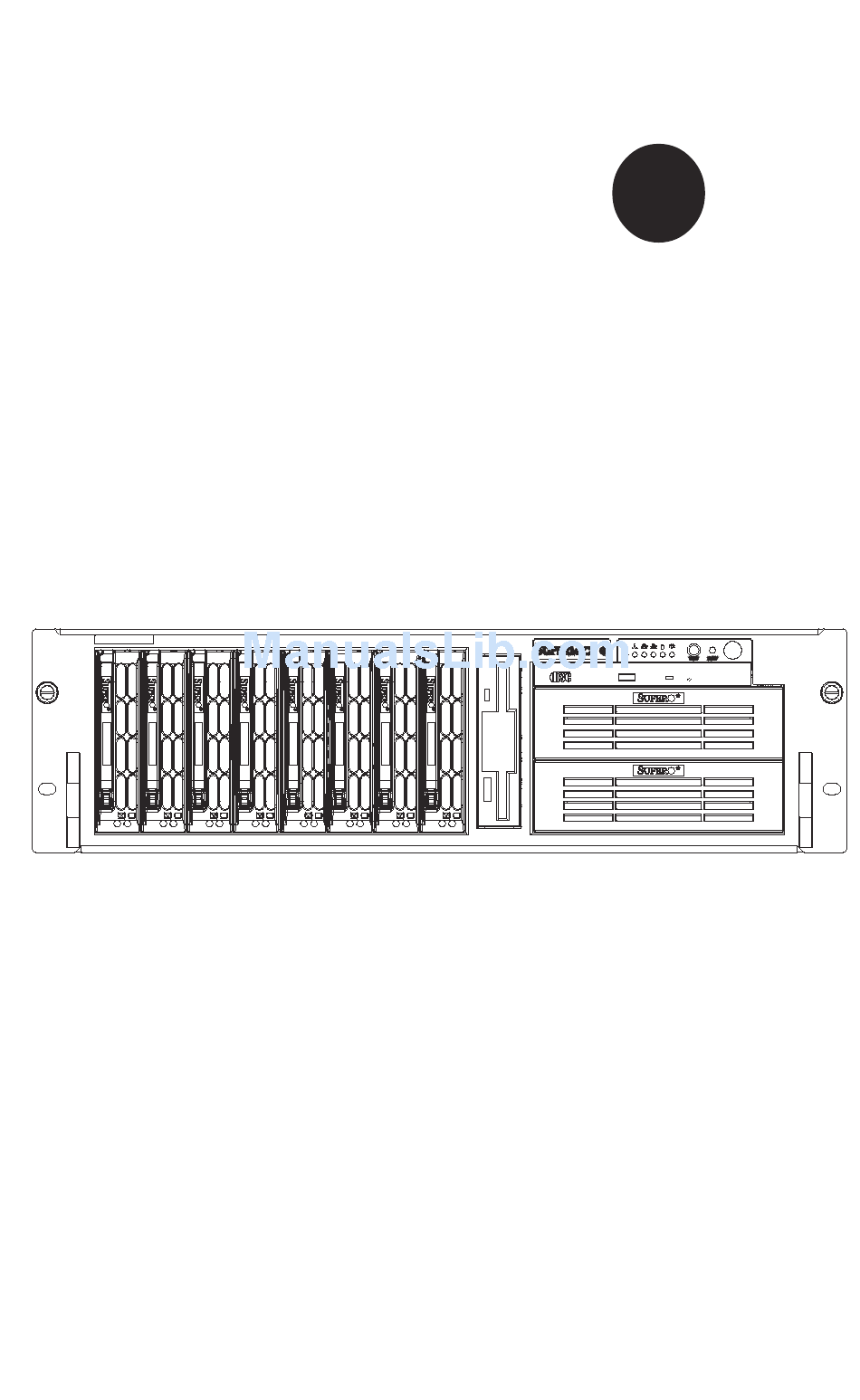

S
®
UPER
S
S
6033P-8R
UPER
ERVER
USER'S MANUAL
1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperServer 6033P-8R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero SuperServer 6033P-8R

Summary of Contents for Supero SuperServer 6033P-8R

  • Page 1 ® UPER 6033P-8R UPER ERVER USER’S MANUAL...
  • Page 2 The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product. Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document.

  • Page 3: Preface

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 6033P-8R. Installation and maintainance should be performed by experienced technicians only. The SuperServer 6033P-8R is a high-end, dual Xeon processor redundant power...
  • Page 4 UPER ERVER 6033P-8R Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 6033P-8R. Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X5DP8-G2 serverboard, including the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Rack Precautions ... 2-2 Server Precautions ... 2-2 Rack Mounting Considerations ... 2-3 Installing the 6033P-8R into a Rack ... 2-4 Identifying the Sections of the Rack Rails ... 2-4 Installing the Chassis Rails ... 2-5 Installing the Server into the Rack ... 2-6 Installing the Server into a Telco Rack ...
  • Page 7 Power ... 3-3 Power Fail ... 3-3 SCSI Drive Carrier LEDs ... 3-4 Chapter 4: System Safety Electrical Safety Precautions ... 4-1 General Safety Precautions ... 4-2 ESD Precautions ... 4-3 Operating Precautions ... 4-4 Chapter 5: Advanced Motherboard Setup Handling the X5DP8-G2 Motherboard ...
  • Page 8 UPER ERVER 6033P-8R Manual ATX PS/2 Keyboard & Mouse Ports ... 5-15 Fan Headers ... 5-16 Power LED/Speaker/NMI ... 5-16 Third Power Supply Fail Header ... 5-16 Keylock ... 5-16 Wake-On-LAN ... 5-17 Wake-On-Ring ... 5-17 Jumper Settings ... 5-18 Explanation of Jumpers ...
  • Page 9 Power Supply Failure ... 6-11 Power Supply Failure ... 6-11 Removing/Replacing the Power Supply ... 6-11 Chapter 7: BIOS Introduction ... 7-1 Running Setup ... 7-2 Main BIOS Setup ... 7-2 Advanced ... 7-6 Security ... 7-13 Power ... 7-15 Boot ...
  • Page 10 UPER ERVER 6033P-8R User's Manual Notes...

  • Page 11: Overview

    The Supermicro SuperServer 6033P-8R is a high-end dual processor, 3U rackmount server that features some of the most advanced technology currently available. The SuperServer 6033P-8R is comprised of two main subsystems: the SC832S-R760 3U rackmount chassis and the X5DP8-G2 dual Xeon processor serverboard.

  • Page 12: Serverboard Features

    UPER ERVER 6033P-8R Manual Serverboard Features At the heart of the SuperServer 6033P-8R lies the X5DP8-G2, a dual Intel Xeon processor serverboard designed to provide maximum performance. Below are the main features of the X5DP8-G2. Chipset The X5DP8-G2 is based on Intel's E7501 chipset, which is a high-performance core logic chipset designed for dual-processor servers.

  • Page 13: Onboard Scsi

    The X5DP8-G2 supports single or dual Xeon 604/603-pin processors of up to 3.20 GHz (with a 1 MB integrated transfer cache) at a 533/400 MHz Front Side (System) Bus speed. Please refer to the serverboard specifications pages on our web site (http://www.supermicro.com/support/) for updates on supported proces- sors. Memory The X5DP8-G2 has eight 184-pin DIMM slots that can support up to 16 GB of registered ECC DDR266/200 (PC2100/1600) SDRAM.

  • Page 14: Other Features

    UPER ERVER 6033P-8R Manual Onboard Controllers/Ports The X5DP8-G2 includes one floppy drive controller and two onboard IDE control- lers, which support up to four hard drives or ATAPI devices. Back panel I/O ports include one COM port, two USB ports, PS/2 mouse and keyboard ports, a video (monitor) port, an external SCSI port and dual Gigabit Ethernet LAN ports.

  • Page 15: Server Chassis Features

    The following is a general outline of the main features of the SC832S-R760 chassis. System Power When configured as the 6033P-8R, the SC832S-R760 chassis includes a triple redundant 760W (760W + 380W) hot-swappable power supply. SCSI Subsystem The SCSI subsystem supports eight 80-pin SCA Ultra320 SCSI hard drives. (Any standard 1"...
  • Page 16 UPER ERVER 6033P-8R Manual Figure 1-2. I/O Backplane Keyboard/Mouse Ports Parallel Port 6 Full Size PCI Slots USB Ports COM1 Port VGA Port Ethernet Ports...

  • Page 17: Contacting Supermicro

    Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 18 UPER ERVER 6033P-8R Manual Notes...

  • Page 19: Chapter 2: Server Installation

    Decide on a suitable location for the rack unit that will hold the SuperServer 6033P-8R. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are gener- ated.

  • Page 20: Choosing A Setup Location

    UPER ERVER 6033P-8R Manual Choosing a Setup Location - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.

  • Page 21: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 22: Installing The 6033P-8R Into A Rack

    This section provides information on installing the SuperServer 6033P-8R into a rack unit. If the 6033P-8R has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 23: Installing The Chassis Rails

    Position one of the fixed chassis rail sections you just removed along the side of the 6033P-8R. Note that these two rails are left/right specific. Locate the five rail buttons on each side of the chassis and the five corresponding holes on each of the inner rails.

  • Page 24: Installing The Server Into The Rack

    UPER ERVER 6033P-8R Manual Installing the Server into the Rack Locate a pair of front (short) and rear (long) brackets that were included with your rack mounting hardware. Note that the brackets are marked with up/front arrows (front) and up/rear arrows (rear). Secure the short front bracket (A in Figure 2-3) to the outer rail with two M4 x 4 mm roundhead screws.

  • Page 25: Installing The Server Into A Telco Rack

    Figure 2-4. Installing the Server into a Rack Installing the Server into a Telco Rack If you are installing the SuperServer 6033P-8R into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.

  • Page 26: Checking The Serverboard Setup

    UPER ERVER 6033P-8R Manual Checking the Serverboard Setup After you install the 6033P-8R in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. 1. Accessing the inside of the 6033P-8R (see Figure 2-5): First, release the retention screws that secure the unit to the rack.
  • Page 27 Chapter 2: Server Installation Figure 2-5. Accessing the Inside of the 6033P-8R...

  • Page 28: Checking The Drive Bay Setup

    UPER ERVER 6033P-8R Manual Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SCSI drives and SCA backplane have been properly installed and all connections have been made. 1. Accessing the drive bays: All drives are accessable from the front of the server.

  • Page 29: Chapter 3: System Interface

    Overview There are several LEDs on the control panel as well as others on the SCSI drive carriers and the motherboard to keep you constantly informed of the overall status of the system as well as the activity and health of specific components. There are also two buttons on the chassis control panel.

  • Page 30: Power

    SUPERSERVER 6033P-8R User's Manual POWER: This is the main power button, which is used to apply or turn off the main system power. Turning off system power with this button removes the main power but keeps standby power supplied to the system.

  • Page 31: Nic1

    NIC1 NIC1: Indicates network activity on LAN1 when flashing. HDD: Indicates IDE channel activity. On the SuperServer 6033P-8R, this LED indicates SCSI and CD-ROM drive activity when flashing. Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.

  • Page 32: Scsi Drive Carrier Leds

    Red: A SAF-TE compliant backplane is needed to activate the red LED, which indicates a drive failure. (A SAF-TE compliant SCSI backplane is standard on the 6033P-8R.) If one of the SCSI drives fail, you should be notified by your system management software. Please refer to Chapter 6 for instructions on...

  • Page 33: Chapter 4: System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 6033P-8R from damage: ! Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 34: General Safety Precautions

    General Safety Precautions Follow these rules to ensure general safety: ! Keep the area around the SuperServer 6033P-8R clean and free of clutter. ! The SuperServer 6033P-8R weighs approximately 75 lbs (34.1 kg.) when fully loaded. When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight.

  • Page 35: Esd Precautions

    ! After accessing the inside of the system, close the system back up and secure it to the rack unit with the retention screws after ensuring that all connections have been made. ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other.

  • Page 36: Operating Precautions

    Operating Precautions Care must be taken to assure that the chassis cover is in place when the 6033P-8R is operating to assure proper cooling. Out of warranty damage to the 6033P-8R system can occur if this practice is not strictly followed.
  • Page 37 Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the X5DP8-G2 serverboard, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter. Remember to close the chassis completely when you have finished working on the serverboard to protect and cool the system sufficiently.

  • Page 38: Pga Processor And Heatsink Installation

    UPERSERVER 6033P-8R User’s Manual PGA Processor and Heatsink Installation When handling the processor package, avoid placing direct pressure on the label area of the fan. Also, do not place the serverboard on a conductive surface, which can damage the BIOS battery and prevent the system from booting up.
  • Page 39 4. Apply the proper amount of thermal compound to the CPU die and place the heatsink on top of the CPU. Make sure the heatsink sits completely flat on the CPU - if not, the space between the two will degrade the heat dissipation function of the heatsink, which may cause the processor to overheat.
  • Page 40 UPERSERVER 6033P-8R User’s Manual Figure 5-2. Heatsink Installation...

  • Page 41: Connecting Cables

    Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from block- ing the flow of cooling air that moves through the system from front to back.

  • Page 42: Connecting The Control Panel

    UPERSERVER 6033P-8R User’s Manual Connecting the Control Panel JF2 contains header pins for various front control panel connectors. See Figure 5-3 for the pin locations of the various front control panel buttons and LED indicators. Please note that even and odd numbered pins are on opposite sides of each header.

  • Page 43: I/O Ports

    Keyboard USB Ports (Purple) Installing Memory Note: Check the Supermicro web site for recommended memory modules: http://www.supermicro.com/support/. Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Also note that the memory is interleaved to improve performance (see step 1).
  • Page 44 UPERSERVER 6033P-8R User’s Manual 3. Gently press down on the DIMM module until it snaps into place in the slot. Repeat for all modules (see step 1 above). Memory Support The X5DP8-G2 only supports ECC registered DDR266/200 (PC2100/1600) memory. If you are using 533 MHz FSB processors, you must use DDR266 SDRAM.

  • Page 45: Adding Pci Cards

    Adding PCI Cards PCI-X slots: The X5DP8-G2 has a total of six 3.3V PCI-X slots, which consist of two 64- bit, 133 MHz PCI-X, one 64-bit 100 MHz PCI-X and three 64-bit, 66 MHz PCI- X slots. The SC832S-R760 chassis accommodates up to six standard (full sized) add-on cards.

  • Page 46: Serverboard Layout

    UPERSERVER 6033P-8R User’s Manual Serverboard Layout Figure 5-7. SUPER X5DP8-G2 Layout Keyboard Mouse DIMM #1A USB 0/1 DIMM #1B DIMM #2A COM1 DIMM #2B DIMM #3A DIMM #3B DIMM #4A DIMM #4B V G A Battery GLAN1 Rage GLAN2 Overheat...

  • Page 47: X5Dp8-G2 Quick Reference

    X5DP8-G2 Quick Reference Jumper Description JBT1 CMOS Clear Speaker Enable (page 5-21) JPA1/JPA2 SCSI CH A/B Termination GLAN Enable/Disable VGA Enable/Disable Power Fail Alarm En/Disable JP22 SCSI Enable/Disable JP37 Watch Dog Enable/Disable JP38 Thermal Fan Enable/Disable JP39 Front Side Bus Speed Connector Description ATX PWR CONN...

  • Page 48: Connector Definitions

    UPERSERVER 6033P-8R User’s Manual Connector Definitions ATX Power Connection The ATX power supply connector meets the SSI (Superset ATX) 24- pin specification, however it also supports a 20-pin power supply connector. Make sure that the ori- entation of the PS connector is correct.

  • Page 49: Hdd Led

    HDD LED The HDD (IDE Hard Disk Drive) LED connection is located on pins 13 and 14 of JF2. Attach the IDE hard drive LED cable to display disk ac- tivity. Refer to the table on the right for pin definitions. NIC1 LED The NIC1 (Network Interface Con- troller) LED connection is located...

  • Page 50: Reset Button

    UPERSERVER 6033P-8R User’s Manual Reset Button The Reset Button connection is lo- cated on pins 3 and 4 of JF2. At- tach it to the hardware reset switch on the computer chassis. Re- fer to the table on the right for pin definitions.

  • Page 51: Extra Usb Headers

    Extra Universal Serial Bus Headers Extra USB headers (USB2/USB3) can be used for front side USB access. You will need a USB cable (not included) to use either connection. Refer to the tables on the right for pin definitions. An ad- ditional header (USB4) designated J27 is located near the Chassis Fan 3 header.

  • Page 52: Fan Headers

    UPERSERVER 6033P-8R User’s Manual Fan Headers The X5DP8-G2 has several CPU and chassis fan headers. See the table on the right for pin defini- tions. Power LED/Speaker/NMI On the JDI header, pins 1-3 are for a power LED, pins 4-7 are for the speaker and pins 8-9 are for the NMI connection.

  • Page 53: Wake-On-Lan

    Wake-On-LAN The Wake-On-LAN header is des- ignated WOL. See the table on the right for pin definitions. You must enable the LAN Wake-Up setting in BIOS to use this feature. must also have a LAN card with a Wake-on-LAN connector cable.

  • Page 54: Jumper Settings

    UPERSERVER 6033P-8R User’s Manual Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 55: Glan Enable/Disable

    GLAN Enable/Disable Change the setting of jumper JD4 to enable or disable the onboard GLAN ports (GLAN1 and GLAN2) on the serverboard. See the table on the right for jumper settings. The default setting is enabled VGA Enable/Disable JP4 allows you to enable or disable the VGA port.

  • Page 56: Scsi Termination Enable/Disable

    UPERSERVER 6033P-8R User’s Manual SCSI Termination Enable/ Disable Jumpers JPA1 and JPA2 allow you to enable or disable termination for the individual SCSI channels. Jumper JPA1 controls SCSI channel A and JPA2 controls SCSI channel The normal (default) setting is open to enable (teminate) both SCSI channels.

  • Page 57: Speaker Enable/Disable

    Speaker Enable/Disable On the JD1 header, add a jumper to pins 6-7 to enable the onboard speaker. If you wish to use an external speaker, remove it to dis- able the onboard speaker. 5-10 Onboard Indicators GLAN LEDs The Ethernet ports (located beside the VGA port) have two LEDs.

  • Page 58: Floppy Connector

    UPERSERVER 6033P-8R User’s Manual 5-11 Floppy/Hard Disk Drive and SCSI Connections Note the following when connecting the floppy and hard disk drive cables: • The floppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1.

  • Page 59: Ide Connectors

    IDE Connectors There are no jumpers to configure the onboard IDE#1 and #2 connectors. See the table on the right for pin definitions. Ultra320 SCSI Connectors Refer to the table on the right for the pin defi- nitions of the Ultra320 SCSI connectors lo- cated at JA1 and JA4.

  • Page 60: 5-12 Installing Software Drivers

    5-12 Installing Software Drivers After all the hardware has been installed you must install the software drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your serverboard. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-8 should appear.

  • Page 61: Chapter 6: Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC832S-R760 chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows. Tools Required The only tool you will need to install components and perform maintenance is a Philips screwdriver.

  • Page 62: Control Panel

    UPER ERVER 6033P-8R Manual Figure 6-1. Chassis: Front and Rear Views SCSI Drives (8) Keyboard/Mouse Ports USB Ports Control Panel The control panel (located on the front of the chassis) must be connected to the JF2 connector on the serverboard to provide you with system status indications.

  • Page 63: System Fans

    Four 9-cm fans (and the active CPU heatsinks) provide all the cooling needed for the SuperServer 6033P-8R. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components.

  • Page 64: Drive Bay Installation/Removal

    UPER ERVER 6033P-8R Manual Figure 6-2. System Cooling Fans Drive Bay Installation/Removal Accessing the Drive Bays SCSI Drives: You do not need to access the inside of the chassis to replace or swap SCSI drives. Proceed to the next step for instructions.

  • Page 65: Scsi Drive Installation

    SCSI Drive Installation Mounting a SCSI drive in a drive carrier: The SCSI drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the SCSI drive bays. For this reason, even empty carriers without SCSI drives installed must remain in the chassis to cool each drive evenly.
  • Page 66 UPER ERVER 6033P-8R Manual Installing/removing hot-swap SCSI drives: The SCSI drive bays are located in the front of the chassis, making them easily accessible for installation and removal. The SCSI drives are hot- swap units, meaning that they can be installed and removed while the system is running.

  • Page 67: Installing A Component In The 5.25" Drive Bay

    Figure 6-5. BUZZER RESET FAN#3 JP43 SCSI Backplane Jumper Settings Location Jumper Description JP19 JP41 JP42 JP43 *Pressing the mute button on the control panel will disable the buzzer alarm. You should then press the button once again to re-enable the alarm. Installing a Component in the 5.25"...
  • Page 68 UPER ERVER 6033P-8R Manual Installing/removing 5.25" drive bay component Two 5.25" drive bays are located in the front of the chassis, making them easily accessible for installation and removal. Components installed in these bays are not hot-swappable, meaning system power must be turned off before installing and/or removing them.

  • Page 69: Cd-Rom And Floppy Drive Installation

    The top cover of the chassis must be opened to gain access to the CD-ROM and floppy drive bays. The 6033P-8R accomodates only slim CD-ROM drives. Side mounting brakets are typically needed to mount a slim CD-ROM drive in the 6033P-8R server.
  • Page 70 UPER ERVER 6033P-8R Manual Figure 6-7b. Floppy Drive Installation 6-10...

  • Page 71: Power Supply

    Power Supply The SuperServer 6033P-8R has a 760 watt redundant power supply consisting of three 380W power modules. Each power supply module has an auto-switching capability, which enables it to automatically sense and operate at a 100V to 240V input voltage.
  • Page 72 UPER ERVER 6033P-8R Manual Notes 6-12...

  • Page 73: Chapter 7: Bios

    Please refer Manual Download <http://www.supermicro.com> for any changes to BIOS that may not be reflected in this manual. System BIOS The BIOS is the Basic Input Output System used in all IBM and PS/2 ®...

  • Page 74: Running Setup

    SUPERSERVER 6033P-8R User's Manual Running Setup *Default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choos- ing the appropriate text from the main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (see on next page).

  • Page 75: Advanced

    Main BIOS Setup Menu Main Advanced System Time System Date Legacy Diskette A: Legacy Diskette B: ! Primary Master ! Primary Slave ! Secondary Master ! Secondary Slave System Memory Extended Memory F1 Help Select Item Esc Exit Select Menu Main Setup Features System Time To set the system date and time, key in the correct information in the...

  • Page 76: Legacy Diskette A

    SUPERSERVER 6033P-8R User's Manual Legacy Diskette A This setting allows the user to set the type of floppy disk drive installed as diskette A. The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.
  • Page 77 Type Selects the type of IDE hard drive. The options are Auto (allows BIOS to automatically determine the hard drive's capacity, number of heads, etc.), a number from 1-39 to select a predetermined type of hard drive, CD-ROM and ATAPI Removable. Multi-Sector Transfers Select the number of transfer sectors.
  • Page 78 SUPERSERVER 6033P-8R User's Manual Advanced Setup Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>.
  • Page 79 Quiet Boot This setting allows you to Enable or Disable the diagnostic screen during boot-up. Legacy USB Support This setting allows you to enable support for Legacy USB devices. The settings are Enabled and Disabled. Reset Configuration Data Options are Yes and No. Choosing Yes will clear the Extended System Configuration Data (ECSD).
  • Page 80 SUPERSERVER 6033P-8R User's Manual Interrupt Select the IRQ (interrupt request) for serial port A. Options are IRQ3 and IRQ4. Serial Port B This setting allows you to assign control of serial port B. The options are Enabled (user defined), Disabled, Auto (BIOS controlled) and OS Controlled.
  • Page 81 Mode Specify the parallel port mode. Options are Output Only, Bi-directional, EPP and ECP. DMA Channel Specify the DMA channel. Options are DMA1 and DMA3. Floppy Disk Controller This setting allows you to assign control of the floppy disk controller. The options are Enabled (user defined), Disabled and Auto (BIOS controlled).
  • Page 82 SUPERSERVER 6033P-8R User's Manual ECC Configuration This setting lets you enable or disable ECC (Error Correction and Checking). The options are ECC and Disabled. ECC Error Type This setting lets you select which type of interrupt will be activated as a result of an ECC error.
  • Page 83 Split Lock Operations This setting allows you to Enable or Disable split lock operations. Hyper-threading This setting allows you to Enable or Disable hyper-threading. Enabling hyper-threading results in increased CPU performance. L3 Cache This setting allows you to Enable or Disable the L3 cache. ! ! ! ! ! DMI Event Logging Access the submenu to make changes to the following settings.
  • Page 84 SUPERSERVER 6033P-8R User's Manual Clear All DMI Event Logs Highlight this item and press <Enter> to clear all DMI event logs. ! ! ! ! ! Console Redirection Access the submenu to make changes to the following settings. COM Port Address Specifies to redirect the console to On-board COMA or On-board COMB.

  • Page 85: Security

    Security Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Security BIOS settings are described in this section. Main Advanced Supervisor Password Is:...
  • Page 86 SUPERSERVER 6033P-8R User's Manual Set Supervisor Password When the item "Set Supervisor Password" is highlighted, hit the <Enter> key. When prompted, type the Supervisor's password in the dialogue box to set or to change supervisor's password, which allows access to BIOS.

  • Page 87: Power

    Power Choose Power from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Power setting options are displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Power BIOS settings are described in this section. Main Advanced ACPI Mode:...
  • Page 88 SUPERSERVER 6033P-8R User's Manual Standby Timeout Use this setting to specify the period of system inactivity to transpire before entering the standby state. Options are Off, 16 sec, 32 sec, 48 sec, 1 min, 2 min, 4 min and 8 min.

  • Page 89: Boot

    Boot Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Highlighting a setting with a + or - will expand or collapse that entry. See details on how to change the order and specs of boot devices in the Item Specific Help window.
  • Page 90 SUPERSERVER 6033P-8R User's Manual +Hard Drive Highlight and press <Enter> to expand the field. See details on how to change the order and specs of hard drives in the Item Specific Help w i n d o w . Network Boot See details on how to change the order and specs of network boot devices in the Item Specific Help window.

  • Page 91: Pir

    Choose PIR from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>. PIR stands for "Processor Info ROM", which allows BIOS to read certain information from the processors.
  • Page 92 SUPERSERVER 6033P-8R User's Manual ! ! ! ! ! Processor Info ROM Data Highlight this and hit <Enter> to see PIR data on the following items: Header Info Processor Data Processor Core Data L3 Cache Data Package Data Part Number Data...

  • Page 93: Exit

    Chassis Fan 2 Processor Vcore 3.3V Standby 3.3V Vcc 5V Vcc 12V Vcc 1.8V Vcc -12V Vcc Exit Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. All Exit BIOS settings are described in this section.
  • Page 94 SUPERSERVER 6033P-8R User's Manual Exit Saving Changes Highlight this item and hit <Enter> to save any changes you made and to exit the BIOS Setup utility. Exit Discarding Changes Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving any changes you may have made.

  • Page 95: Appendix A: Bios Post Messages

    Appendix A: BIOS POST Messages Appendix A BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages.
  • Page 96 UPER ERVER 6033P-8R Manual System CMOS checksum bad - Default configuration used System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The BIOS installed Default Setup Values. If you do not want these values, enter Setup and enter your own values.
  • Page 97 Appendix A: BIOS POST Messages System cache error - Cache disabled RAM cache failed and BIOS disabled the cache. On older boards, check the cache jumpers. You may have to replace the cache. See your dealer. A disabled cache slows system performance considerably. CPU ID: CPU socket number for Multi-Processor error.
  • Page 98 UPER ERVER 6033P-8R Manual Fixed Disk n Fixed disk n (0-3) identified. Invalid System Configuration Data Problem with NVRAM (CMOS) data. I/O device IRQ conflict I/O device IRQ conflict error. PS/2 Mouse Boot Summary Screen: PS/2 Mouse installed. nnnn kB Extended RAM Passed Where nnnn is the amount of RAM in kilobytes successfully tested.
  • Page 99 Appendix A: BIOS POST Messages Parity Check 2 nnnn Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. Press <F1> to resume, <F2> to Setup, <F3> for previous Displayed after any recoverable error message.
  • Page 100 UPER ERVER 6033P-8R Manual Notes...

  • Page 101: Appendix B: Bios Post Codes

    This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST codes are divided into two categories: recoverable and terminal. Recoverable POST Errors When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem. following beep codes: 1 long and two short beeps - video configuration error 1 continuous long beep - no memory detected...
  • Page 102 UPER ERVER 6033P-8R Manual POST Code Description Initialize keyboard controller 1-2-2-3 BIOS ROM checksum Initialize cache before memory Auto size 8254 timer initialization 8237 DMA controller initialization Reset Programmable Interrupt Controller 1-3-1-1 Test DRAM refresh 1-3-1-3 Test 8742 Keyboard Controller...
  • Page 103 POST Code Description Initialize POST display service Display prompt “Press F2 to enter SETUP” Disable CPU cache Test RAM between 512 and 640 kB Test extended memory Test extended memory address lines Jump to UserPatch1 Configure advanced cache registers Initialize Multi Processor APIC Enable external and CPU caches Setup System Management Mode (SMM) area Display external L2 cache size...
  • Page 104 UPER ERVER 6033P-8R Manual POST Code Description Fix up Multi Processor table 1-2 Search for option ROMs. One long, two short beeps on checksum failure Check for SMART Drive (optional) Shadow option ROMs Set up Power Management Initialize security engine (optional)
  • Page 105 POST Code Description Redirect Int 13h to Memory Technologies Devices such as ROM, RAM, PCMCIA, and serial disk Redirect Int 10h to enable remote serial video Re-map I/O and memory for PCMCIA Initialize digitizer and display message Unknown interrupt The following are for boot block in Flash ROM POST Code Description Initialize the chipset...
  • Page 106 UPER ERVER 6033P-8R Manual Notes...

  • Page 107: Appendix C: Supero Doctor Iii

    Overview The Supero Doctor III program is a Web-based management tool that supports remote management capability and includes both Remote and Local Manage- ment tools. The local management is called the SD III Client. The Supero Doctor III program included on the CD-ROM that came with your motherboard allows you to monitor the environment and operations of your system.
  • Page 108 Chassis intrusion Redundant power failure (hardware dependant) Note: For Linux operating systems, please refer to the Supero Doctor II informa- tion posted on our website at ftp://ftp.supermicro.com/utility/Supero_Doctor_II/ Linux/ . The figures below display two of the key features of SDIII.
  • Page 109 Note: SD III software can be downloaded from our website at ftp:// ftp.supermicro.com/utility/Supero_Doctor_III/. You can also download the SDIII User's Guide at http://www.supermicro.com/PRODUCT/Manuals/SDIII/ UserGuide.pdf. For Linux, we recommend the use of Supero Doctor II. Please refer to our Supero Doctor II information posted at ftp://ftp.supermicro.com/utility/ Supero_Doctor_II/Linux/.
  • Page 110 UPER ERVER 6033P-8R User's Manual Notes...

  • Page 111: Appendix D: System Specifications

    Appendix D System Specifications Processors ® Single or dual Intel Xeon MB integrated cache at a front side (system) bus speed of 533/400 MHz. Note: Refer to the motherboard specifications on our web site for updates on supported processors. Chipset Intel E7501 chipset BIOS ®...
  • Page 112 UPER ERVER 6033P-8R User's Manual Expansion Slots Six (6) 64-bit PCI-X slots (with optional speed/PCI-X and PCI settings) Motherboard Model: X5DP8-G2 Form Factor: ATX Dimensions: 12 x 13 in (305 x 330 mm) System Input Requirements AC Input Voltage: 100-240V AC...
  • Page 113 Appendix D: System Specifications Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: EN 60950/IEC 60950-Compliant, UL Listed (USA), CUL Listed (Canada), TUV Certified (Germany), CE Marking (Europe)
  • Page 114 UPER ERVER 6033P-8R User's Manual Notes...
