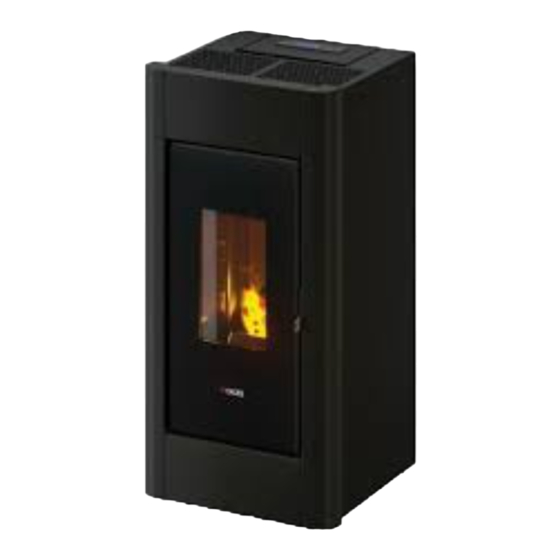

Cadel ARCO 7 T1 Installer Manual

Cadel ARCO 7 T1 Installer Manual

Hide thumbs Also See for ARCO 7 T1:

Advertisement

Quick Links

INSTALLER MANUAL
Pellet Stove
EN
new
©2023 CADEL srl | All rights reserved - Tutti i diritti riservati
ARCO 7 T1 - ARCO 7 T1 BI-FLUX
ARCO 9 T2 - ARCO 9 T2 BI-FLUX
ELLE PLUS 9 T2 - LUCE PLUS 9 T2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCO 7 T1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cadel ARCO 7 T1

  • Page 1 INSTALLER MANUAL Pellet Stove ©2023 CADEL srl | All rights reserved - Tutti i diritti riservati ARCO 7 T1 - ARCO 7 T1 BI-FLUX ARCO 9 T2 - ARCO 9 T2 BI-FLUX ELLE PLUS 9 T2 - LUCE PLUS 9 T2...
  • Page 2: Table Of Contents

    6.13 CONNECTION TO THE EXTERNAL THERMOSTAT ....19 SUMMARY 6.14 STOVE CALIBRATION AND DEPRESSION MEASUREMENT MANUAL SIMBOLOGY ..........3 ..................19 PACKAGING AND HANDLING ........3 SPECIAL MAINTENANCE ......... 20 PACKAGING ..............3 INTRODUCTION ............20 REMOVING THE STOVE FROM THE PALLET .....3 FUME CHAMBER CLEANING .........20 STOVE HANDLING ............4 FUME CONDUIT CLEANING ..........21 CHIMNEY FLUE ............
  • Page 3: Manual Simbology

    MANUAL SIMBOLOGY USER AUTHORISED TECHNICIAN (ONLY to interpret or the Stove-manufacturer or the Authorized Technician of Technical Assistance Service approved by the Stove-manufacturer) SPECIALIZED STOVE-REPAIRER CAUTION: READ CAREFULLY THE NOTE CAUTION: DANGER OR IRREVERSIBLE DAMAGE POSSIBILITY • The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/ or the Authorized Technician and/or the Specialized Stove-repairer).
  • Page 4: Stove Handling

    STOVE HANDLING Both whether the stove is packed or not it is necessary to observe the following instructions for handling and transporting the stove from its sale point to its installation point and for any future movements: • The stove must be handled with idoneous means paying attention to the existing safety regulations; •...
  • Page 5: Smoke Duct (Smoke Fitting)

    SMOKE DUCT (SMOKE FITTING) The smoke duct is the pipe that connects the appliance to the flue. This smoke fitting must comply in particular with the following requirements: • comply with product standard EN 1856-2; • its cross-section must be of constant diameter and no less than that of the appliance outlet, from the firebox outlet up to the connection in the flue;...
  • Page 6: Chimney Pot

    Fig. 3 - Chimney Flues LEGEND Fig. 3 Chimney flue with insulated stainless-steel pipes Chimney flue on the existing chimney Inspection plug Inspection door • The chimney flue must be provided CE in accordance with EN 1443 regulation. Please find attached an example of label: Fig.
  • Page 7: Maintenance

    Fig. 5 - Anti-wind chimney pots Fig. 6 - Reflux area MAINTENANCE • The fumes extraction pipes (fumes conduit + chimney flue + chimney pot) must always be cleaned, scrubbed and checked by an expert stove-repairer, in compliance with current regulations, with the instructions of the stove-manufacturer and the directives of your insurance company.
  • Page 8: Combustible Air Inlet For Sealed-Chamber

    Below 15 kW: Air duct diameter Maximum length (smooth duct) Maximum length (corrugated duct) 50 mm 60 mm 80 mm 100 mm 12 m Above 15 kW: Air duct diameter Maximum length (smooth duct) Maximum length (corrugated duct) 50 mm 60 mm 80 mm 100 mm...
  • Page 9: Examples Of Installation

    EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) Fig. 11 - Chimney flue 1. Flue installation with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by plate data) if next to flammable parts such as wood etc.
  • Page 10: Installation

    LEGEND Fig. 11 Insulation Possible diameter increase Inspection cap Inspection access panel Air inlet Tee fitting with inspection cap Distance from flammable material (smoke duct plate) Maximum 4 m Minimum 3° slope Distance from flammable material (appliance plate) Reflux area Air ducting The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683.
  • Page 11: Minimum Distances

    A sealed installation does not consume the room’s oxygen because it draws all the air from the outer environment (if suitably ducted) and makes it possible to install the product in all houses that require a high degree of insulation such as “passive” or “high energy efficiency”...
  • Page 12: Overall Dimensions

    This operation (1*) must be performed by a technician qualified to disconnect the combustion product expulsion ducts and their subsequent restoration. For generators connected to the hydraulic system, a connection must be provided between the system itself and the product so that, during extraordinary maintenance, carried out by a qualified technician, it is possible to move the generator 1 by at least 50 cm from adjacent walls without emptying the system (e.g.
  • Page 13: Removal/Assembly Of The Frame (Luce)

    LEGEND Fig. 15 Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm Ducting outlet d.8 cm Fig. 16 - General dimensions: Arco 7/9 Bi-Flux LEGEND Fig. 16 Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm Ducting outlet d.8 cm REMOVAL/ASSEMBLY OF THE FRAME (LUCE) To assemble the frame, proceed as follows: •...
  • Page 14: Removal/Assembly Of The Frame (Arco)

    Fig. 19 - Remove screws Fig. 20 - Remove the frame REMOVAL/ASSEMBLY OF THE FRAME (ARCO) To assemble the frame, proceed as follows: • Open the door and remove the security screw (see Fig. 21). • Push the frame outwards and release the teeth (see Fig. 22). •...
  • Page 15: Hot Air Ducting System : Luce Plus 9

    Fig. 24 - Remove screws Fig. 25 - Door removal DOOR ASSEMBLY To assemble the door you must centre the pivots fixed to the door, on the structure bracket. After having mounted the door with the screwdriver, lift the lever so that the door is locked. HOT AIR DUCTING SYSTEM : LUCE PLUS 9 The stove is provided with 1 hot air outlet and by default is oriented as follows: front (see Fig.
  • Page 16: Assembly Of Upper Exhaust With Concentric Kit

    Fig. 27 - Unscrew the clamp 1 Fig. 28 - Unscrew the clamp 2 Fig. 29 - Pipe passage • Install the pipe on the left or rear (see Fig. 30). • To pass the pipe on the right, remove the box by unscrewing two screws (see Fig. 31 Fig. 32). Insert a new pipe (see Fig.
  • Page 17: Rear Or Upper Fume Exhaust

    Fig. 34 - Upper exhaust with concentric kit Fig. 35 - Insert pipe d.80 mm Fig. 36 - Block with clamp • • Insert the flexible hose in the hole (see Fig. 37) and connect it to the combustion air sleeve (see Fig. 38). Fig.
  • Page 18: Ducting Data

    UPPER EXHAUST • Loosen the clamp (see Fig. 40). • Rotate the fitting and lock the clamp (see Fig. 41). Fig. 40 - . Fig. 41 - . 6.11 DUCTING DATA Fig. 42 - Ducting system example • If the stove is not fitted with ducting system, it provide a hot air capacity ranging from a minimum of 44 m /h to a maximum of 86 m /h with a temperature ranging between 95°C and 140°C.
  • Page 19: Electric Connection

    The installation must be carried out by an authorised technician. • According to the factory parameters, 1/2 of the generated heat is conveyed into the room where the stove is installed, while the remaining 1/2 are conveyed through the left ducting pipe system. •...
  • Page 20: Special Maintenance

    • Remove the frame/front panel from the stove (see dedicated chapter). • Connect with a tube to the digital pressure switch to detect depression (see Fig. 46). • Load the feed screw via appropriate function. • Start the stove and set "Set flame" to power 1 (the start-up time of this stove lasts between 8 and 10 minutes to ensure mini- mum draught).
  • Page 21: Fume Conduit Cleaning

    • Clean and vacuum the burning pot compartment of any ash accumulated inside (see Fig. 48). • Fig. 47 - Remove the burning pot Fig. 48 - Vacuum out the ash Fig. 49 - Remove the LUCE Mask Fig. 50 - Remove the ARCO Mask •...
  • Page 22: Fume Passage Cleaning

    Fig. 54 - Fume conduit cleaning • Remove the inspection lid of the T-union (see Fig. 54). • Extract the ash which has accumulated in the inner. • After cleaning repeat the operation in reverse order, checking the condition and efficiency of the gasket, and if necessary replace it.
  • Page 23: Fume Fan Cleaning

    Fig. 58 - Clean with pipe cleaner Fig. 59 - Vacuum out the ash FUME FAN CLEANING Clean every the year the fume fan from ash or dust which can cause a blade unbalance and a greater noise. • Open the door and release the panel under the door (see dedicated chapter). •...
  • Page 24 PROBLEM CAUSE SOLUTION INTERVENTION The stove is without Check if the plug is connected. power supply Burned protection fuse in the electric Replace the protection fuses in the electric socket (3.15A-250V). socket The control display Faulty control Replace the control display. does not switch on display Faulty flat cable...
  • Page 25 PROBLEM CAUSE SOLUTION INTERVENTION Empty hopper Full the hopper. Auger blocked by a foreign object (for Clean the auger. example nails) Bad quality pellets Try other types of pellets. Pellet drop value too Adjust the pellet loading. low "phase 1" The fire extinguish and the stove stops Check if on the...
  • Page 26 PROBLEM CAUSE SOLUTION INTERVENTION Faulty or out of order Replace the gaskets. door gaskets Ash remains along the stove Contact an expert stove-repairer who will immediately provide for Not sealed fume sealing the junctions with high-temperature silicone and/or for pipes replacing pipes with those in compliance to current regulations.
  • Page 27: Technical Datas

    TECHNICAL DATAS REPAIR INFORMATION Now we give some instructions for the Authorized Technician to take into consideration to have access to stove mechanical com- ponents. • For fuse replacement in the electric socket which stands on the back of the stove, extract the fuses to change with the aid of a screwdriver for opening the shutter (see Fig.
  • Page 28: Features

    FEATURES ARCO 7 T1 DESCRIPTION ARCO 7 BI-FLUX T1 WIDTH 84 cm DEPTH 29,4 cm HEIGHT 108,2 cm WEIGHT 114 kg INTRODUCED THERMIC POWER (Min/Max) 3,6 - 8,3 kW NOMINAL THERMIC POWER (Min/Max) 3,3 - 7 kW EFICIENCY (Min/Max) 91 - 90 % FUME TEMPERATURE (Min/Max) 32 - 180 °C...
  • Page 29 ARCO 9 T2 DESCRIPTION LUCE PLUS 9 T2 ELLE PLUS 9 T2 ARCO 9 BI-FLUX T2 WIDTH 79,6 cm 90,2 cm 84 cm DEPTH 28,7 cm 29,5 cm 29,4 cm HEIGHT 109,2 cm 108,2 cm 108,2 cm WEIGHT 95 kg 126 kg 114 kg INTRODUCED THERMIC POWER (Min/Max)
  • Page 30 NOTE...
  • Page 31 NOTE...
  • Page 32 Rev. 00- 2023 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Martiri della Libertà, 74 - Italy www.pegasoheating.com Tel. +39 0438 1520200...
