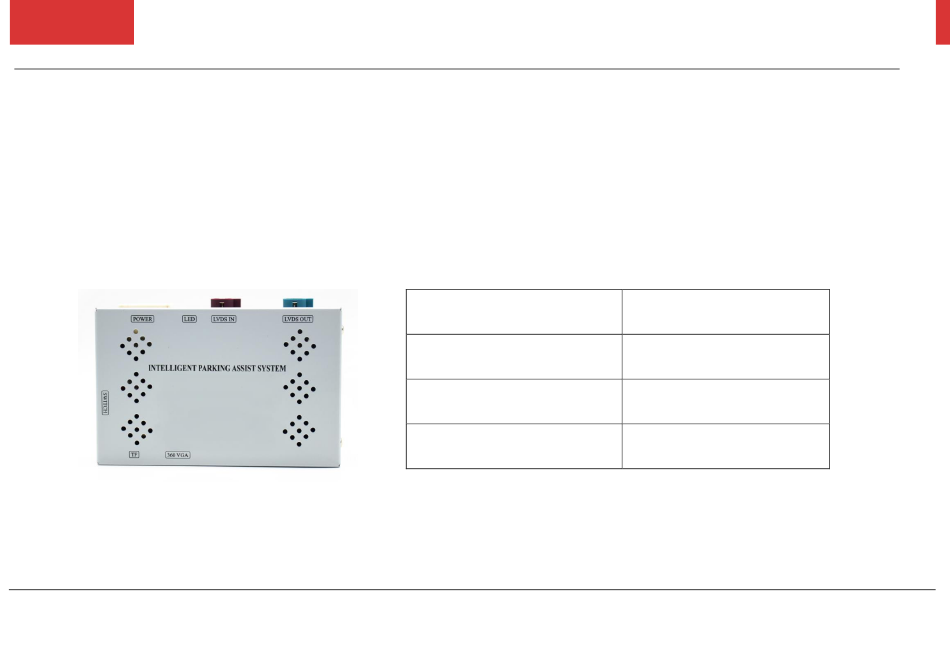

- Page 1 User Manual v.LiNK Interface for BMW NBT2 systems with 6.5”, 8.8” or 10.25” monitor Model name VL7-NBT2 Released Date 2019-04-15 Manual Version Language English VL7-NBT2 11.09.2019...
- Page 2 D. Power supply output 12V (500mA) for rear-view and front camera (one for both) E. Power supply output 12V (500mA) ACC F. Support automatically switched to front view camera for 10 seconds after engaging D Limitations: For vehicles with automatic transmission only! VL7-NBT2 11.09.2019...
-
Page 3: Delivery Contents
Delivery contents Camera Interface LVDS Cables Power Harness VL7-NBT2 11.09.2019... -
Page 4: Wiring Diagram
Wiring Diagram... -
Page 5: Installation
Installation Please note that the Quadlock connector of the vehicle harness can have optical wires. Transfer the optical wires of the vehicle female Quadlock connector to the female Quadlock connector of the interface harness. -
Page 6: Dip Switch Settings
DIP Switch Settings ON ( ▼ OFF( ▲ ON ( ▼ OFF( ▲ Car selection (see below) Set always ON Set always ON Set always ON Turn on front view camera Turn off front view camera Factory or no rear-view... - Page 7 Car Model No.1 No.2 No.3 1-4 series/X3/X4, 8.8 inch with OEM rear camera OFF(▲) OFF(▲) OFF(▲) 1-4 series/X3/X4, 8.8 inch without OEM rear camera OFF(▲) OFF(▲) ON (▼) 5 series 8.8 inch EVO with OEM rear camera OFF(▲) OFF(▲) ON(▼)
- Page 8 AV Switching (DVR-input) Long time press MENU for 2 seconds to enter DVR if DVR available.
- Page 9 Adjustment of driving path lines by touch-screen (vehicles with touch-screen only) Engage R-gear. Touch the screen for 20 seconds on a random spot. Guide-lines and 4 arrows will show. Use up, down, left, right to move the guide-lines in the corresponding directions.
- Page 10 Adjustment of driving path lines by iDrive Engage R-gear. Longpress MENU for 5 seconds. The picture will not change. Use the knob directions up, down, left, right to move the guide-lines in the corresponding directions. Push down the knob to confirm the position.
