Chapter 1

PREPARATIONS

This chapter provides basic information that you should know before using the machine.

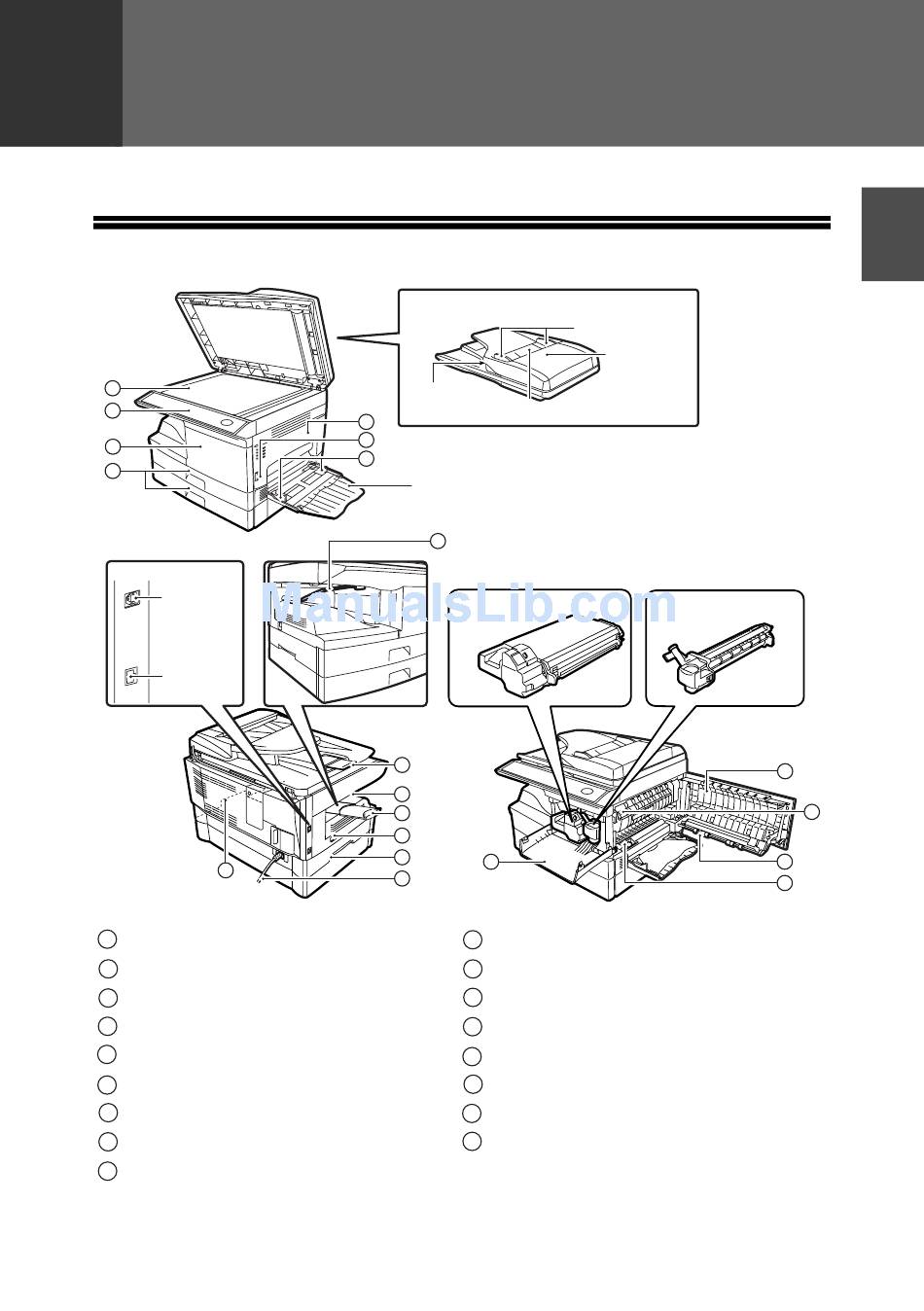

PART NAMES

1
2
3
4
Interface
USB
connector
LAN
connector
Document glass
1
Operation panel
2
Front cover
3
Paper trays
4
Side cover
5
Side cover open button
6
Bypass tray paper guides
7
Original output tray extension
8
Paper output tray
9
5
6
7
12
RSPF
Exit area
Document feeder tray
Bypass tray
17
TD (Toner/Developer)
cartridge
8
9
10
11
12
3
13
Paper output tray extension
10
Power switch
11
Handles
12
Power cord
13
Fusing unit release lever
14
Transfer charger
15
Charger cleaner
16
Paper holder arm
17
Original guides
Document
feeder cover
Drum cartridge
1
5
14
15
16
9
