Operation Panel - Sharp AL-2050CS Digital Multifunctional System Operation Manual

PREPARATIONS

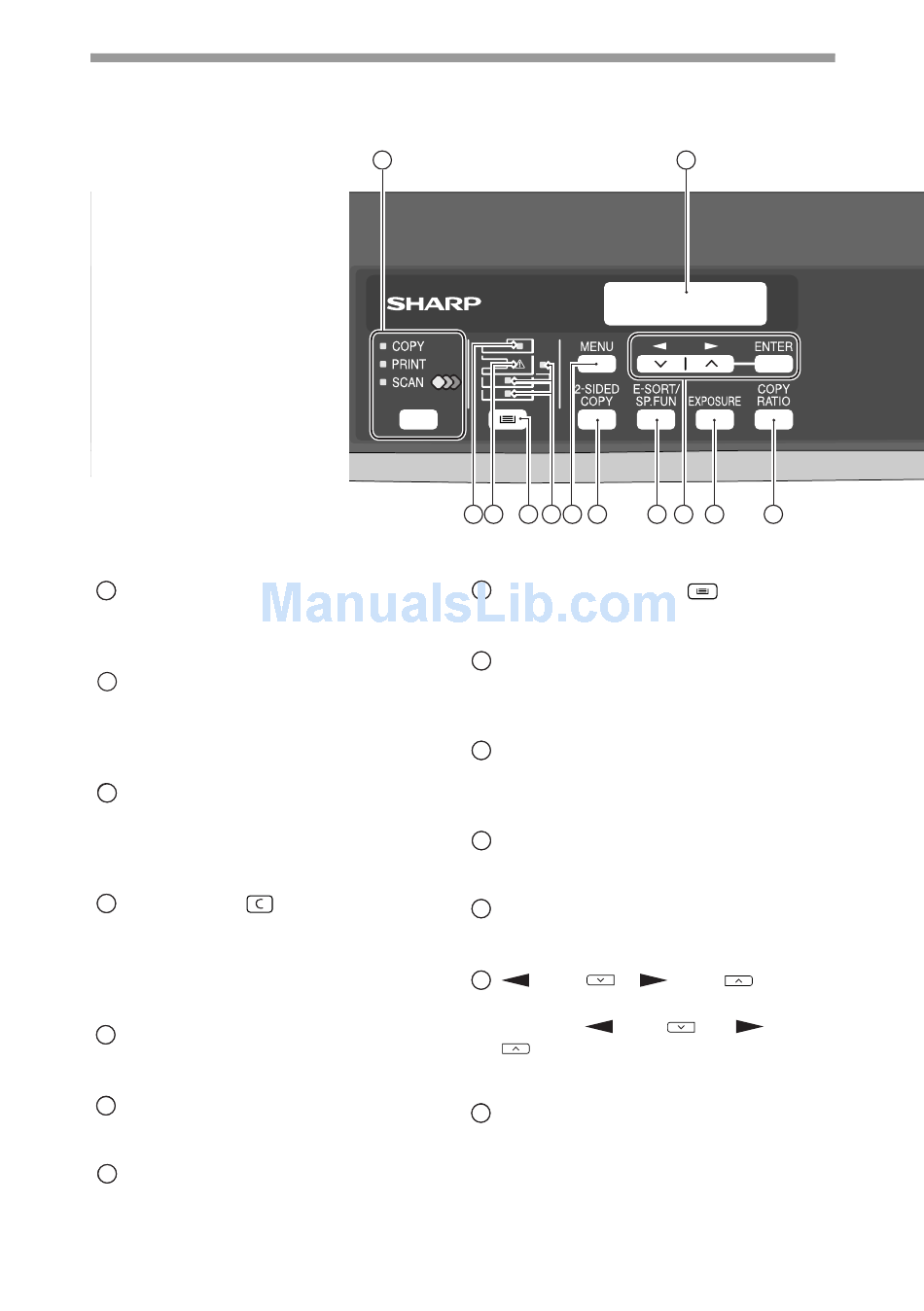

Operation panel

1 1
1
[MODE SELECT] key / Mode indicators
Press this key to select the mode. The
indicator of the selected mode lights (copy,
printer, scanner indicators).
2
Display
This shows messages indicating the
machine status and any problems that
occur, as well as user programs and
function setting menus.
3 3 3
Numeric keys
Use these to enter the number of copies
and other numerical settings.
The keys can also be used to select
items in function setting menus.
4 4 4
[CLEAR] key (
Use this to clear the set number of
copies, as well as cancel a job that is in
progress. When a setting menu appears,
use this key to move back to the
previous menu level.
5 5
5
Power save indicator
This lights up when the power save
function is activated.
6 6 6
RSPF indicator
This lights up when an original is placed
in the RSPF.
7 7
7
Error indicator
This lights steadily or blinks when a
paper misfeed or other error occurs.
10
1
)
6 7 8 9 10 11
8 8
8
[TRAY SELECT] key (
Use to select the paper tray that has the
desired paper for copying.
9 9 9
Tray location indicator
Indicates the selected paper tray. The
indicator blinks when the tray is out of paper
during operation or is not closed properly.
10 10
10 [MENU] key
Press this key to select the paper size for
copying, to configure a user program or
to display the total count.
11 11
11
[2-SIDED COPY] key
Press to select the automatic two-sided
copying mode.
12 12
12
[E-SORT/SP.FUN] key
Press to select the sort function, 2 IN 1
copy function, or margin shift function.
13 13 13
[ ] key ( ), [
[ENTER] key
Press the [ ] key (
( ) to select an item in a function
setting menu.
Press the [ENTER] key to enter a selection.
14
14 14
[EXPOSURE] key
Use to switch from auto exposure
adjustment to text mode or photo mode.
2
12 13 14 15
)
] key ( ),
) or [ ] key
