2

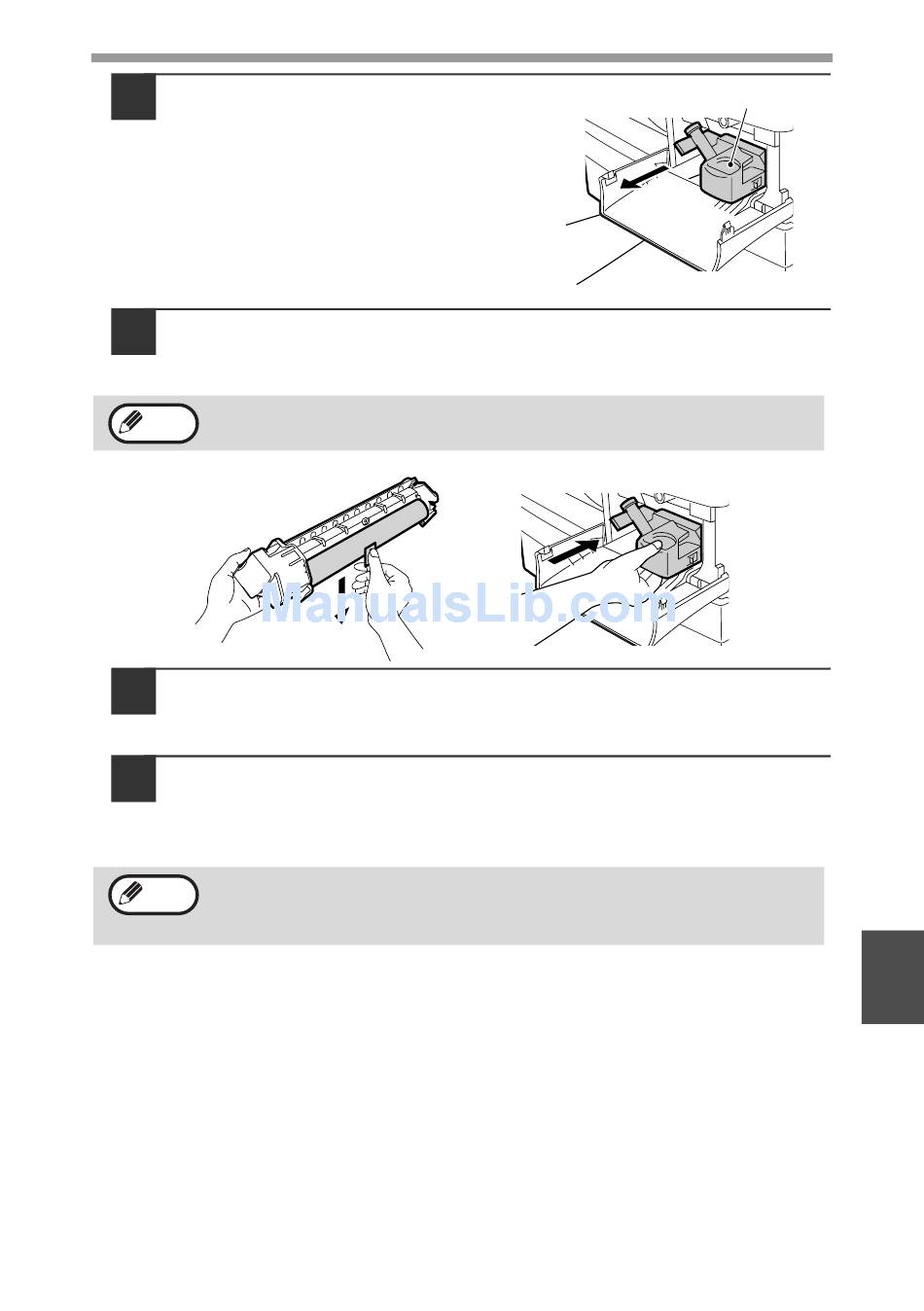

Hold the drum cartridge handle
and gently pull the cartridge out.
Dispose of the old drum cartridge
in accordance with local
regulations.
3
Remove the new drum cartridge from the protective bag and
remove the protective cover from the cartridge. Gently install
the new drum cartridge.
Do not touch the surface of the drum (green portion).
Note
Doing so may cause smudges on the copies.
4
Gently install the TD (Toner/Developer) cartridge. To install the
TD cartridge, see "INSTALLING THE TD (TONER/DEVELOPER)
CARTRIDGE" (p.14).
5
Close the front cover and then the side cover by pressing the
round projections near the side cover open button. The drum
replacement required error indicator will go out and the ready
indicator will light up.
When closing the covers, be sure to close the front cover securely and
Note
then close the side cover. If the covers are closed in the wrong order,
the covers may be damaged.
