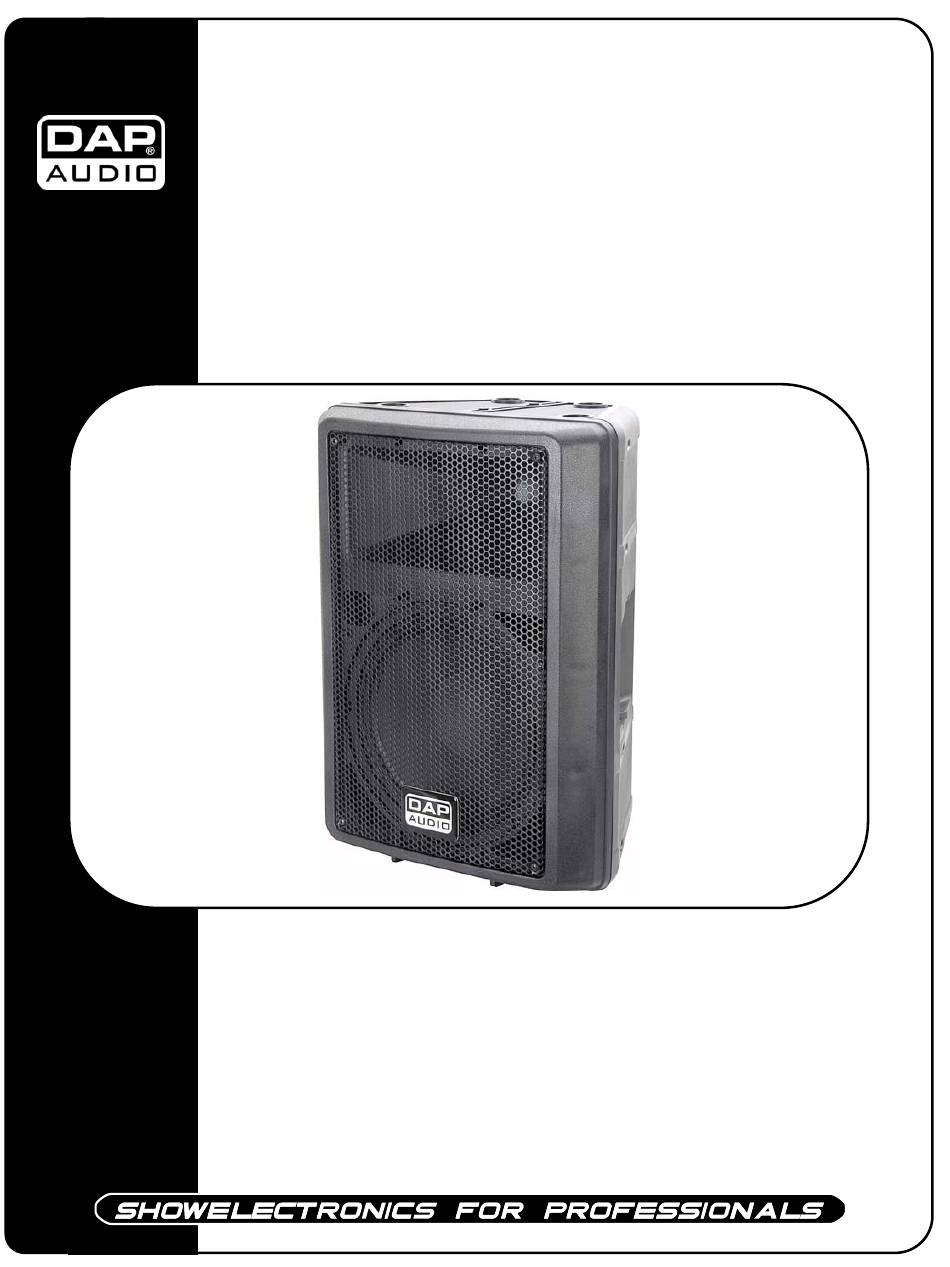

- Page 1 K-112A ORDERCODE D3562...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio K-112A brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio K-112A Product Guide Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview Front side..…………………………………………………………………………………..……. Overview Back side..…………………………………………………………………………………….……. Installation..............……………………………..………………………… Set Up and Operation..............……..…………………………….…… Connection Cables......…........………..………….…….………….….. Maintenance………......…........………..………….…….………….….. Replacing the Fuse................…………………….………………… Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
For replacement use fuses of same type and rating only. • Prevent distortion! Make sure that all components connected to the K-112A have sufficient power • ratings. Otherwise distortion will be generated because the components are operated at their limits. -
Page 6: Description
Description of the device Features The K-112A is an active 15" 2-way Fullrange speakersystem: • Adjustable Line/Mic Input with 3p. XLR and 6,3mm Jack connector • High level fader • Low level fader • Master volume fader with Clip-LED at the front •... -
Page 7: Installation
12) Switch 115V / 230V 13) MIC / LINE-Button Installation Remove all packing materials from the K-112A. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 9: Maintenance
Maintenance The K-112A requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 10: Product Specifications
Product Specifications Loudspeaker Ø: 12" High: Horn with 1,5" driver Frequency range: 55Hz-19KHz Max. power (peak): 600W RMS Power: 300W Impedance: 8 Ohm SPL (1W/1M): 100dB 1W/1m Crossover Freq.: 1.500Hz Diversity (HxV): 65° x 65° Housing: Plastics Dimensions: 440 (back inclining to 220) x 330 x 570 mm (LxWxH) Weight: 20,6 Kg Design and product specifications are subject to change without prior notice.
