- Page 1 K-115A ORDERCODE D3563...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio K-115A brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio K-115A Product Guide Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview Front side..…………………………………………………………………………………..……. Overview Back side..…………………………………………………………………………………….……. Installation..............……………………………..………………………… Set Up and Operation..............……..…………………………….…… Connection Cables......…........………..………….…….………….….. Maintenance………......…........………..………….…….………….….. Replacing the Fuse................…………………….………………… Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
(“headroom”) For replacement use fuses of same type and rating only. Prevent distortion! Make sure that all components connected to the K-115A have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits. Avoid ground loops! Always be sure to connect the power amps and the mixing console to the same electrical circuit to ensure the same phase! If system is dropped or struck, disconnect mains power supply immediately. -
Page 6: Description

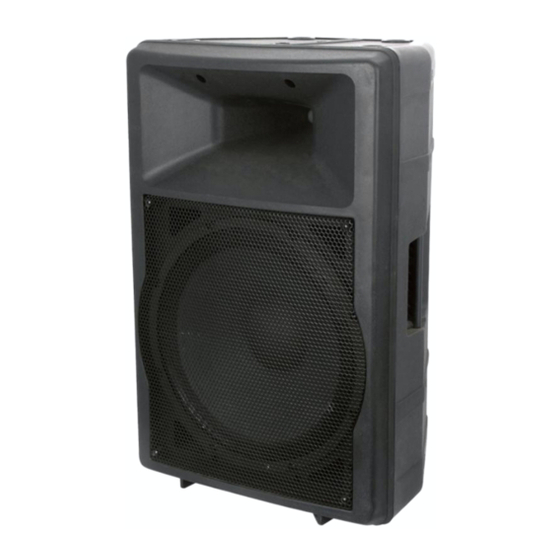

Description of the device Features The K-115A is an active 15" 2-way Fullrange speakersystem: • Adjustable Line/Mic Input with 3p. XLR and 6,3mm Jack connector • High level fader • Low level fader • Master volume fader with Clip-LED at the front •... -
Page 7: Installation
12) Switch 115V / 230V 13) MIC / LINE-Button Installation Remove all packing materials from the K-115A. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 9: Troubleshooting
Maintenance The K-115A requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 10: Product Specifications
Product Specifications Model: DAP Audio K-115A Loudspeaker Ø: 15" High: Horn with 1,5" driver Frequency range: 45Hz-20KHz Max. power (peak): 800W RMS Power: 400W Impedance: 8 Ohm SPL (1W/1M): 102dB 1W/1m Crossover Freq.: 1.700Hz Diversity (HxV): 65° x 65° Housing: Plastics...
