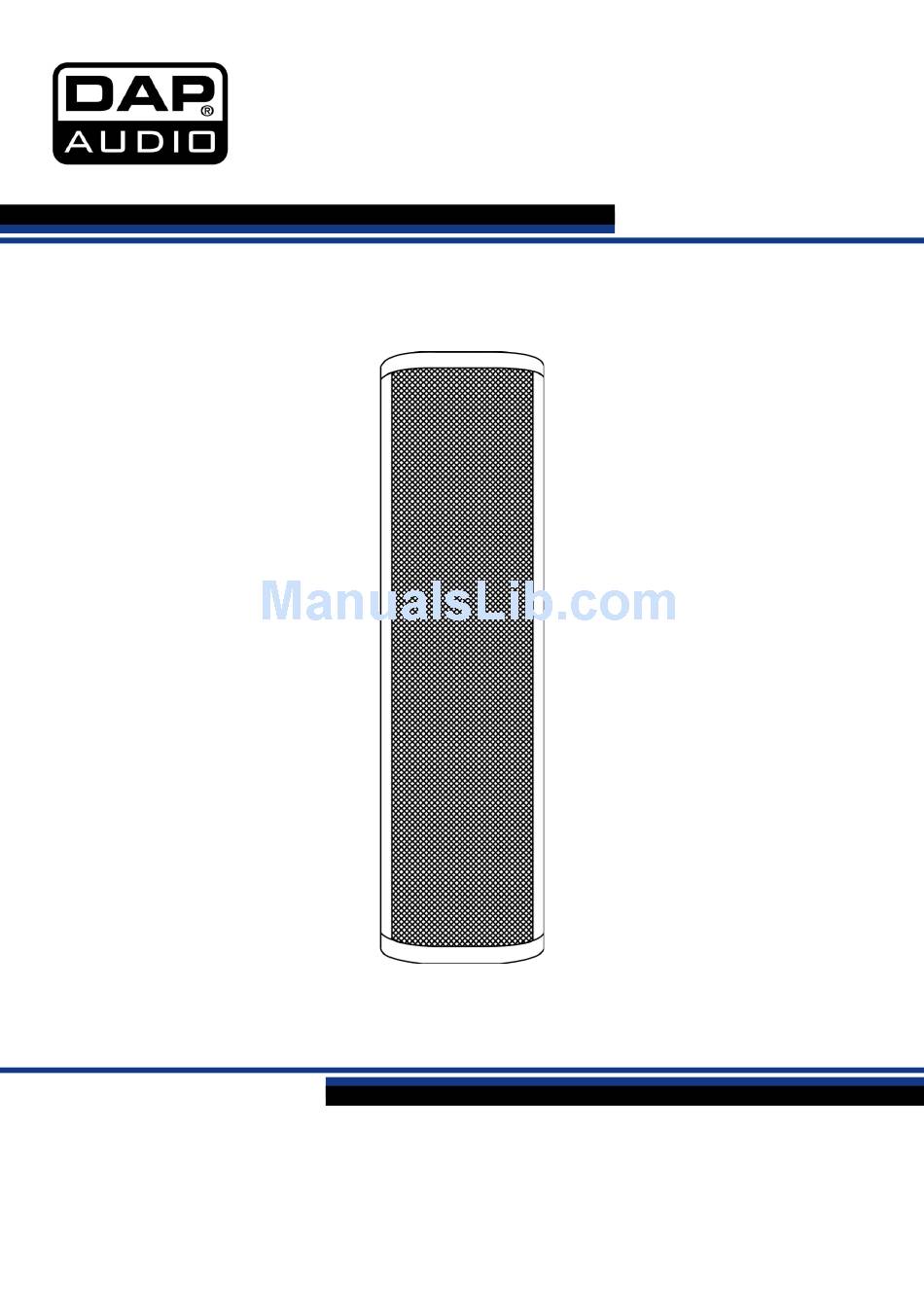

- Page 1 MANUAL ENGLISH CS-360 Ordercode: D6561 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
CS-360 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Installation ................................... 6 Set Up and Operation ............................... 6 Troubleshooting ................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio CS-360 • 2 mounting brackets •... -
Page 4: Operating Determinations
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc. You endanger your own safety and the safety of others! Improper installation can cause serious injuries and damage of property ! Refer installation of the CS-360 to a qualified technician. Do not attempt installation yourself! Ordercode: D6561... -
Page 5: Return Procedure
CS-360 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device
CS-360 Description of the device Features Power taps: 20/40W • Power consumption: 60W • Line voltage: 100V • Frequency response: 170-15 kHz • Sensitivity: 93 dB • Housing: Aluminum • Color: White • IP rating: IP44 • Dimensions: 695 x 106 x 75 mm (LxWxH) •... -
Page 7: Installation
CS-360 Installation Remove all packing materials from the CS-360. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Product Specification
CS-360 Product Specification Power taps: 20/40W Power consumption: Line voltage: 100V Frequency response: 170-15 kHz Sensitivity: 93 dB Housing: Aluminum Color: White IP rating: IP44 Dimensions: 695 x 106 x 75 mm (LxWxH) Weight: 3,3 kg Design and product specifications are subject to change without prior notice. -
Page 9: Notes
CS-360 Notes Ordercode: D6561... - Page 10 CS-360 Ordercode: D6561...
- Page 11 CS-360 Ordercode: D6561...
- Page 12 ©2015 DAP Audio...
