Summary of Contents for DAPAudio HS-15S
- Page 1 MANUAL ENGLISH HS-15S Ordercode: D6541 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 HS-15S Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Installation ................................... 5 Troubleshooting ................................. 5 Product Specification ............................... 6 Ordercode: D6541...
- Page 3 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio HS-15S • User manual •...
- Page 4 Any other operation may lead to dangers like short-circuit, burns, electric shock, etc. You endanger your own safety and the safety of others! Improper installation can cause serious injuries and damage of property ! The HS-15S can be mounted to any kind of truss with a clamp. Ordercode: D6541...
- Page 5 HS-15S Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

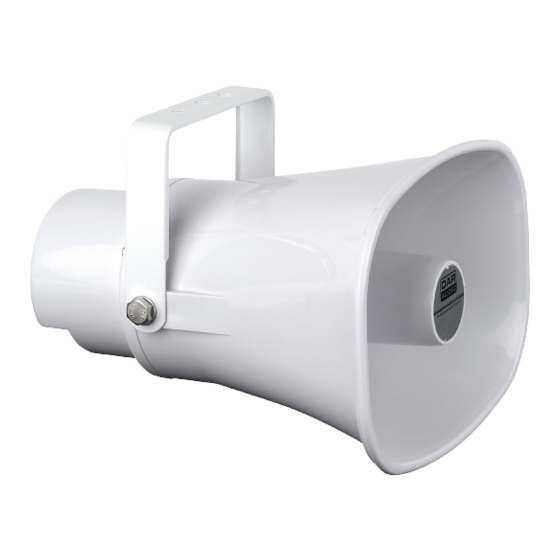

- Page 6 HS-15S Description of the device Features Power taps: 100V: 1,9/3,75/7,5/15W • 70V: 0,95/1,9/3,75/7,5/15W Line voltage: 70/100V • Impedance: 8 Ω • Frequency response: 300-8 kHz • Sensitivity: 105 dB • Housing: ABS • Color: Gray • IP rating: IP66 •...
- Page 7 HS-15S Product Specification Power taps: 100V: 1,9/3,75/7,5/15W 70V: 0,95/1,9/3,75/7,5/15W Line voltage: 70/100V Impedance: 8 Ω Frequency response: 300-8 kHz Sensitivity: 105 dB Housing: Color: Gray IP rating: IP66 Dimensions: 230 x 220 x 175 mm (LxWxH) Weight: 1,5 kg Design and product specifications are subject to change without prior notice.
- Page 8 ©2015 DAP Audio...
