Xycom XVME-500 Manual page 25

XVME-500/590 Manual
February, 1988
2.5.1 Base Address Selection Jumpers
The module base address is selected by using jumpers
Figure 2-2 for the locations on the board).
base-address jumpers and how each jumper relates to the address lines.
When a jumper is INSTALLED, the corresponding base address
However, when a jumper is REMOVED, the corresponding base address bit will be
logic '1'.
Table 2-2 shows a list of the 64 1K boundaries which can be used as module base
addresses in the Short I/O Address Space (as well as the corresponding jumper
settings for each address).
Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com
(526 - 531)

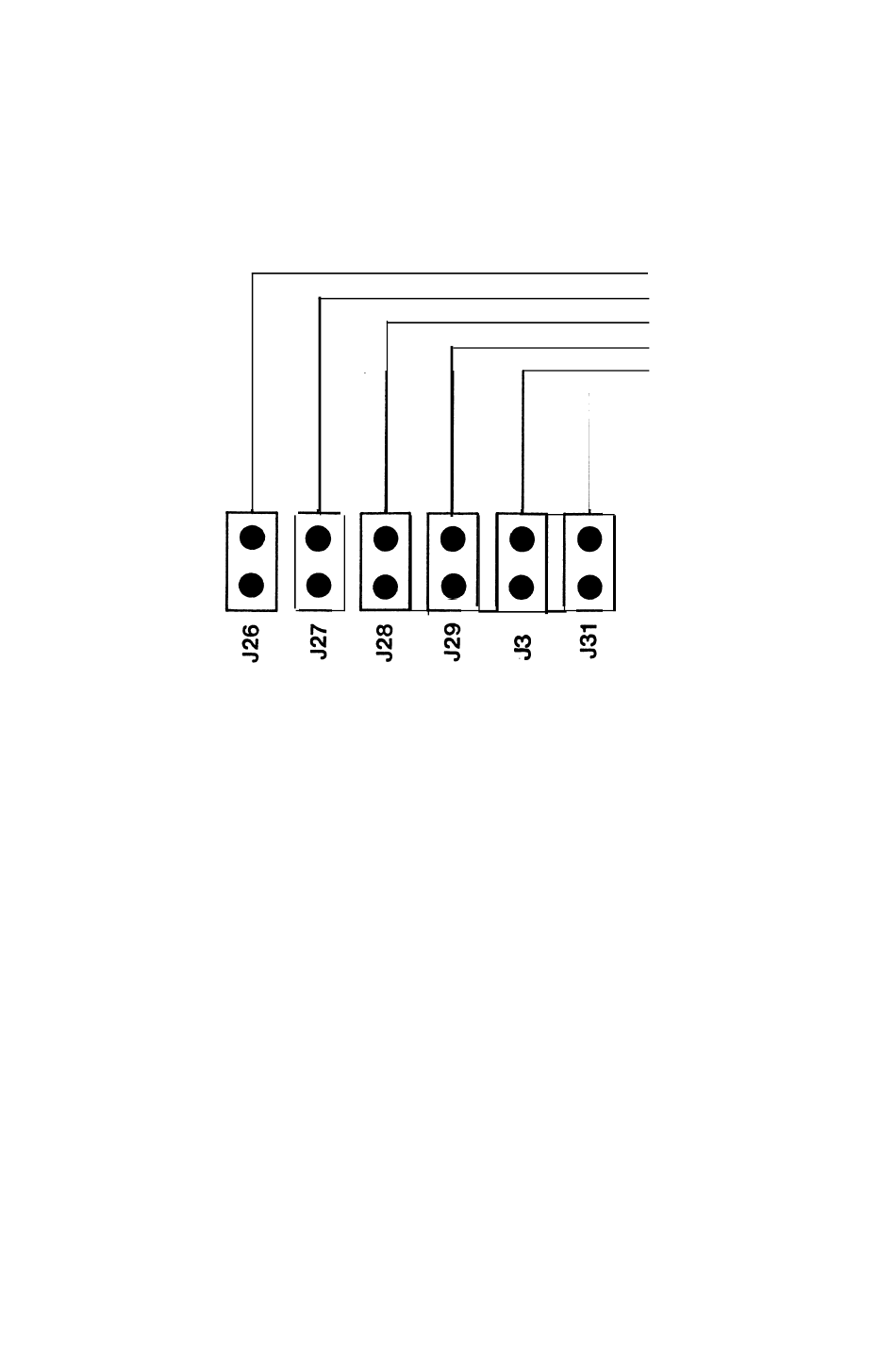

Figure 2-3. Base Address Jumpers
