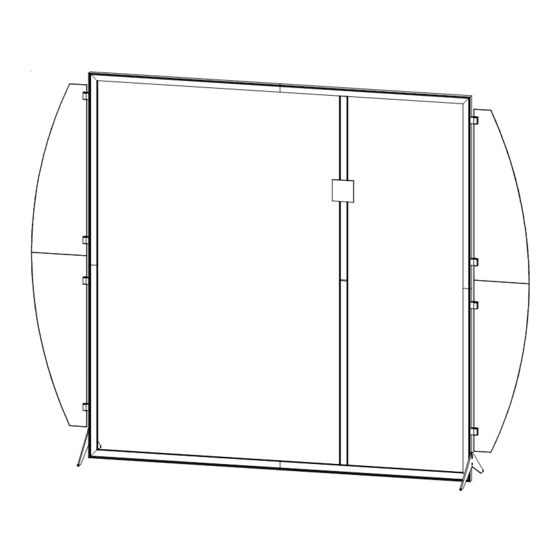

SEGUE VK-1907 Quick Start Manual

Order #XXXXX - VK-1907 - Graphic Frame Assembly
Item Description
1 45" SEG Extrusion
2 45" SEG Extrusion
3 45" SEG Extrusion
4 45" SEG Extrusion
5 45" SEG Extrusion
6 45" SEG Extrusion
7 45" SEG Extrusion
8 45" SEG Extrusion
9 43.2085"h Extrusion
10 43.2085"h Extrusion
A10 Clamp Attachment
2
A10
Slide connector on back
Clamp
of A10 clamp into groove
of extrusion.
When desired location
is found, tighten
set screw to secure.
*
Tighten knob to
secure shelf in place.
w w w . c l a s s i c e x h i b i t s . c o m

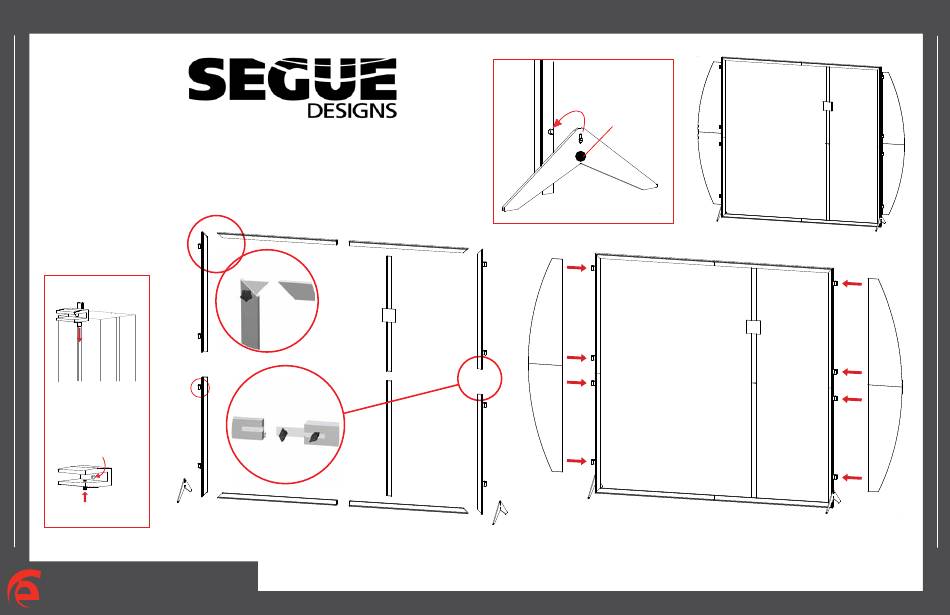

Setups:
1) Assembled SEG extrusions together on floor.
2) Apply SEG graphic to assembled frame.
3) Attach feet to both sides of assembled frame
where indicated.
4) Attach wing panels to A10 clips as shown.
7
Corner
Tighten knob
to secure
Center
Slide connecting
bar between
verticals/horizontals
1
and tighten knob
to secure
5
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Hook keyhole cut
out up bolt
8
4
10
9
3
*
6
**** See attached SEG graphic
installation for graphic attachment
Tighten Knob
to secure
*
Foot Attachment
Monitor
Mount
Step 1
866.652.2100
When assembled
© 2012
