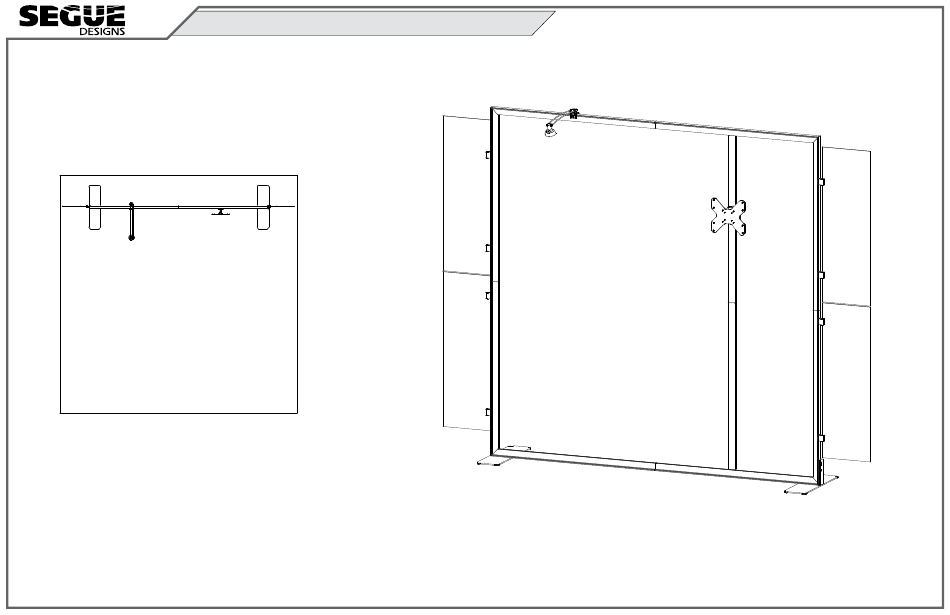

- Page 1 © 2024 Order #XXXXX VK-1907 Sunrise - 10’ x 10’ Display 10’ 10’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: General Setup Instructions
© 2024 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 3 © 2024 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 4 © 2024 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 5 © 2024 Order #XXXXX Case Packing Top View of Each Level 9 10 Lights Base Plate Wings Graphics Setup Hardware Base Plate Monitor Mount Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 1...
-
Page 6: Back View

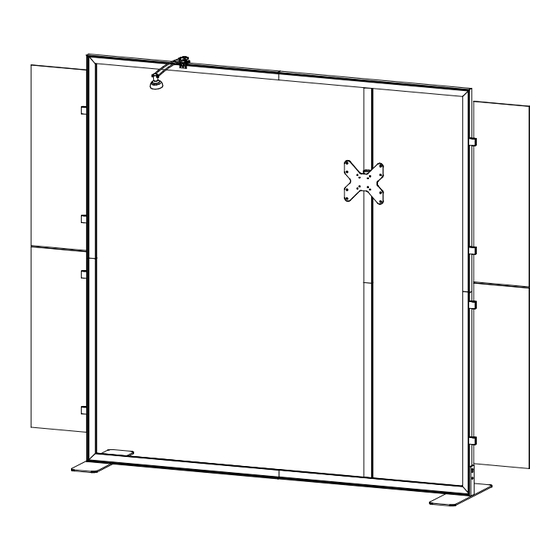

© 2024 Order #XXXXX Backwall Assembly Item Qty. Description Steps: 45”h TSP46 Vertical Extrusion w/ A10 clamps Refer to the Tool-less Frame Assembly general information page. 45”h TSP46 Vertical Extrusion w/ A10 clamps 45”h TSP46 Vertical Extrusion w/ A10 clamps 1) Assemble extrusion [1-2], [3-4], [5-6], [7-8], [9-10] together using straight connectors. - Page 7 © 2024 Order #XXXXX Monitor Mount Attachment Steps: 1) Connect Monitor Mount to vertical assembly [9/10]. Monitor Mount Attachment detail. Completed Assembly Monitor Mount Attachment A ttach Monitor Mount back piece to vertical extrusion using bolts. Then slide monitor mount into back piece as shown.
