SEGUE VK-1904 Quick Start Manual

© 2020
Order #XXXXX
Item Qty. Description
1,2,3,4 1,1,1,1 45" TSP46 Vertical Extrusion
5,6,7,8 1,1,1,1 45" TSP46 Horizontal Extrusion
9 2 Base Plate

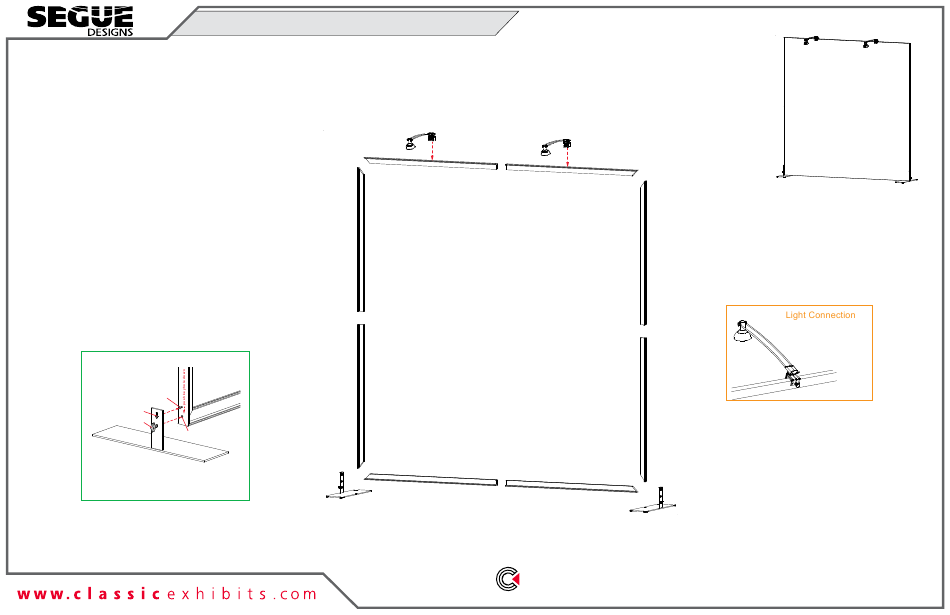

Setups:
See TSP46 Assembly sheet for steps 1 thru 3.
1) Connect horizontals [5 to 6] and [7 to 8].
2) Connect verticals [1 to 2] and [3 to 4].
3) Connect horizontal and vertical assemblies together.
4) Attach base plates to verticals [1] and [3].
See Base Plate Attachment detail.
5) Install SEG graphics to assembled frame. See SEG
Installation sheet, for instruction.
6) Clamp lights to top of frame assembly. See
Connection detail.
Attach base plate knob to extrusions
[1] and [3], when packing.
*
Base Plate Attachment
Assembled
Frame
Fixed
Bolt
Key Hole
Knob
Threaded
Hole
Base Plate
1) Place key hole over fixed bolt on assembled
frame then slide down.
2) Turn knob into assembled frame to secure.
VK-1904 Sunrise
2
Light
1
*
9
*
*
7
8
5
6

SETUP INSTRUCTIONS

If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

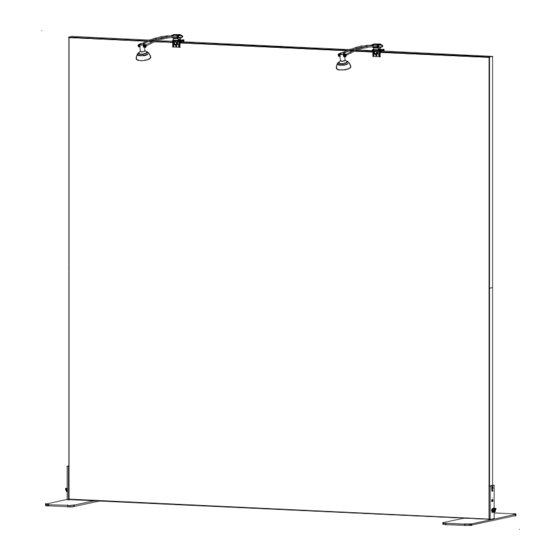

Completed Assembly
4
*
Connect light to
horizontal where
desired and
tighten in place.
3
*
9
