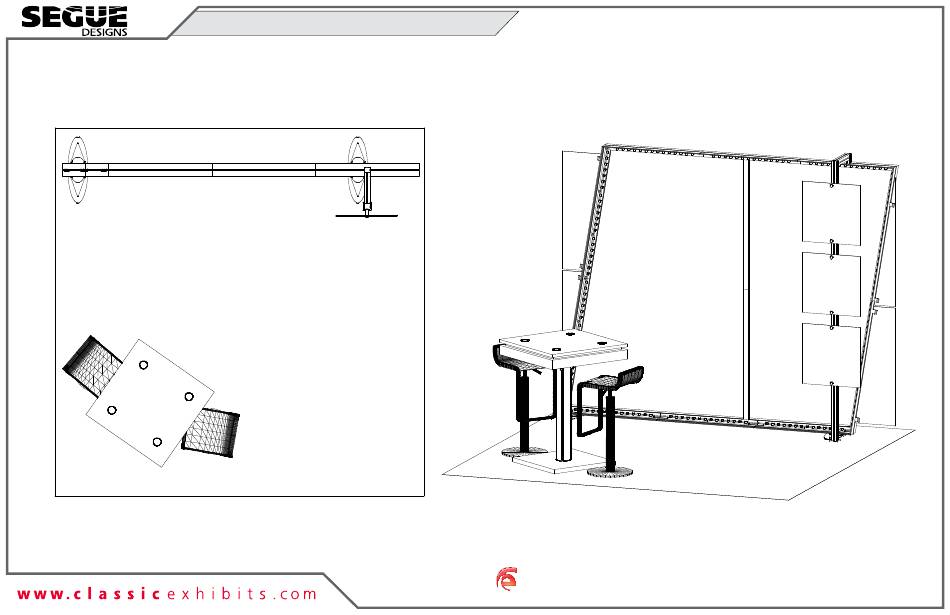

- Page 1 © 2020 Order #XXXXX VK-1962 Supernova 10’ 10’ Top View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: General Setup Instructions
© 2020 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 3 © 2020 SEG Installation Order #XXXXX 1) Locate channels along the edges of extrusions Fold edges over. 2) Insert graphic corners first into channels then center point of graphic into channels. Allows for proportional fit around the perimeter of the extrusion. 3) Working from center to corner, slide silicon edge Insert into on graphic into channel.
- Page 4 © 2020 Order #XXXXX CEI110 Frame Assembly Corner Connection Corner Bracket Assembly 1) Slide TWO-PIECE TS RV 2 L-bracket into Upper Interior Center Slot of extrusion so that two Horizontal set screws are inside groove. Tighten two set screws to secure. Upper Slide verticals over Horizontal...
- Page 5 © 2020 Order #XXXXX Case Packing Top View of Each Level Graphics Setup Hardware Graphics & Wings 9,9A Base Plates Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 1 of 1...
- Page 6 © 2020 Order #XXXXX Crate Packing Crate 1 of 1...
- Page 7 © 2020 Order #XXXXX VK-1962 Frame Assembly Item Qty. Description Steps: 1,1A 33.6754” CEI110 Horizontal Extrusion 1) Assemble [1,2,3] [1A,2A,3A] [4,5] and [4A,5A] together with straight brackets. 2,2A 33.6753” CEI110 Horizontal Extrusion See CEI110 Frame Assembly sheet Straight Bracket Assembly details. 3,3A 33.6753“...
- Page 8 © 2020 Order #XXXXX VK-1962 Frame Attachments Steps: 1) Attach wings to A10 clamps. See A10 Clamp detail. 2) Attach graphics to vertical extrusion, using standoffs and screw caps. 3) Install SEG graphic to front of assembled frame and SEG blocker fabric to back. See SEG Graphic Installation sheet for instruction.
- Page 9 © 2020 Order #XXXXX Modified MOD-1454 Table Assembly Steps: 1) Connect base to post, using bolt. 2) Route cord from table top through post and base. 3) Connect table top to post, with fixed brackets, using black bolts. Table Top Completed Assembly Black Bolt...
